Phidgets
Dial Phidget
SKU:
Phidgets-HIN1101_0
Rs. 1,729.00
Taxes included.
Shipping calculated at checkout.
Description

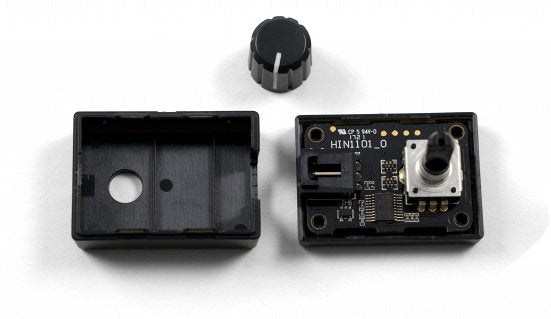

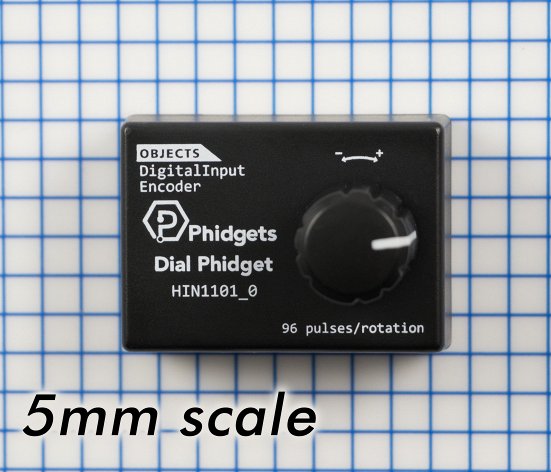

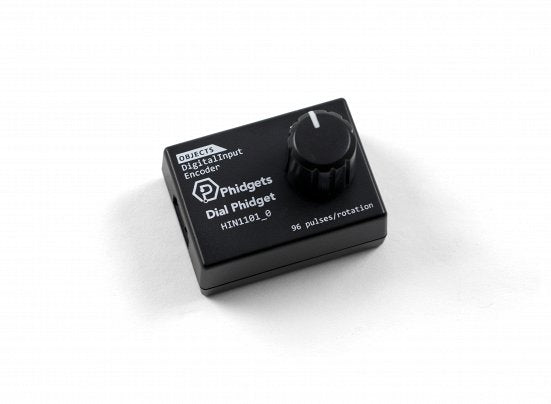

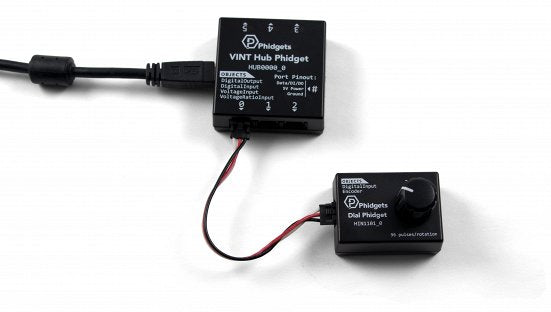

The HIN1101 combines a dial and a center pushbutton. It uses an optical encoder, so it has fully continuous rotation with none of the dead zones or physical wear that potentiometer-based dials have. The HIN1101 connects to a port on a VINT Hub. This Phidget connects to your computer through a VINT Hub.
Features:
- Continuous rotation dial
- Center push button
Product Specifications
| Board | |
|---|---|
| Controlled By | VINT |
| Electrical Properties | |
| Current Consumption (Unconfigured) | 18 μA |
| Current Consumption Max | 2.5 mA |
| Encoder Properties | |
| Encoder Resolution | 96 PPR |
| Timing Resolution | 0.00013 s |
| Physical Properties | |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
| Customs Information | |
| Canadian HS Export Code | 8471.80.00 |
| American HTS Import Code | 8471.80.40.00 |
| Country of Origin | CN (China) |
