OpenMV Cam LCD Shield
DFR0834
₹ 1,989.00
Taxes included.
Shipping calculated at checkout.
Description
INTRODUCTION

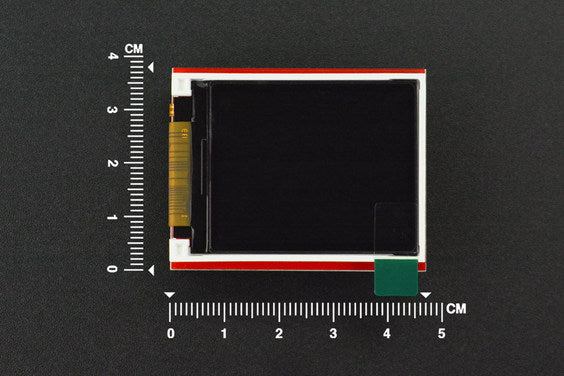

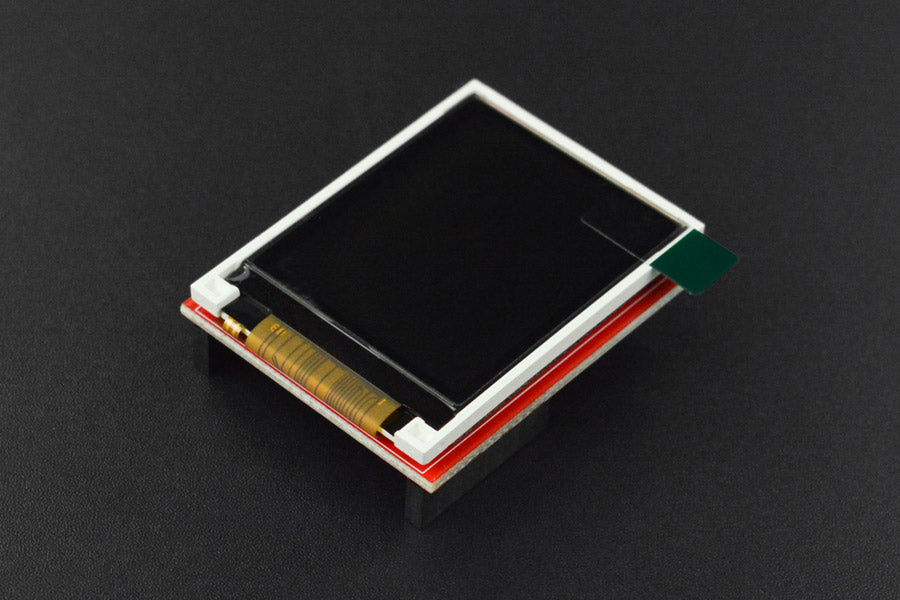

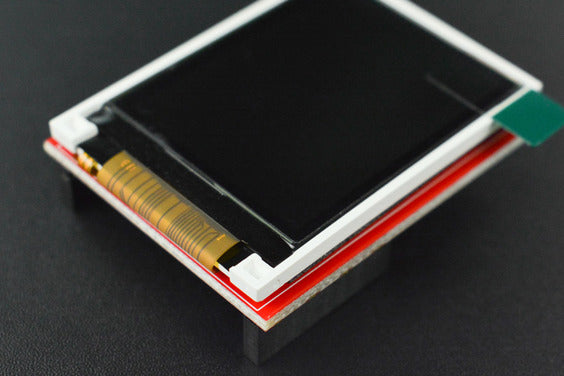

OpenMV CAM LCD Expansion Board is an LCD Expansion Board customized for OpenMV CAM. It allows your OpenMV CAM to display what it sees on-the-go without connecting to your computer. The OpenMV CAM LCD Expansion Board features a TFT LCD display with RGB color lights and a controllable backlight. It can clearly display the picture captured by OpenMV CAM.

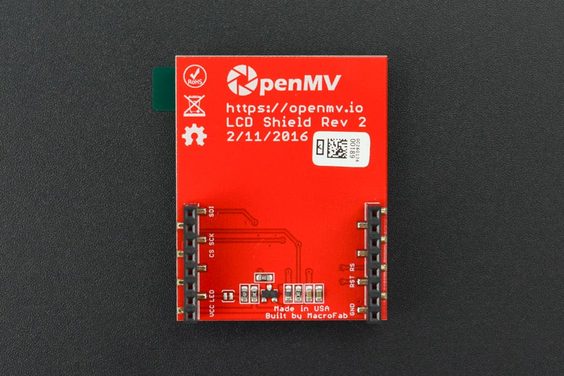

Pins function
|
P0 |
SPI data in |
|
P1 |
NC |
|
P2 |
SPI clock. |
|
P3 |
SPI chip select (10K pull-up) |
|
P4 |
NC |
|
P5 |
NC |
|
P6 |
LED control. |
|
3.3 |
3.3v input |
|
RST |
NC |
|
BOOT |
NC |
|
SYN |
NC |
|
P9 |
NC |
|
P8 |
RS |
|
P7 |
RESET |
|
VIN |
NC |
|
GND |
GND |
SPECIFICATION
- Power Consumption
- Idle Backlight Off: < 1mA @ 3.3V (> 100mA w/ Cam)
- Idle Backlight On: 30mA @ 3.3V (130mA w/ Cam)
- Active Backlight Off: 10mA @ 3.3V (150mA w/ Cam)
- Active Backlight On: 40mA @ 3.3V (180mA w/ Cam)
- Temperature Range
- Storage: -30°C to 80°C
- Operating: -20°C to 70°C
- Screen Type: 1.8" TFT LCD
- Horizontal Resolution: 128 pixels (28.03mm)0.18mm pixel pitch
- Vertical Resolution: 160 pixels (35.04mm)0.18mm pixel pitch
- Display Colors: 64K 16-bit RGB565
- Weight: 13g
- Length: 48mm
- Width: 38mm
- Height: 13mm
SHIPPING LIST
- OpenMV Cam LCD Shield x 1
