DFRobot

micro:Maqueen Plus with HUSKYLENS and micro:bit V2

Name: micro:Maqueen Plus with HUSKYLENS and micro:bit V2
Brand: DFRobot
SKU: DFR-MBT0021-EN-2
Price: 13999.00 INR
Availability: OutOfStock

SKU:DFR-MBT0021-EN-2

Rs. 13,999.00

~~Rs. 0.00~~ Rs. 13,999.00

Sale Sold out

Taxes included.

Quantity

Out of stock

micro: Maqueen Plus is an advanced version of micro:Maqueen Lite (4.0), which is more powerful and intelligent. Optimized with better power management and larger capacity power supply, it can be perfectly compatible with HuskyLens AI Vision Sensor, which makes it an accessible AI robot teaching tool. In addition, micro:Maqueen Plus comes with a larger and more stable chassis, more built-in functions and more expansion ports, it is not only suitable for classroom teaching, but also can be suitable for after-school extended exercises and robot competitions.

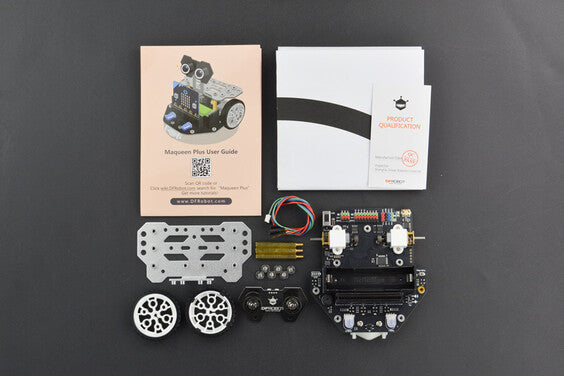

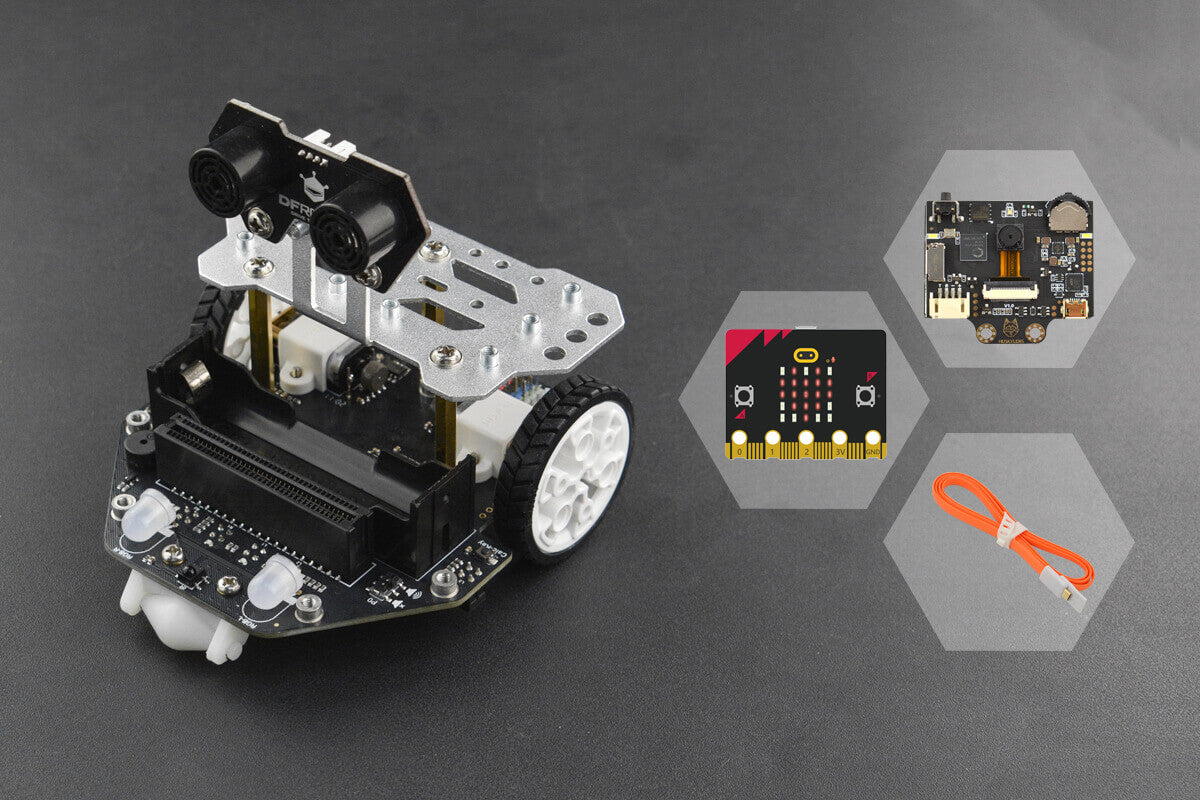

(Note: This product include micro: Maqueen Plus,Gravity: HUSKYLENS, micro:bit board V2, batteries is not included.)

Maqueen, K12 STEM Edu robot, micro: bit

What is micro: Maqueen Series?

micro: Maqueen launched by DFRobot is a series of educational robot products for primary and secondary school programming. It includes a cost-effective “Lite”version, a powerful “Plus” version, and rich peripherals such as “Mechanic”. You can choose different versions and peripherals based on your needs.

Maqueen, K12 STEM Edu robot, micro: bit

Selection Guide for micro:Maqueen series

Name	micro: Maqueen Lite	micro: Maqueen Plus
Power supply	3 AAA Batteries or CR123A Lithium battery (600~800mA)	18650 Li-ion battery (2300mA~2500mA)
Charging circuit	×	√
Power display	×	√
Encoder and PID control	×	√
Support for installing Huskylens AI camera	×	√
Support for line-tracking sensor calibration	√	√
Support for analog reading of line-tracking sensor	×	√
Number of line-tracking sensor	2	6
Number of IO expansion port	4	12
Number of servo port	2	3
Number of mechanic expansion thread	2	16
Motor rated rotation speed	133 rpm	260 rpm
LED color	Red LED	Large size RGB LED with 7 colors
Ultrasonic Model	H-SR04	DFRobot high-quality URM10 ultrasonic sensor
Continuous usage time with Huskylens	30min	180min
Standard continuous usage time	8h	24h
Come with line-tracking map	×	√
Onboard IR receiver and buzzer	√	√
Onboard WS2812 RGB LED	√	×
Application Scenario	Entry level classroom teaching	Intermediate level teaching, after school workshop, robot competition

What makes micro:Maqueen Plus so powerful?

High Capacity Lithium Battery

Powered by18650 high capacity lithium battery.
Onboard charging circuit and battery indicator.

High Capacity Lithium Battery

Competition-level Sensors

6 line tracking sensors to allow complex routine programs and complicated maze algorithms.
Supports analog readings and sensor calibrations with only one key.

Rich Extension Interfaces

9 GPIO expansion ports, 3 I2C extension ports, 3 servo expansion ports.
12 M3 threaded connections.
Fully compatible with micro: Maqueen Mechanic and HuskyLens AI vision sensor.

Rich Extension Interfaces

High Speed Metal Motor

• 260 RPM high speed metal motor; higher travel speed and well suitable for robot competitions.

High Speed Metal Motor

Motor with Encoder and PID Control

2 encoders to read real-time speed and direction, thus multiple cars running in the same map can be smoother.
PID control for a stronger moment force in low speed.
