Cmod C2: Breadboardable CoolRunner-II CPLD Module

Description

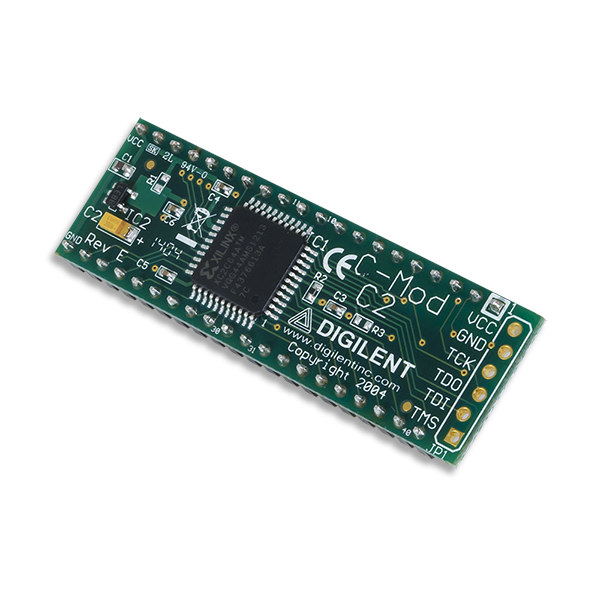

The Cmod board combines a Xilinx^® CoolRunner™-II CPLD, a JTAG programming port, and power supply circuits in a convenient 600-mil, 40-pin DIP package. Cmods are ideally suited for breadboard or other prototype circuit designs where the use of small surface mount packages is impractical.

Stats:

Processor/IC: Xilinx CoolRunner-II CPLD (64 Macrocells)

Connector(s): 40-pin wide DIP

Programming: JTAG programmable

Features:

• Xilinx CoolRunner-II CPLD (64 Macrocells)
• 40-pin wide DIP
• Compatible with the free Xilinx WebPACK™ tools
• Once programmed, CPLD designs are non-volatile
• All available user I/O signals are brought out to DIP pins
• Adequate bypass capacitance on all CPLD voltage supply pins
• Requires a single 3.3V supply voltage

What's Included:

• Cmod board

• Custom Digilent cardboard box with protective foam
