Atlas Scientific
Spike Tip Temperature Probe
AS-PT-SPIKE
₹ 2,279.00
Sale price
₹ 2,279.00
Regular price
Taxes included.
Shipping calculated at checkout.
Description

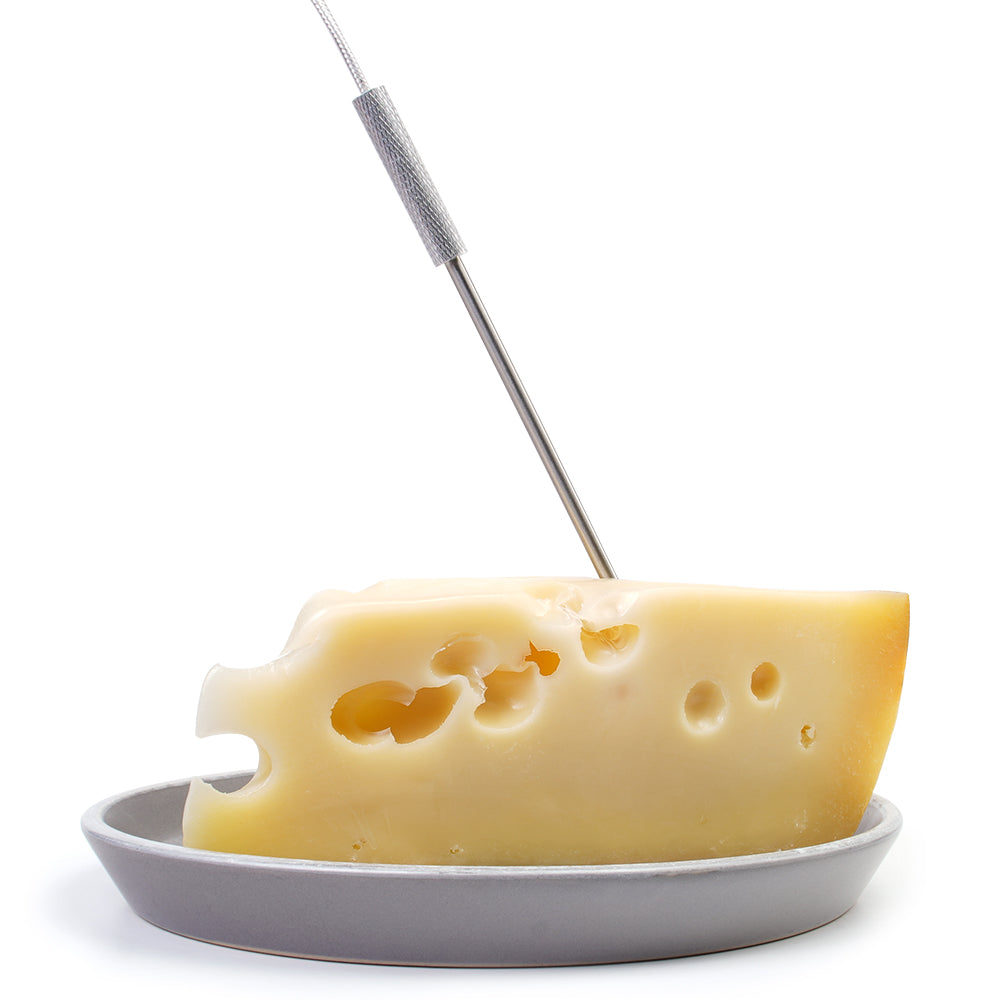

The Atlas Scientific Spike Tip Temperature probe is a Class-B platinum RTD temperature probe. This probe has a long, thin body making it perfect for impaling into the Earth or food. The 304 stainless steel body makes this probe food safe, and quickly conducts heat from the environment to the platinum sensor inside, giving you low latency, high accuracy readings.
Specifications
| Reads | Temperature |
| Probe type | Class B platinum, RTD |
| Range | -50 ̊C to 200 ̊C |
| Accuracy | +/- (0.3 + (0.005*t)) |
| Reaction time | 90% in 10s |
| Body | Stainless Steel 304 |
| Cable length | 1m (3.2′) |
| Cable material | Teflon |
| Connector | Male SMA |
| Output | Resistance (Analog) |
| Life expectancy | 15 years |
Documents & Downloads
-
Spike Tip Temperature Probe Datasheet -
RoHS Certificate -
CE Certificate
