Atlas Scientific
Electrically Isolated EZO™ Carrier Board
SKU:
AS-ISCCB-2
Rs. 3,189.00
Taxes included.
Shipping calculated at checkout.
Description

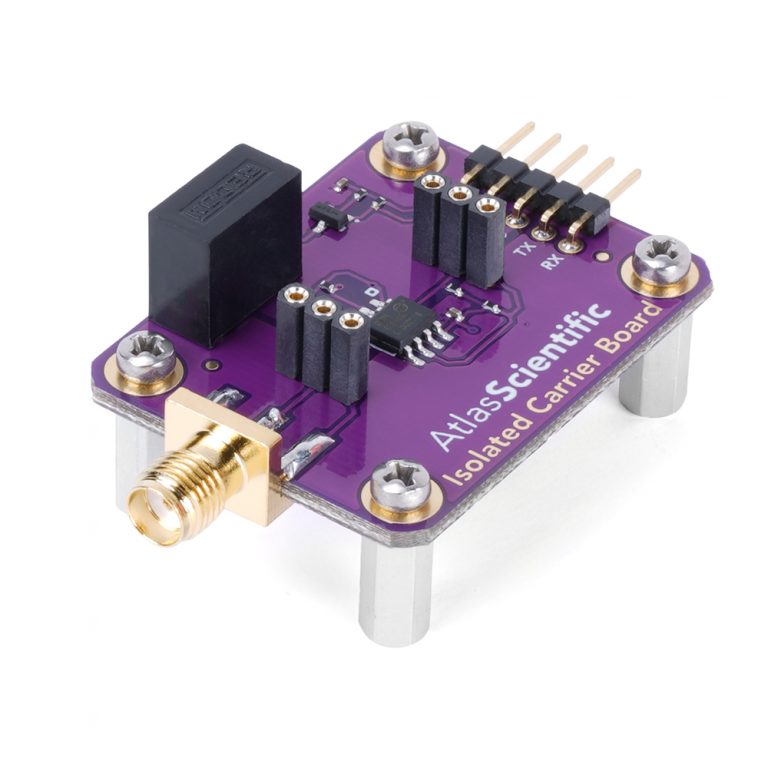

This carrier board utilizes the newest isolation technology, giving us the ability to put isolation into smaller footprint circuits. The Electrically isolated EZO™ carrier board is an efficient way to connect to one Atlas Scientific circuit to your CPU, eliminating the need for a bread board and external isolator. The five pins on top are left open for you to decide how to connect it to your system.
| Data input | UART or I2C |
| Voltage input | 3.0V − 5.0V |
| Probe connector | Female SMA |
| Current consumption | 5V – 28 mA 3.3V – 22 mA |
| Power saving mode (OFF pin) | 2.6mA |

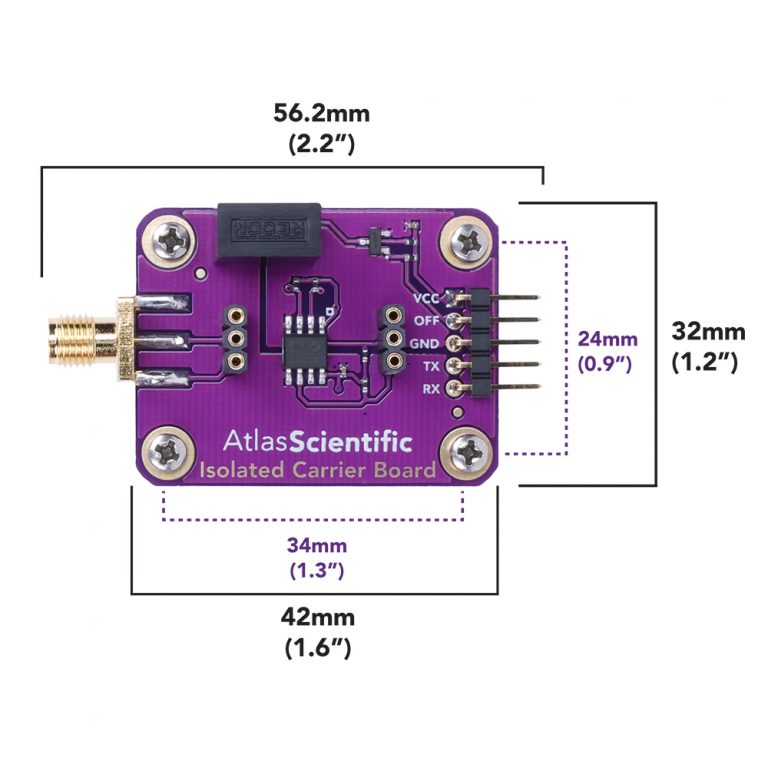

| Carrier Board dimensions | 56.2mm x 32mm (2.2″ x 1.2″) |
| Weight | 25 grams |

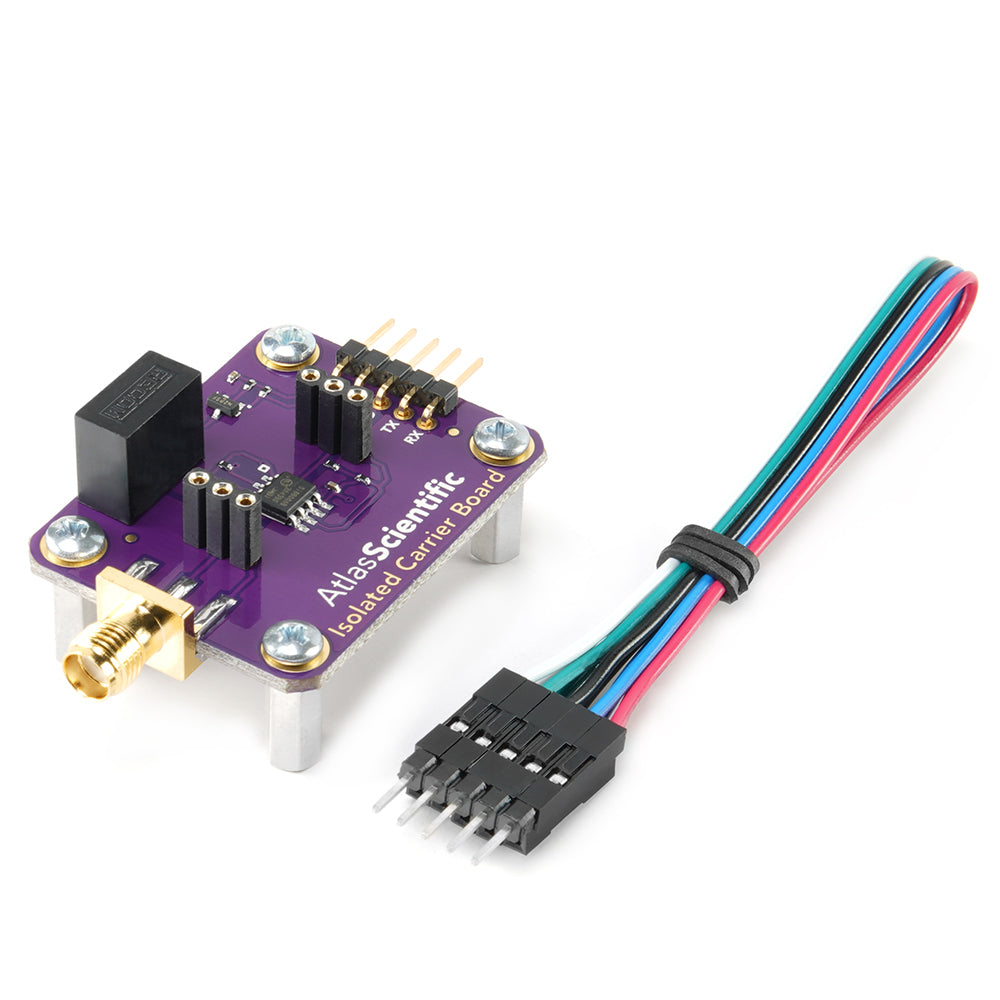

| This carrier board comes with (4) standoffs & screws, (1) 5 pin jumper cable and (1) 5 pin male header |
|
| The Electrically Isolated EZO™ Carrier Board does not come with EZO™ class devices. |
