Atlas Scientific

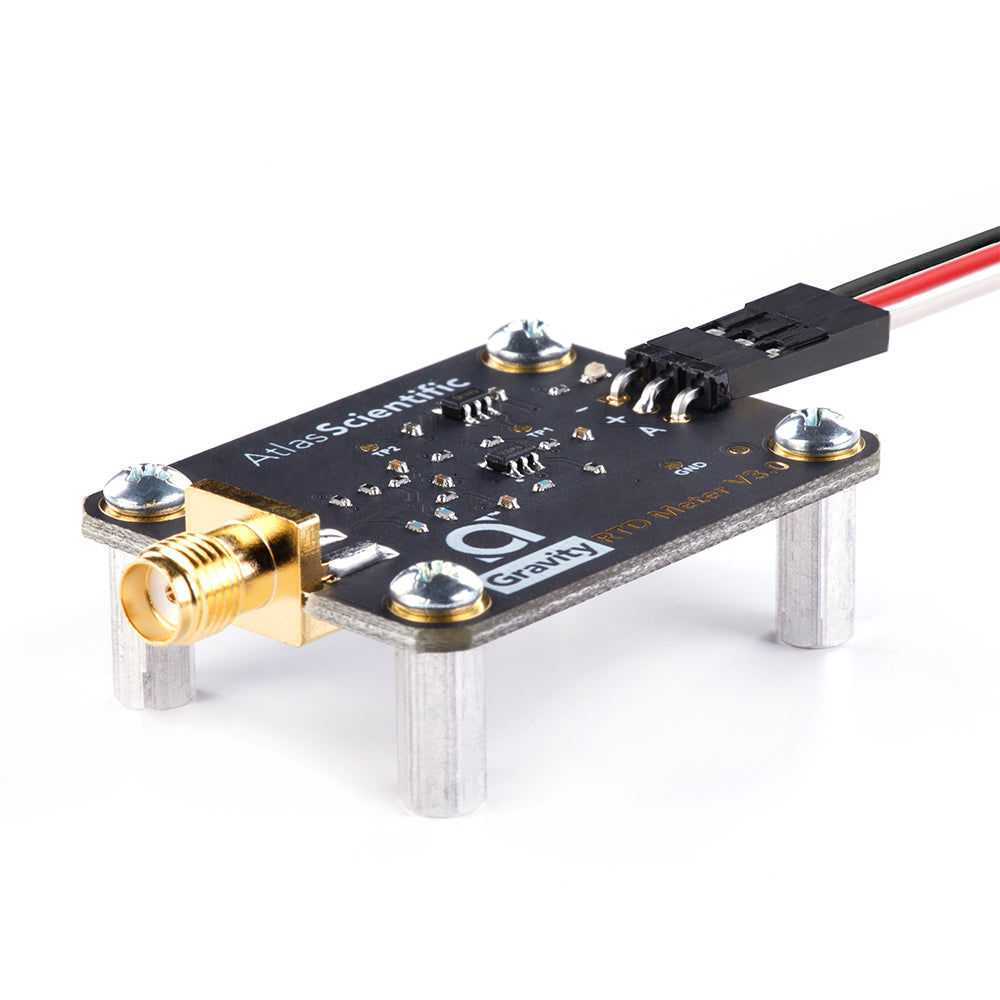

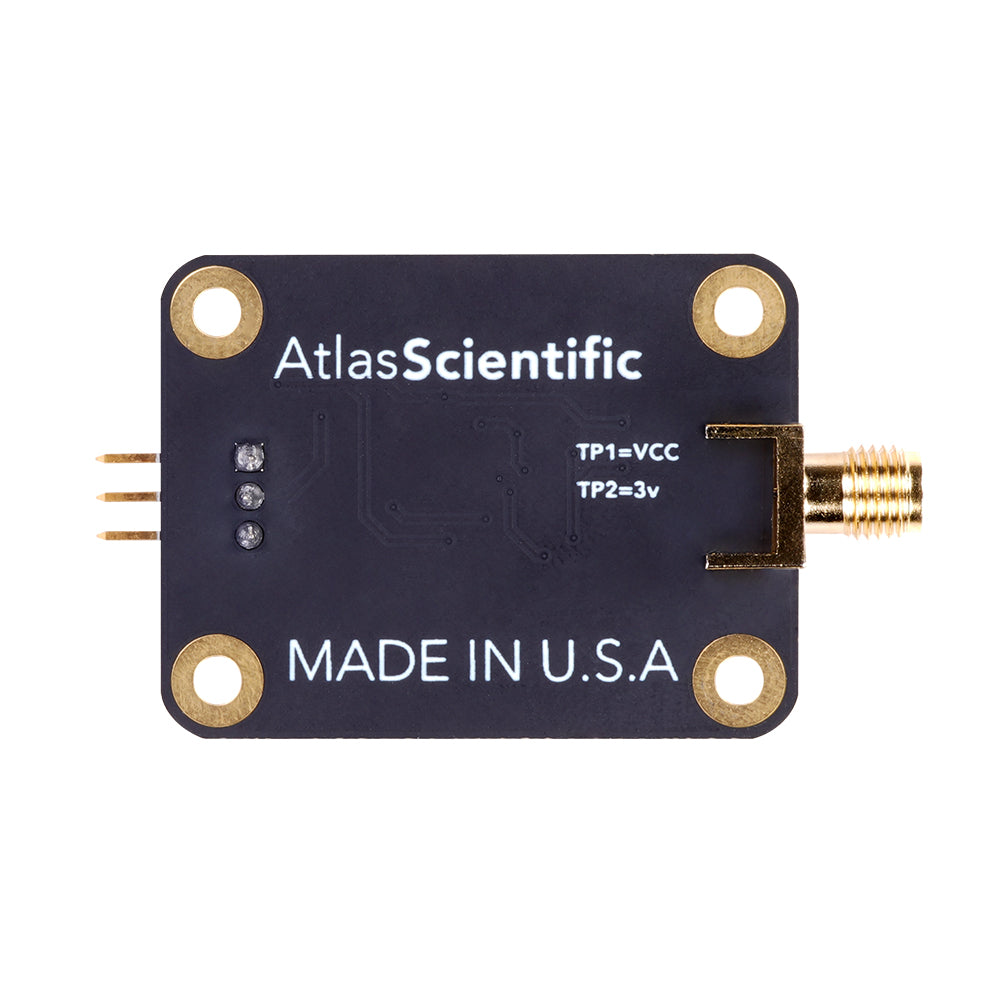

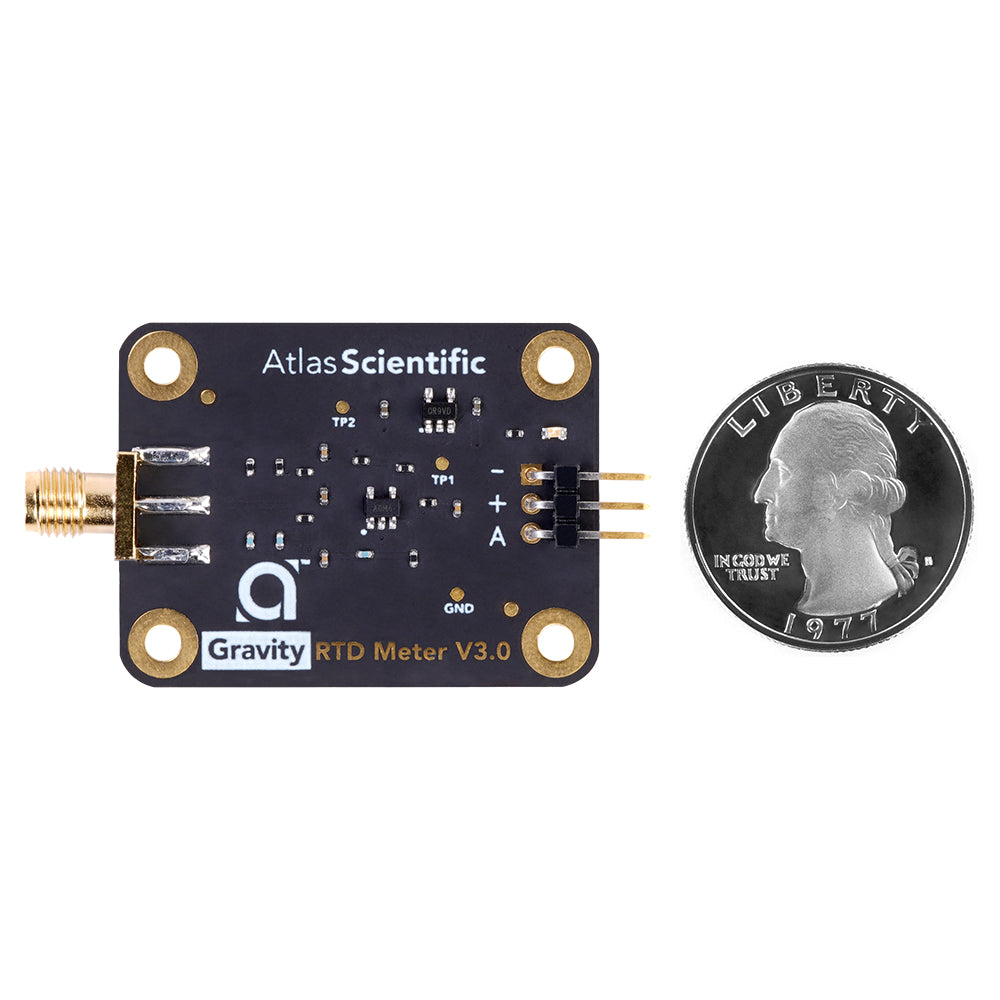

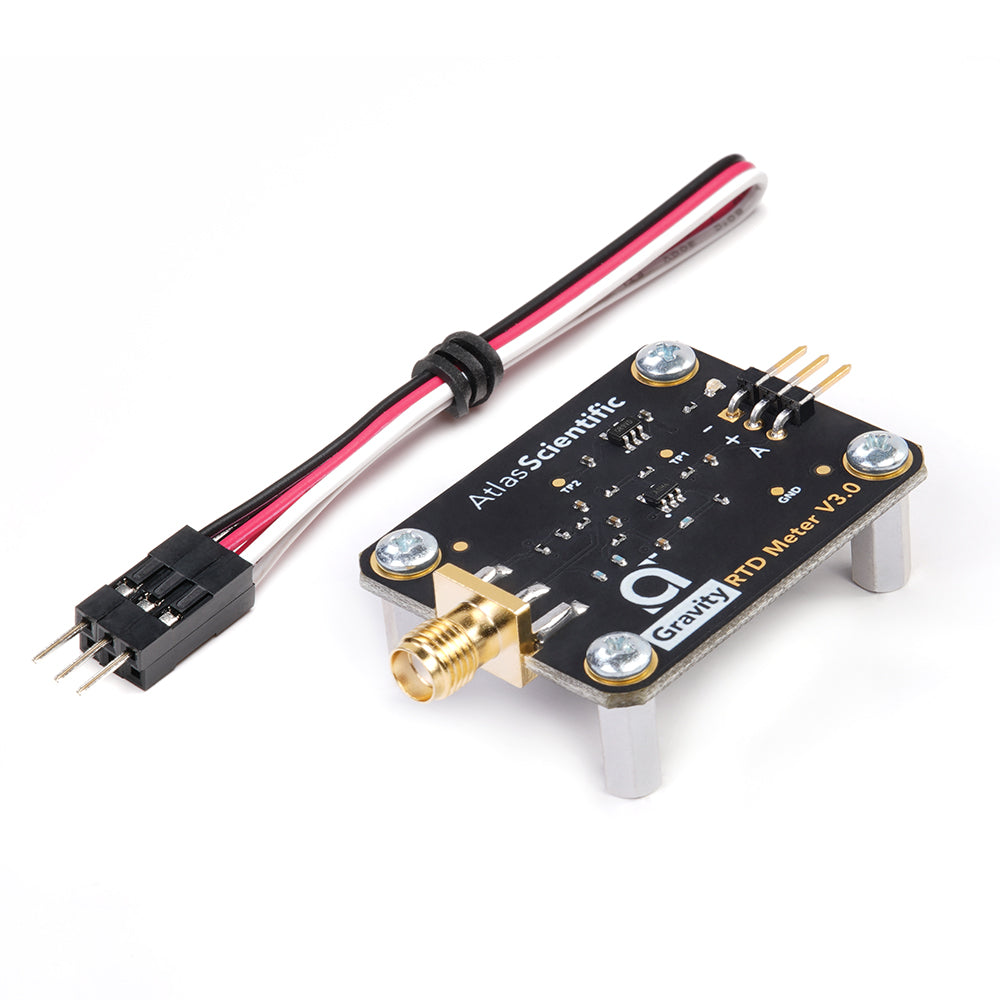

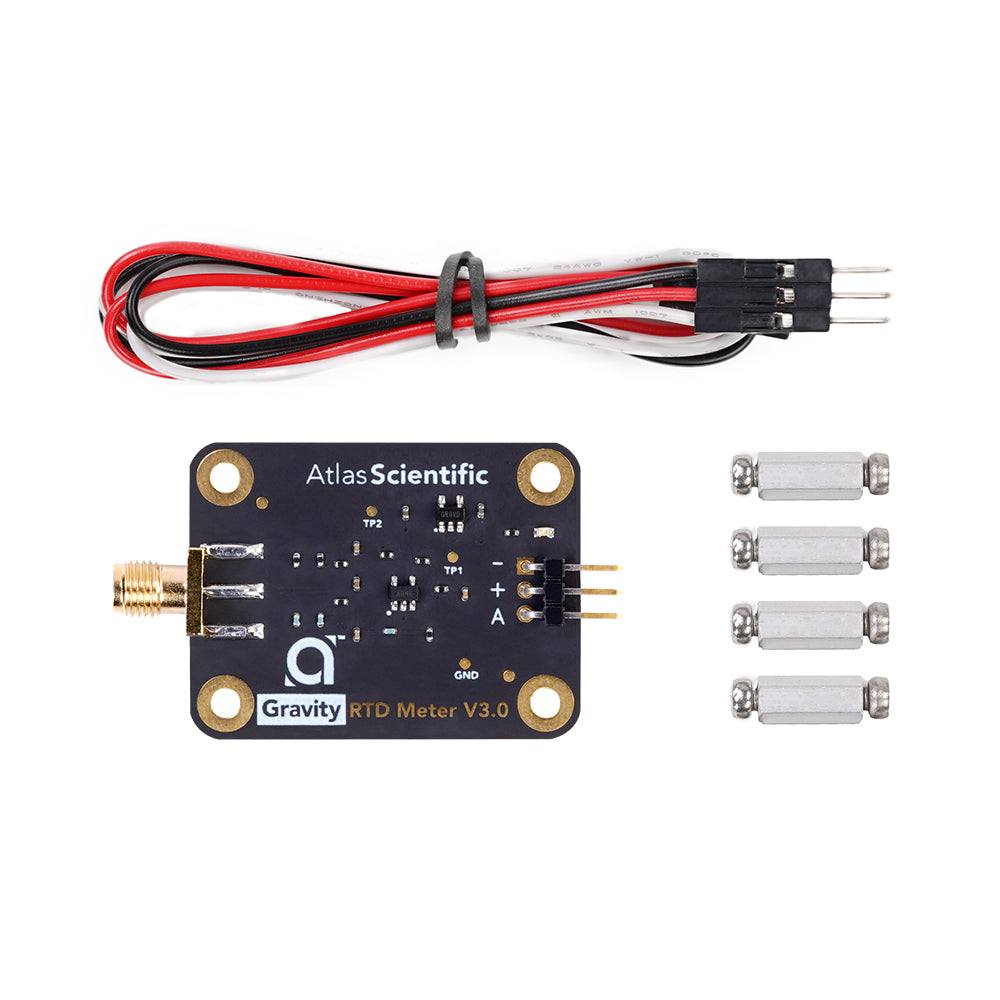

Surveyor™ Analog Temperature Sensor / Meter
SKU:
AS-GRV-RTD
Rs. 2,089.00
Taxes included.
Shipping calculated at checkout.
Description
Platinum temperature sensors provide the highest level of stability and repeatability. The Atlas Scientific Gravity Analog Temperature Meter is an analog temperature sensing solution that gives consistent readings over the life of your machine. Compatible with any off-the-shelf PT-1000 sensor, this drop-in component makes complex temp sensing easy.
Specifications
| RTD | Resistance Temperature Detector |
| Reads | Temperature |
| Range | -100°C − 220°C |
| Accuracy | +/– 0.5 °C |
| Response time | Continuous analog output |
| Supported probes | Any type & brand of PT-1000 RTD |
| Calibration | Optional |
| Temperature output | °C |
| Data protocol | Analog 0 − 3V |
| Operating voltage | 3.3V − 5.5V |
| Dimensions | 56.2mm x 32mm (2.2″ x 1.2″) |
| Weight | 13 grams |
Documents & Downloads
-
Gravity™ Analog Temperature Sensor / Meter Datasheet -
Arduino Sample Code -
RoHS Certificate -
CE Certificate
