Atlas Scientific

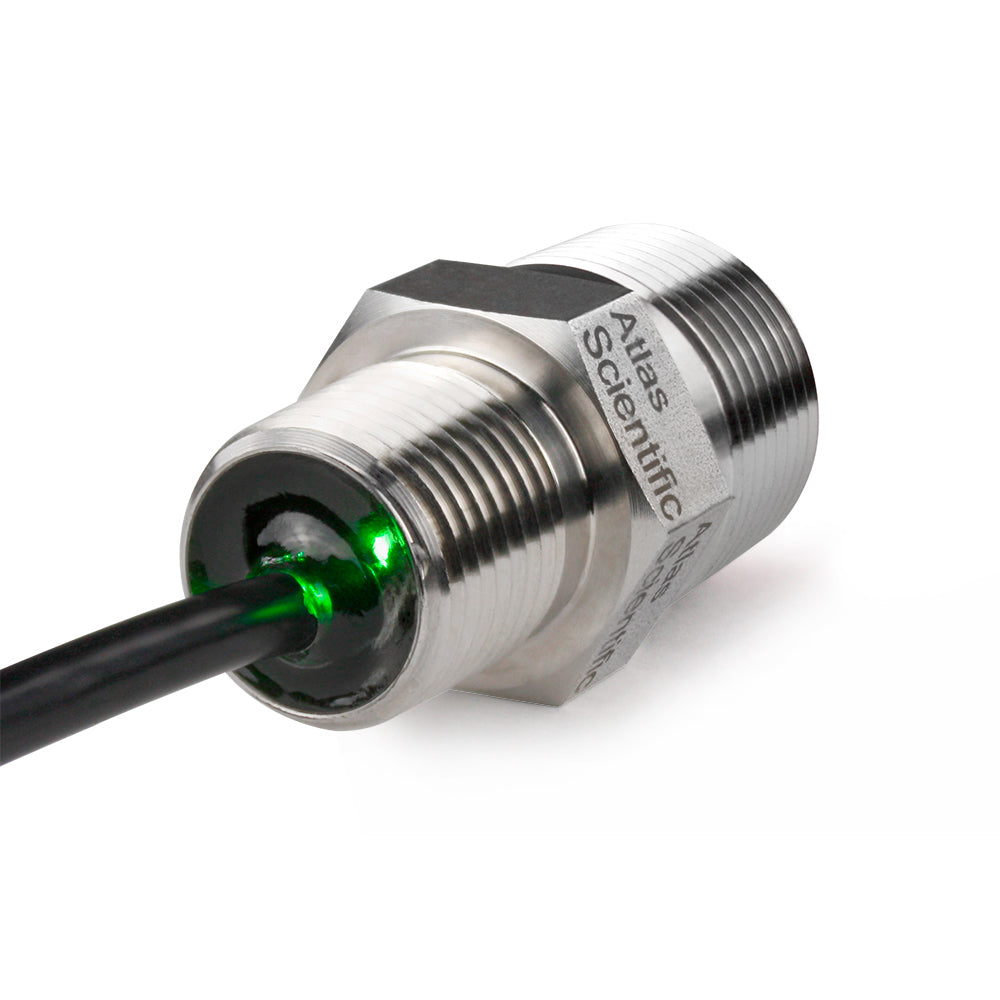

Atlas Scientific EZO-HUM™ Embedded Humidity Probe – Stainless Steel Body
SKU: AS EZO-HUM-P-S
₹ 12,239.00
Taxes included.
Shipping calculated at checkout.
Description
-
EZO-HUM™ Stainless Steel Body Probe Datasheet
-
Female connector information
-
RoHS Certificate
-
CE Certificate
-
Arduino Uno Sample Code
-
Arduino Mega / Giga Sample Code
-
Arduino I2C Sample Code
-
Raspberry Pi Sample Code (I2C)
From industrial processes to environmental monitoring, this humidity probe can be used in countless applications. Our stainless steel Humidity Probe is versatile and durable; Ideal for both indoor and outdoor humidity monitoring. The EZO Embedded Humidity Probe gives the same readings as our EZO-HUM Circuit. There is no difference in the readings or accuracy, only the design.
This probe comes fully calibrated and ready to use right out of the box.
The EZO-HUM-P-S™ comes with:

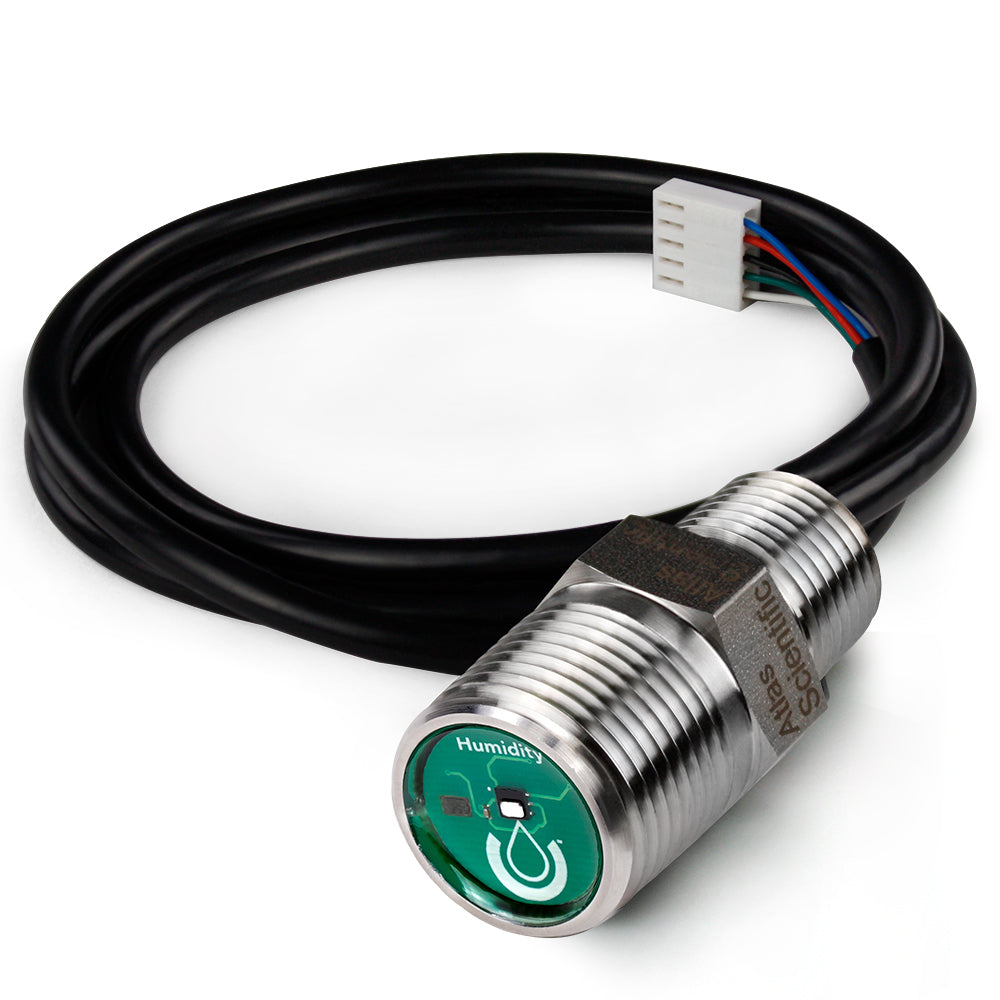

One embedded Humidity probe with stainless steel body, one data cable with 5 pin male header, and one Locknut & O-ring.
| Reads | Relative humidity (RH) |
| Dew point | |
| Air temperature | |
| Range | 0 – 100% RH |
| Calibration | Factory calibrated |
| Response time | 1 reading per second (UART mode) |
| 1 reading per 300 milliseconds (I2C mode) | |
| Accuracy | +/- 2% of reading from 5-95% RH |
| Body material | 316 stainless steel |
| Connector | 5 lead data cable |
| Cable length | 1 meter |
| Data protocol | UART & I2C |
| Default I2C address | 111 (0x6F) |
| Data format | ASCII |
| Operating voltage | 3.3V − 5V |
| IP rating | IP67 (waterproof up to 1 meter) |
| NEMA rating | 6P |
| Life expectancy | 10 years |
