Atlas Scientific EZO-HUM Embedded Humidity Probe

Atlas Scientific EZO-HUM Embedded Humidity Probe

SKU:AS-EZO-HUM-P

Regular price Rs. 12,099.00
Regular price Sale price Rs. 12,099.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

From industrial processes to environmental monitoring, this humidity probe can be used in countless applications. With a weather-resistant housing that allows for multiple mounting options, the EZO Embedded Humidity Probe is ready to go, whether you’re monitoring the humidity levels inside a home, workspace or even outside. The EZO Embedded Humidity Probe gives the same readings as our EZO-HUM Circuit. There is no difference in the readings or accuracy, only the design.

This probe comes fully calibrated and ready to use right out of the box.

The EZO-HUM™ comes with:

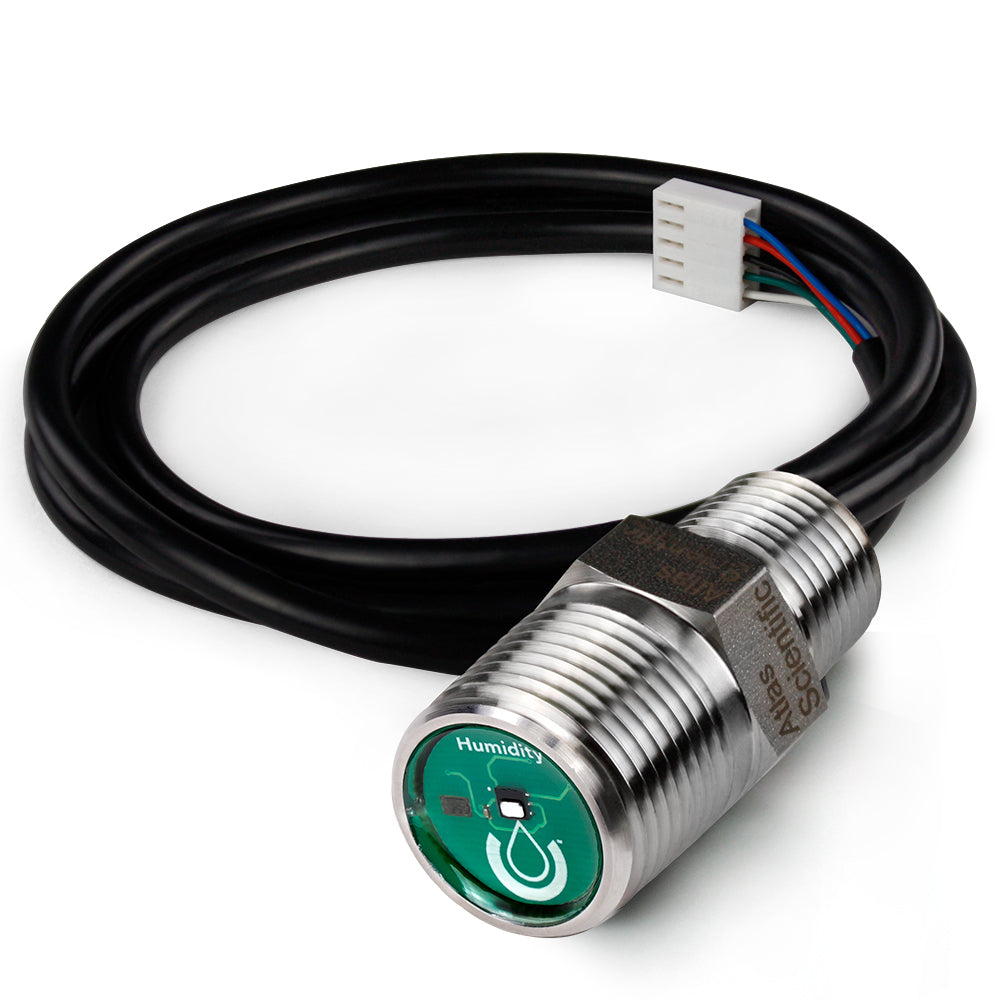

One embedded Humidity probe, one data cable with 5 pin male header, and one Locknut & O-ring.

Specification

Reads Relative humidity
Dew point
Air temperature
Range 0 – 100%
Calibration Factory calibrated
Response time 1 reading per second (UART mode)
1 reading per 300 milliseconds (I2C mode)
Accuracy +/- 2%
Connector 5 lead data cable
Cable length 1 meter
Data protocol UART & I2C
Default I2C address 111 (0x6F)
Data format ASCII
Operating voltage 3.3V − 5V
IP rating IP67 (waterproof up to 1 meter)
Life expectancy 10 years
