Atlas Scientific Industrial PT-1000 Temperature Probe
SKU:
AS-ENV-50-TMP
Rs. 8,279.00
Taxes included.
Shipping calculated at checkout.
Description

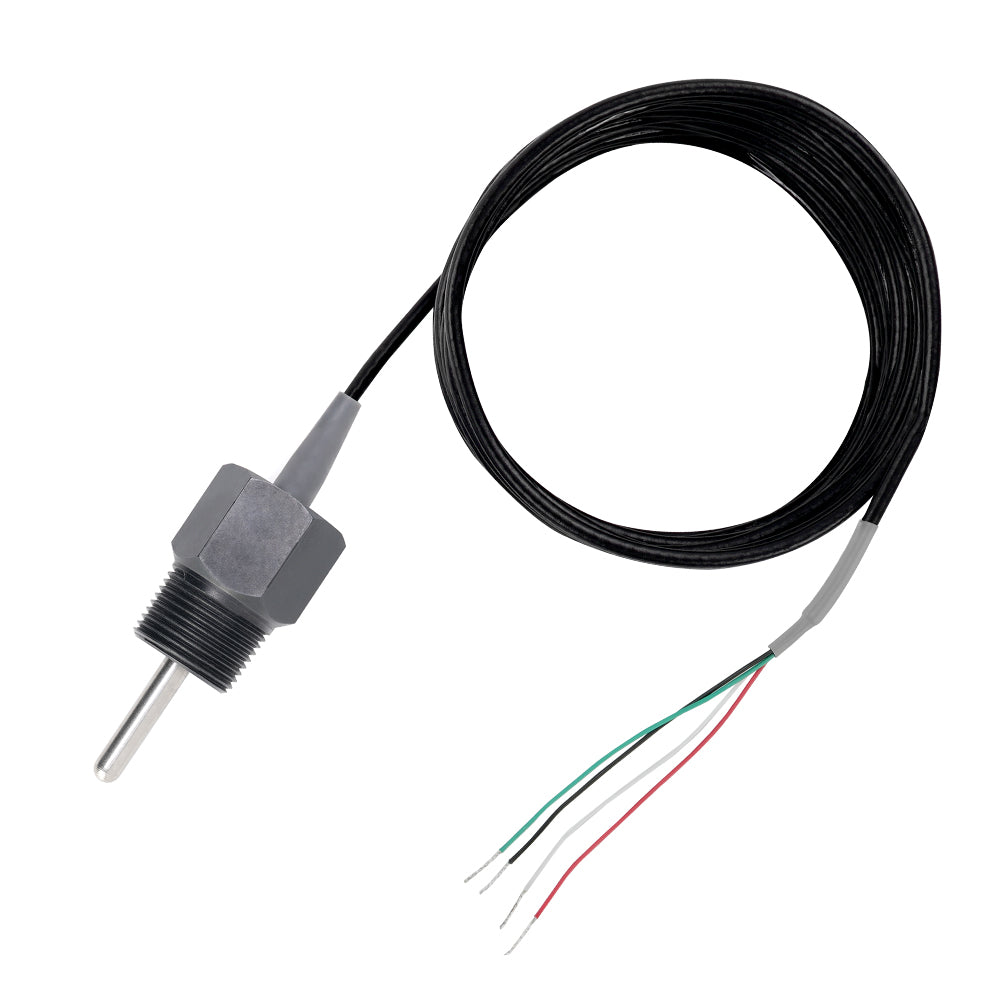

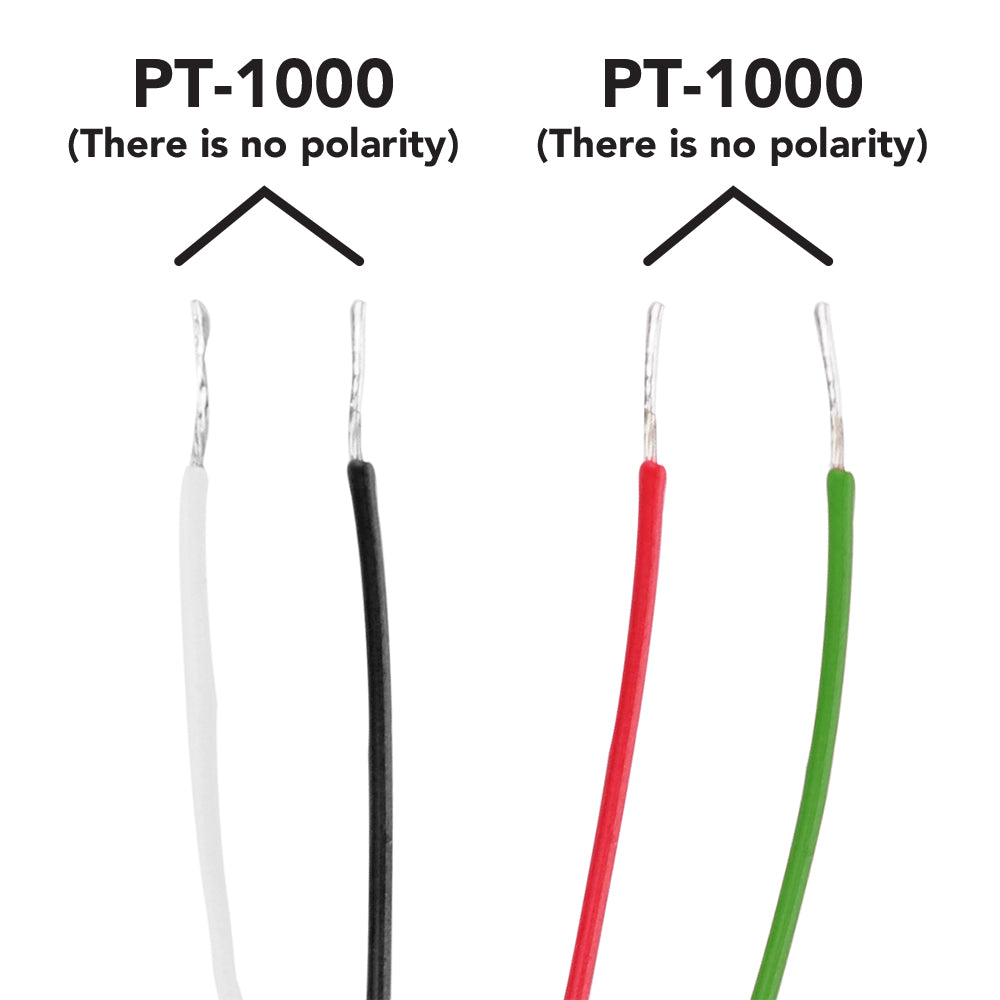

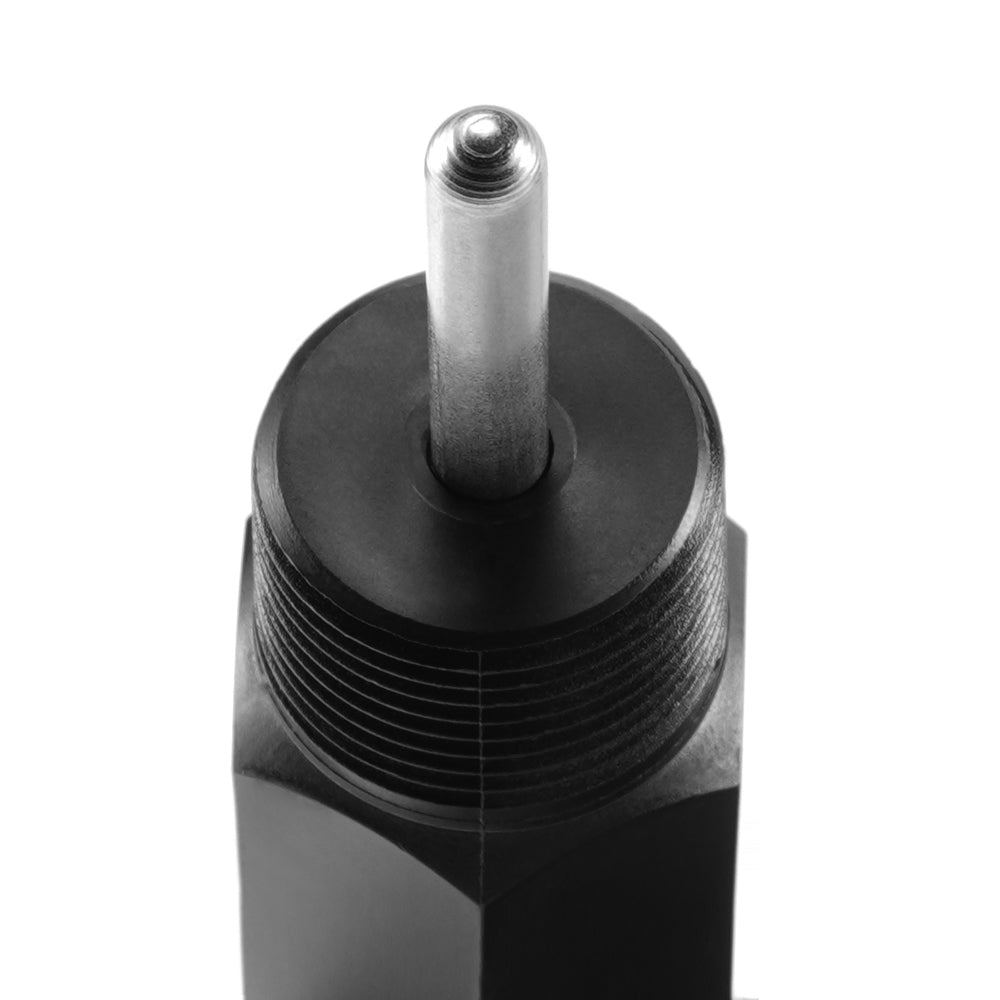

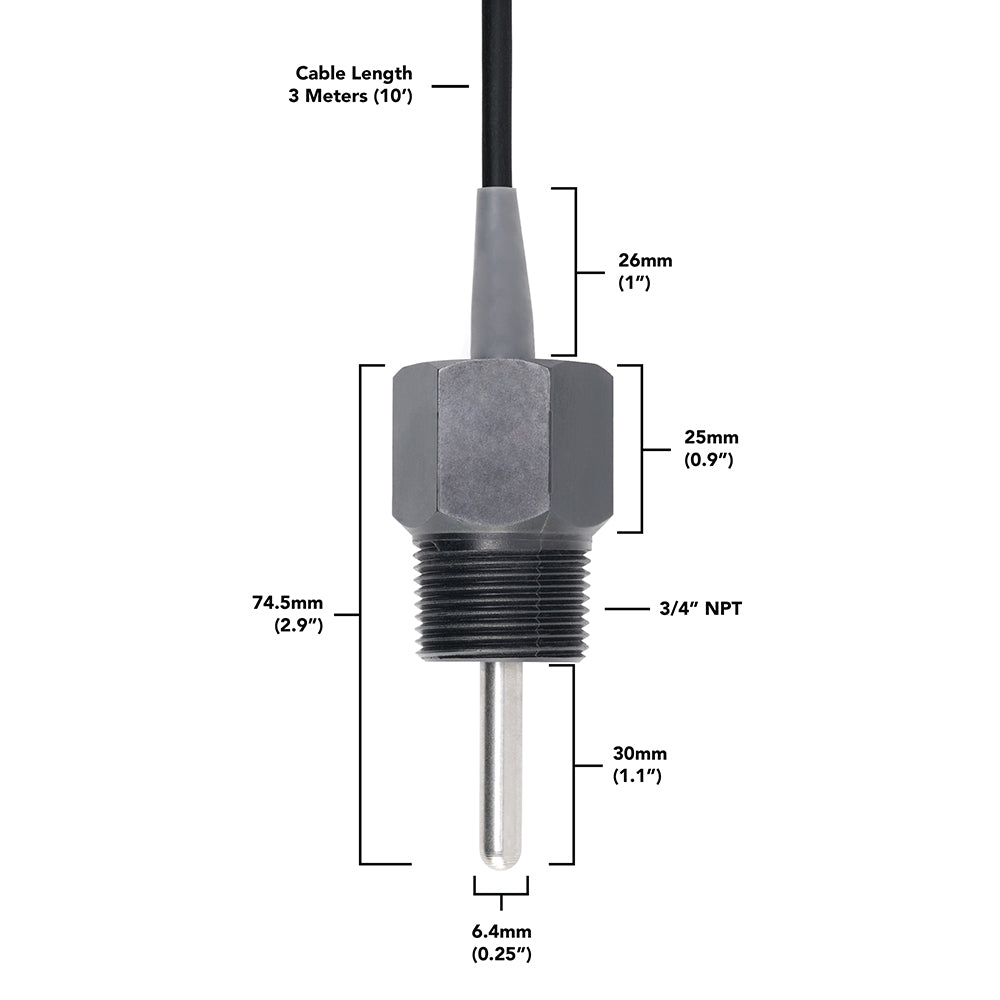

The Industrial PT-1000 Temperature Probe is a high-accuracy 4-wire temperature sensor. Internally it uses a class A PT-1000 platinum resistance temperature detector. The sensor is food safe and can be screwed into a pipe or a tank using its 3/4″ NPT threading. The sensor can be used in 2, 3, or 4 wire temperature sensor applications.
Documents:
Specifications:
| Reads | Temperature |
| Probe type | Class A platinum, RTD |
| Range | -55 ̊C to 220 ̊C |
| Accuracy | +/- (0.15 + (0.002*t)) |
| Reaction Time | 90% in 13s |
| Cable length | 3 Meters (10′) |
| Connector | Tinned leads |
| Output | Resistance (Analog) |
| Life expectancy | 15 years |
