Atlas Scientific
Atlas Scientific Micro ORP Probe
SKU: AS-ENV-10-ORP
₹ 28,439.00
Taxes included.
Shipping calculated at checkout.
Description

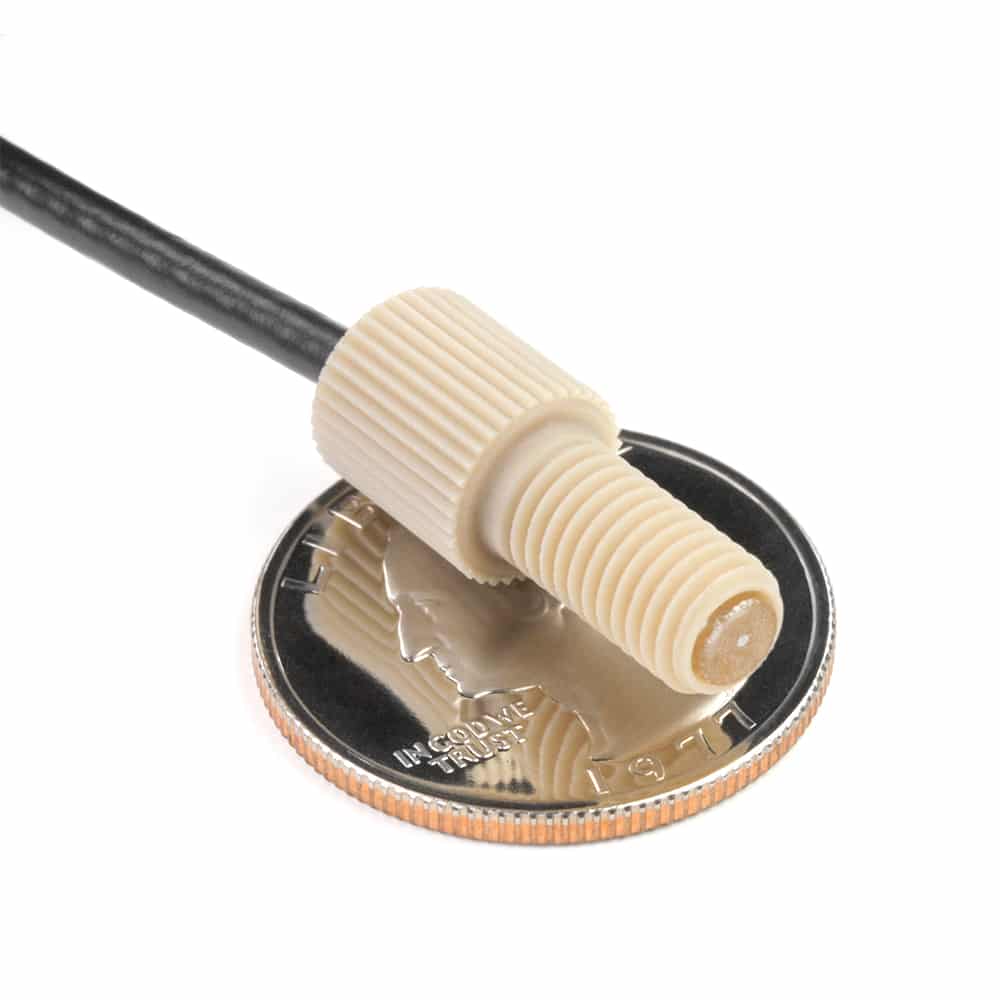

The Atlas Scientific Micro-ORP Probe was designed for microfluidics and other small applications. Because the probe is so small, it had to be built as a half cell ORP probe. A ½ cell probe works just like a normal ORP probe, but it consists of two separate pieces, the working electrode, and the reference electrode. The supplied connector board merges the two halves into one, just like a normal ORP probe.
Specifications

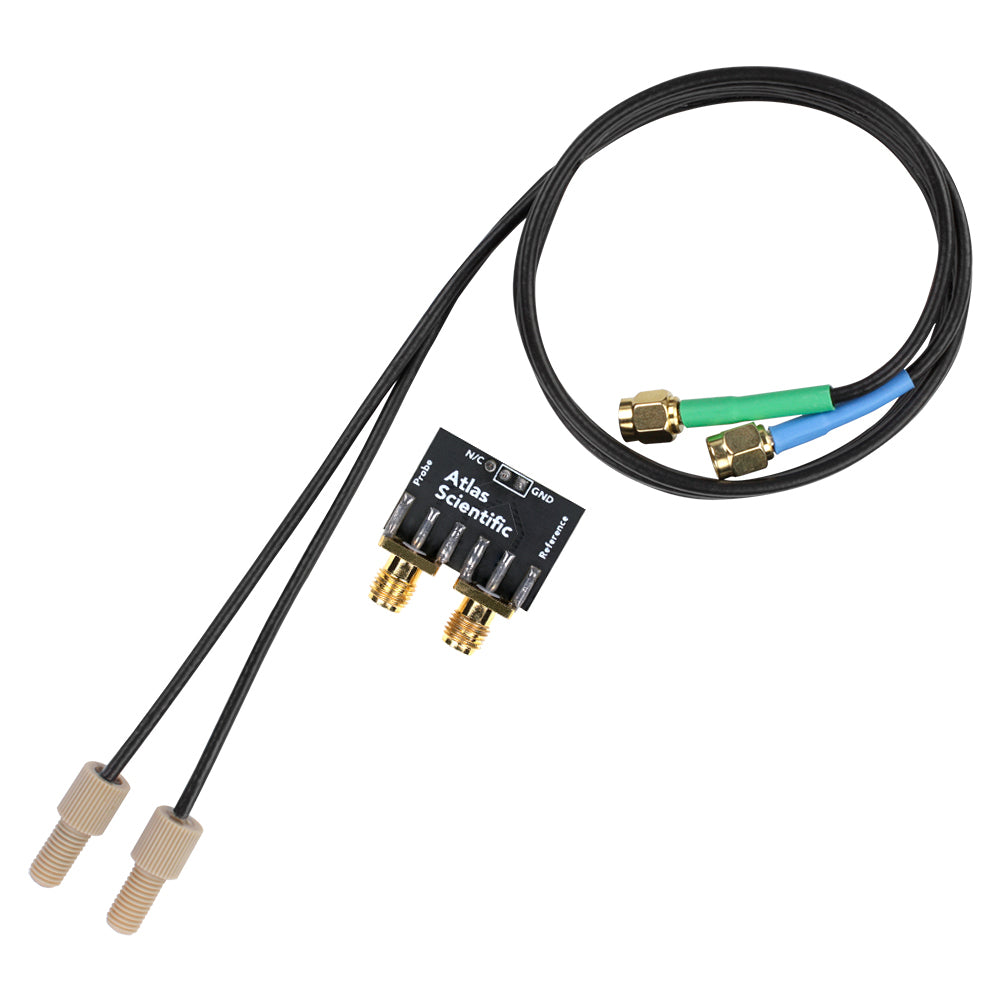

| • 1 Micro ORP Probe | |
| • 1 Micro Reference Probe | |

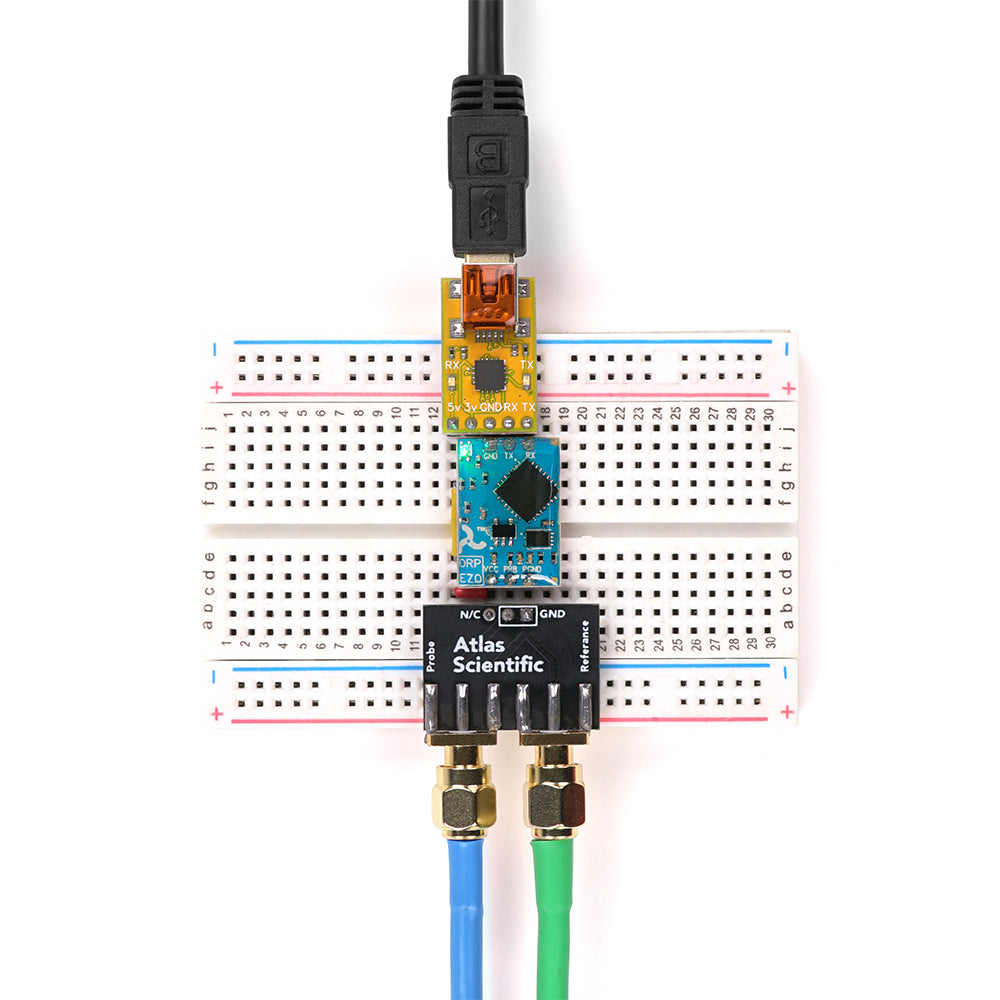

| • 1 Half Cell SMA Breakout Board | |
| Reads | ORP |
| Range | +/- 2000mV |
| Accuracy | +/– 1mV |
| Response time | 95% in 1s |
| Temperature range °C | -5 − 90 °C |
| Max pressure | 150 PSI |
| Max depth | 60m (197 ft) |

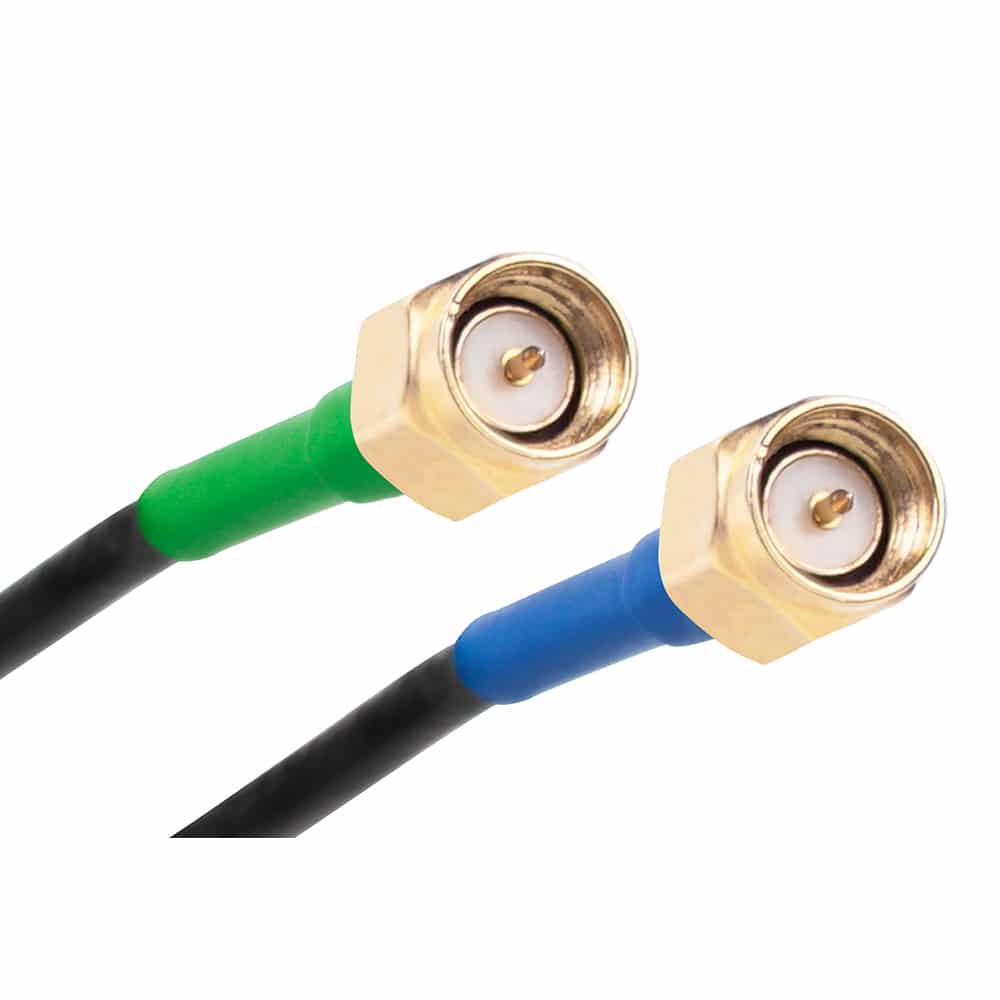

| Connector | Male SMA |

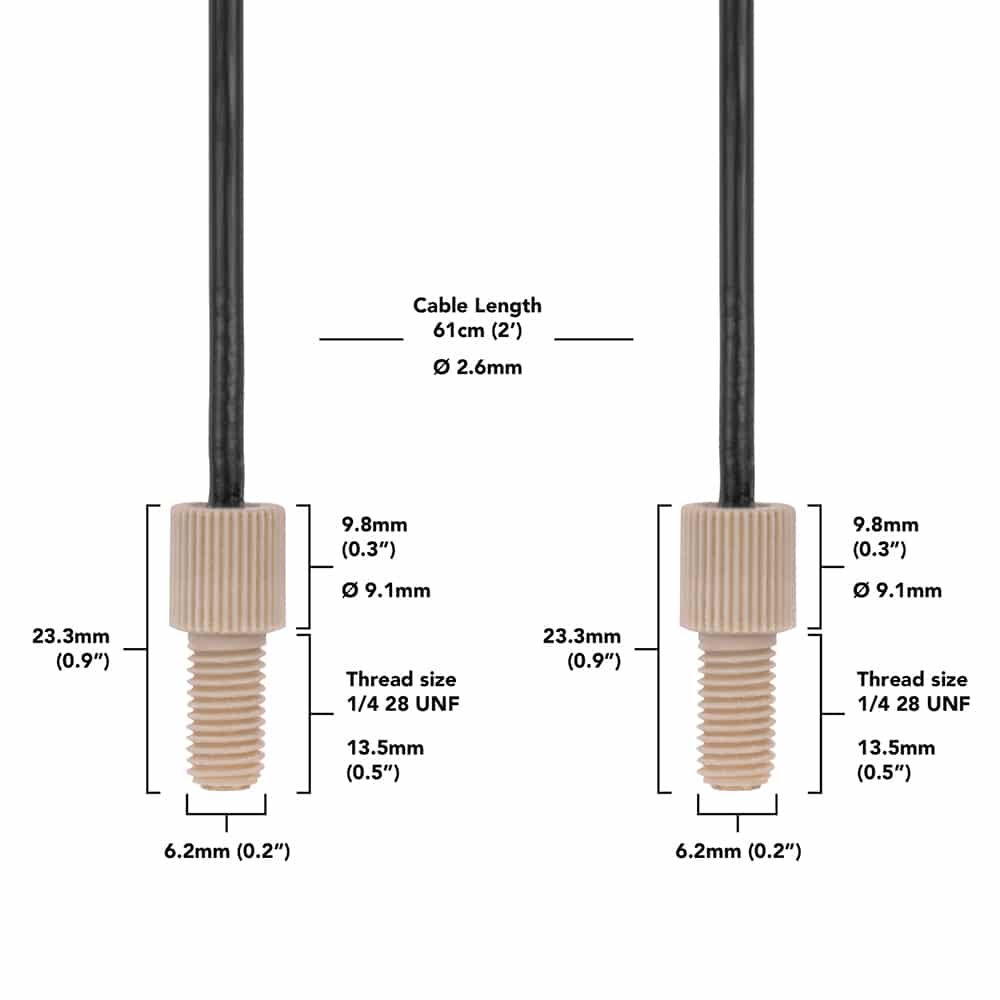

| Cable length | 61cm (2′) |
| Internal temperature sensor | No |
| Time before recalibration | ~1 month |
| Life expectancy | ~6 − 12 months |
