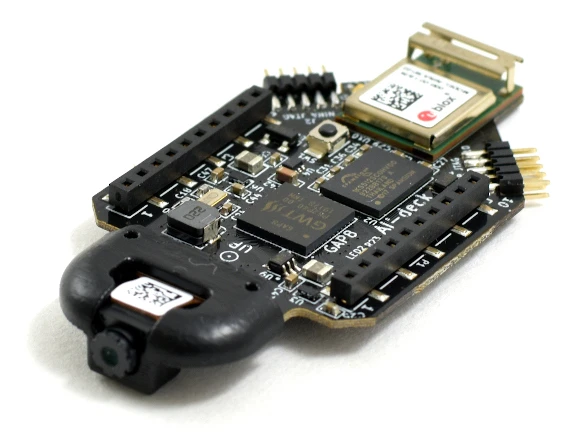

AI-deck

Description

New Version Bit 114992445

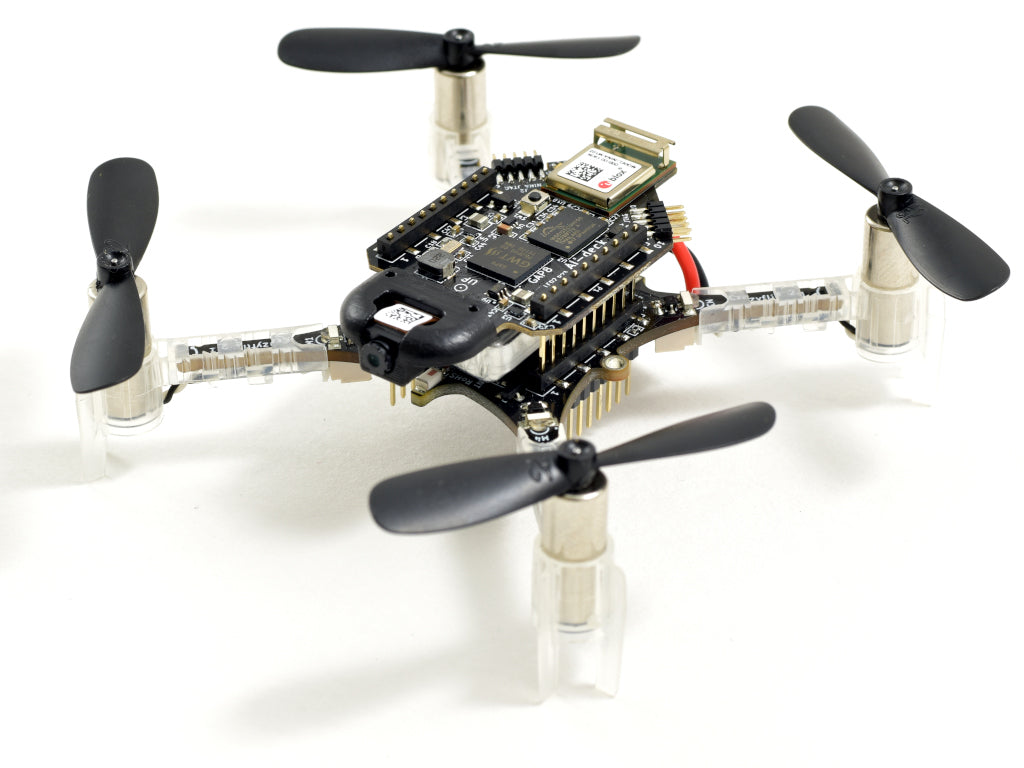

The AI-deck extends the computational capabilities and will enable complex artificial intelligence-based workloads to run onboard, with the possibility to achieve fully autonomous navigation capabilities. The ESP32 adds WiFi connectivity with the possibility to stream images as well as handling control.

This product is in the early access stage so documentation and amount of examples are limited. To program this board a compatible JTAG programmer/debugger is needed, see resources.

Features

• GAP8 Ultra-low power 8+1 core RISC-V IoT Application Processor
• Himax HM01B0 – Ultra low power 320×320 Bayer RGB camera.
• 512 Mbit HyperFlash and 64 Mbit HyperRAM
• ESP32 for WiFi and more (NINA-W102)
• 2 x Cortex-M 10-pin JTAG for GAP8 and ESP32
• Button connected to ESP32 for UART bootloader or other action
• 1 x green LED connected to GAP8 (A2)
• 1 x green LED connected to ESP32 (GPIO_24)
• Can work stand alone. Power board on VCOM

Package contents

• 1 x AI-deck
• 2 x Long pin headers
