Bitcraze

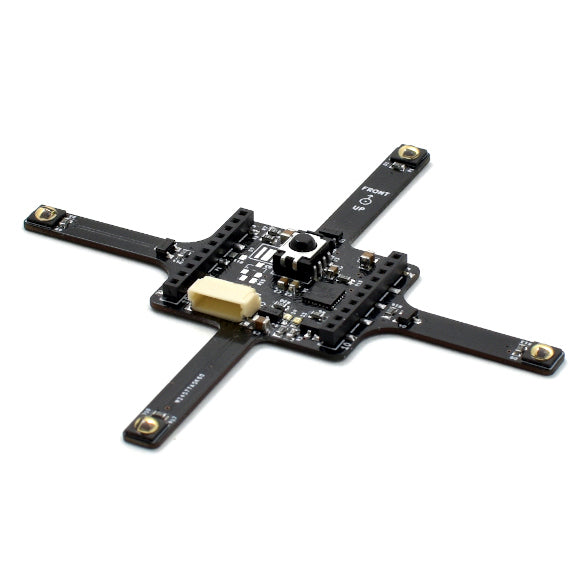

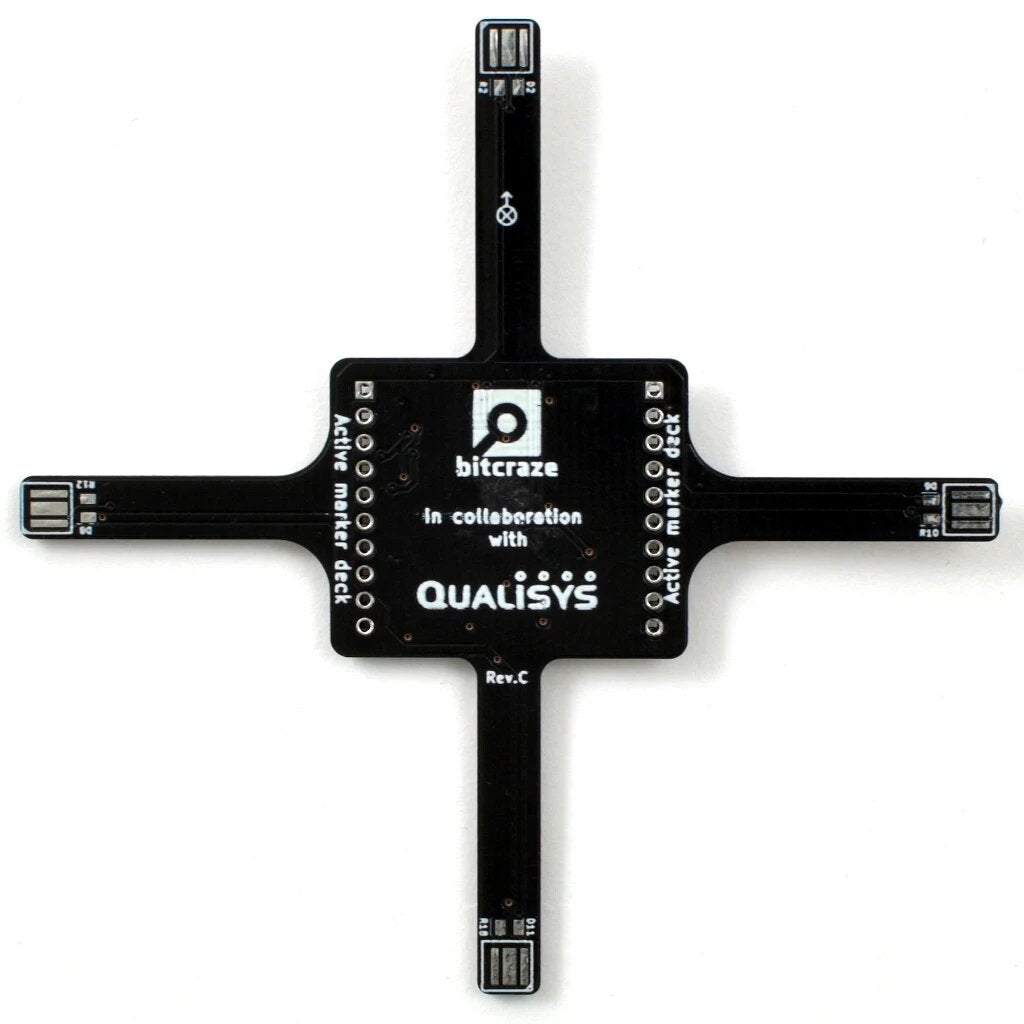

Active marker deck
SKU:
Bit-114992074
Rs. 16,499.00
Taxes included.
Shipping calculated at checkout.
Description
The active marker deck gives uses robust and long range tracking using Qualisys QTM. The deck supports up to 4 IDs so it's possible to have many different configurations without having to carry around bulky spherical markers.
The pre-flashed firmware on the deck supporting Qualisys is closed source, but the electronic design is open making it possible to adapt to other applications.
Features
- Using Qualisys QTM
- Robust and long range tracking
- Supports up to 4 different marker IDs
Specifications
- STM32F034G MCU
- Receiving IR LED (38kHz carrier)
- 4 x high power IR LEDs (850 nm)
- SWD connector (compatible with Debug adapter)
- Compatible with Qualisys QTM V2019.3+
- Weight: 3.1 g
- Size (WxHxD): 75x75x5 mm
- Designed for mounting under the Crazyflie product family
Compatibility
Package content
- 1 x Active marker deck
