A5984 Stepper Motor Driver Carrier, Fixed 500mA@5V / 330mA@3.3V (Soldered Header Pins)

Description

Overview

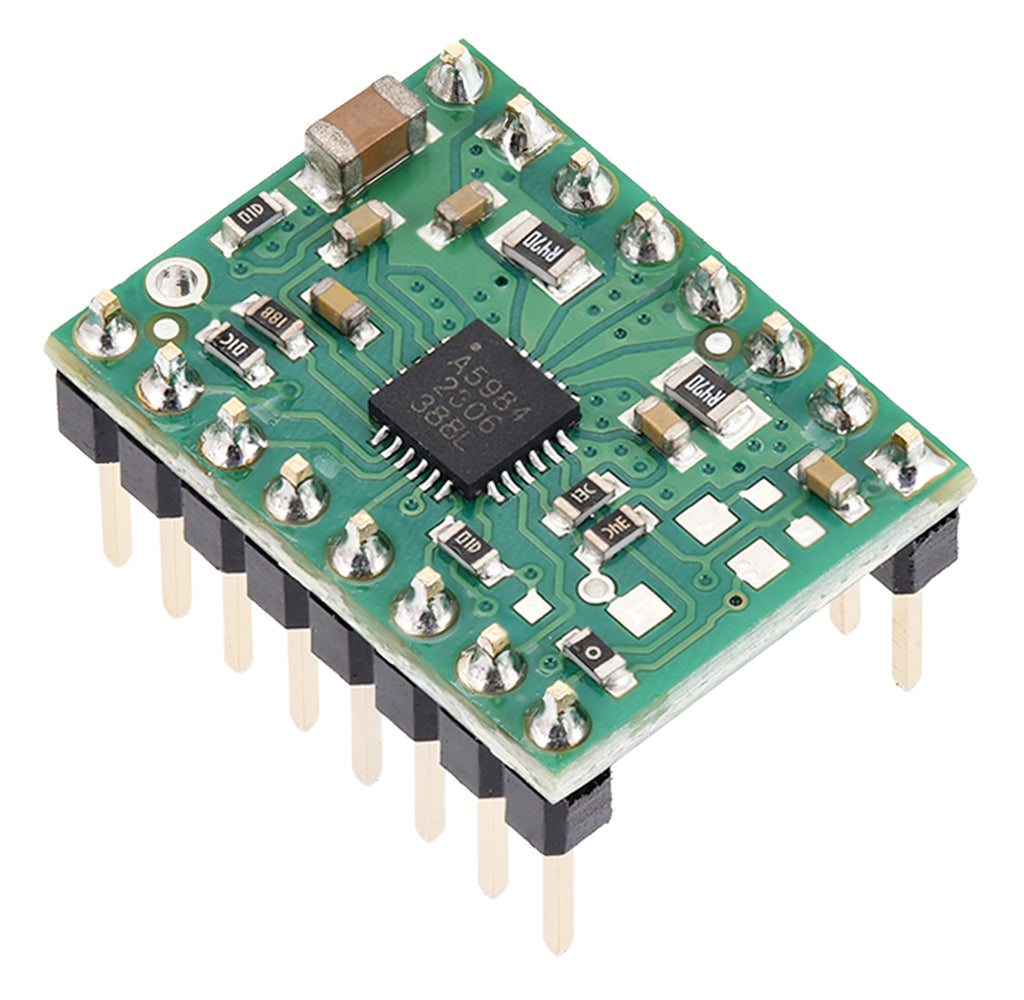

A5984 Stepper Motor Driver Carrier, Fixed 500mA@5V / 330mA@3.3V (Soldered Header Pins).

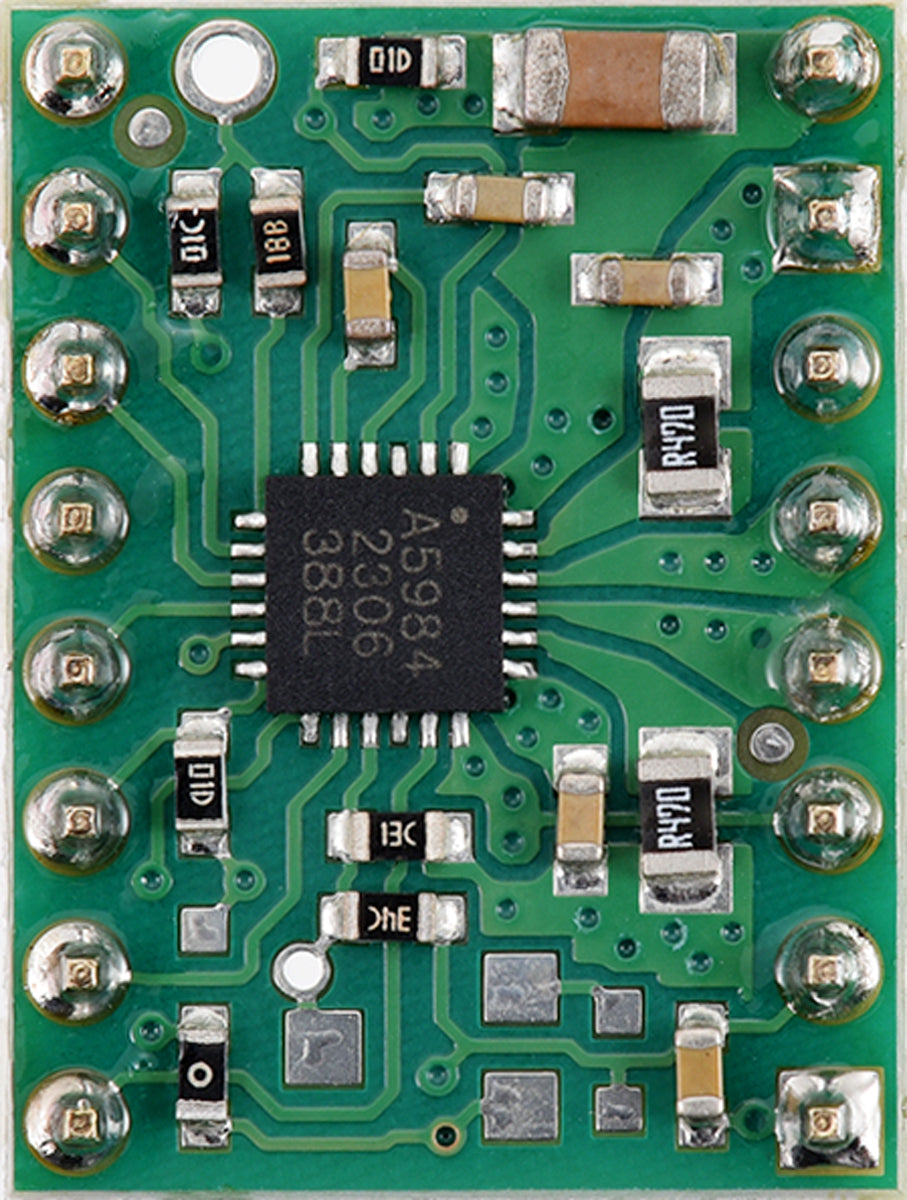

A5984 Stepper Motor Driver Carrier, Fixed 500mA@5V / 330mA@3.3V (Soldered Header Pins), top view.

This product is the A5984 carrier with a fixed current limit of 500 mA (VDD = 5 V) or 330 mA (VDD = 3.3 V). This version has soldered headers as shown in the pictures above, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. See the item #5350: A5984 Stepper Motor Driver Carrier, Fixed 500mA@5V / 330mA@3.3V, Blue Edition product page for more information about this driver.

Dimensions

General specifications

Identifying markings
