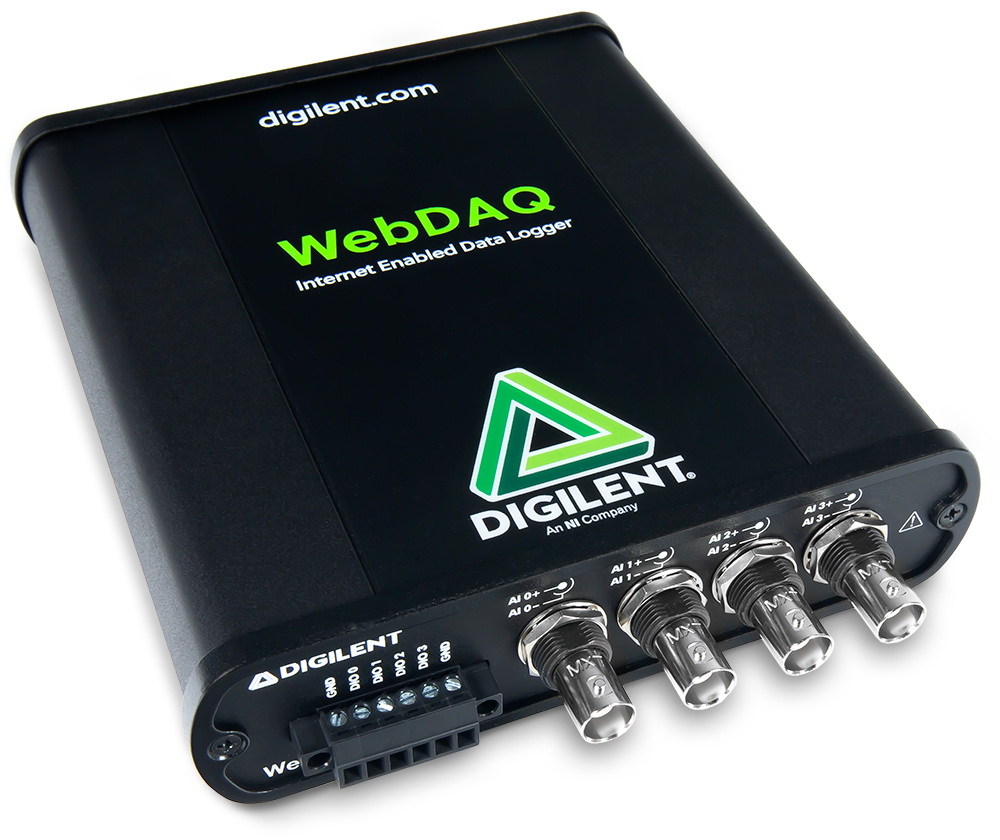

WebDAQ 504, Internet Enabled Vibration Acoustic Data Logger

Description

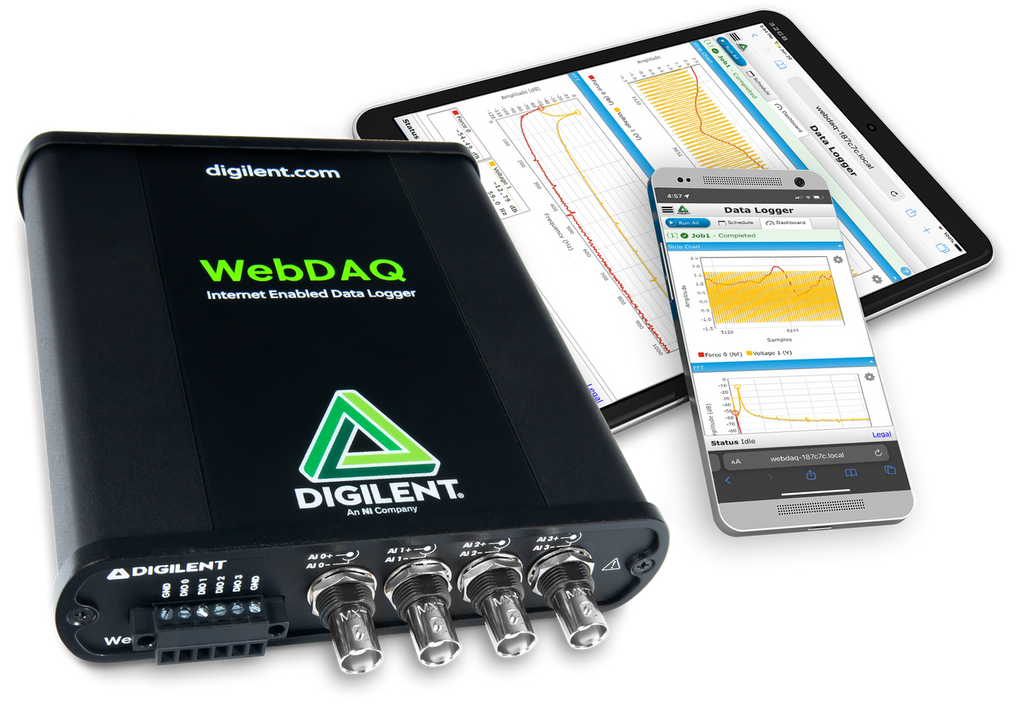

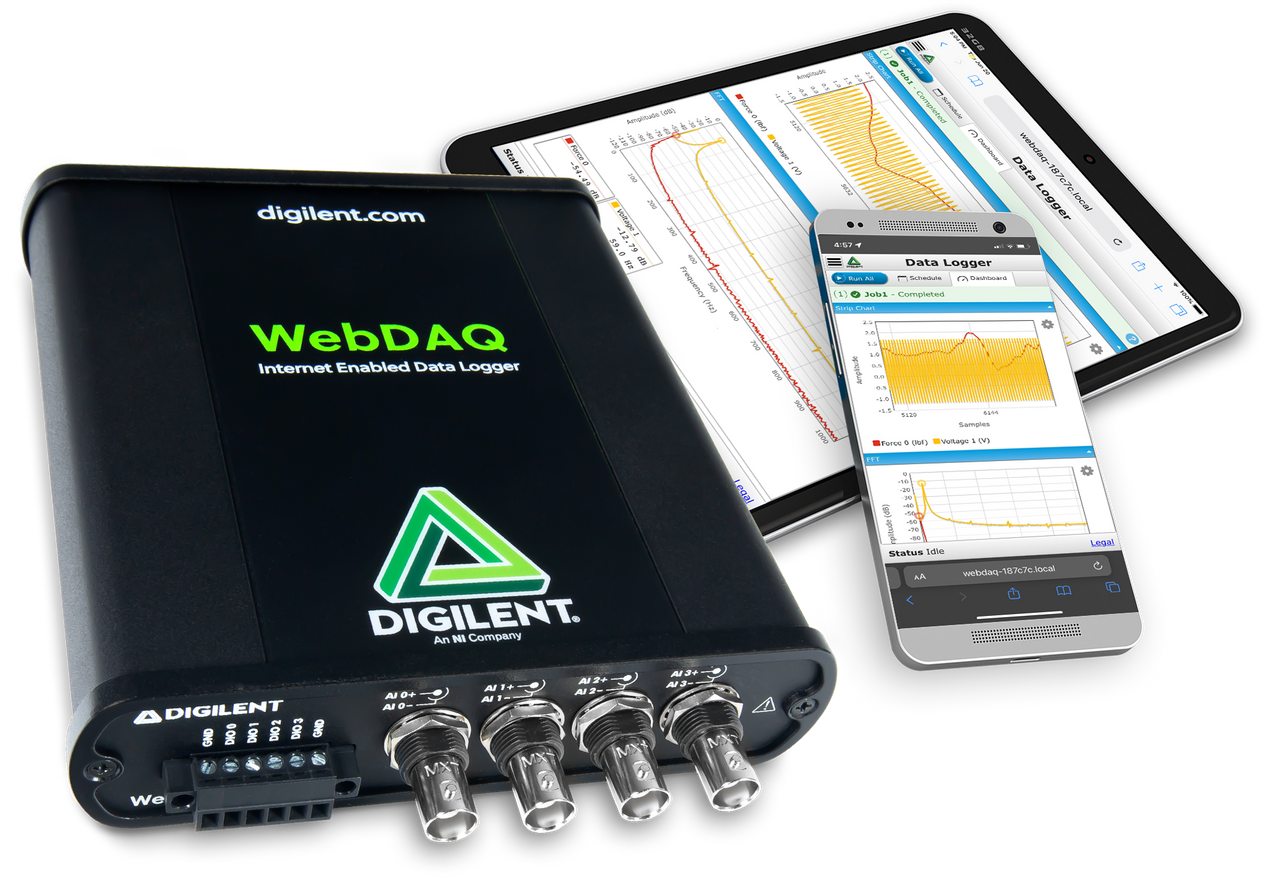

The WebDAQ 504 is a stand-alone vibration and acoustic data logger for remote monitoring, analysis, and control. All intelligence is built into the device, eliminating the need for a PC or additional software. The embedded web server lets users configure applications, log data, update digital outputs, send alarm notifications, and view real-time data from any browser-equipped device.

• Four simultaneous IEPE inputs (accelerometers, microphones), 24-bit ADC, up to 51 kS/s/ch
• Real-time FFTs for continuous monitoring and analysis
• Four isolated digital I/O for triggers and alarms
• Internal 3GB memory, plus optional SD card and USB storage
• RESTful API for custom integration with dashboards or cloud applications

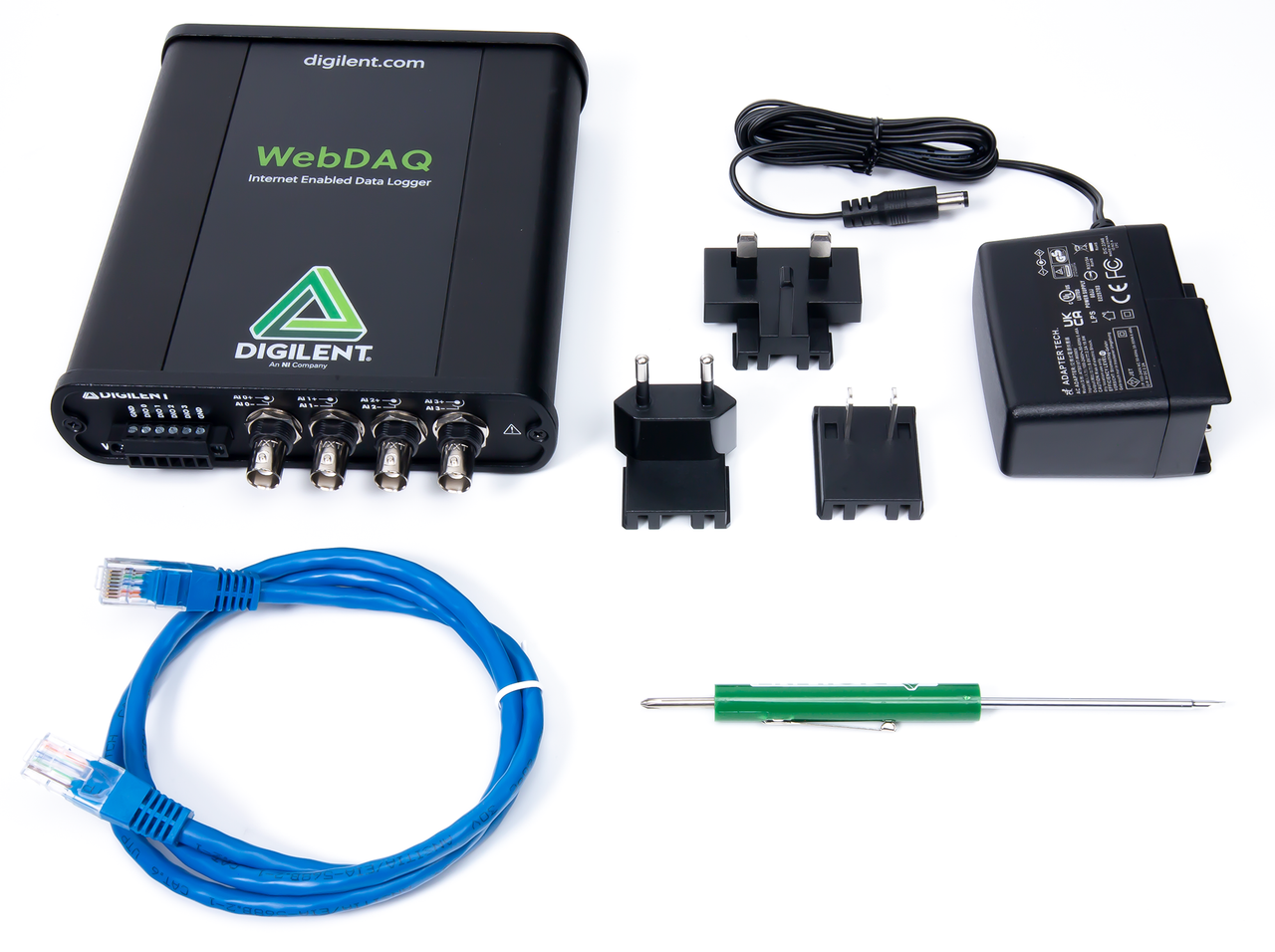

Includes the WebDAQ 504, 9 VDC power supply, Ethernet cable, and field-changeable US/EU/UK AC input plugs.

Shipping & Compliance Details

• Country of Origin: HU
• HTS Code: 8471809000
• RoHS Compliant: Yes
