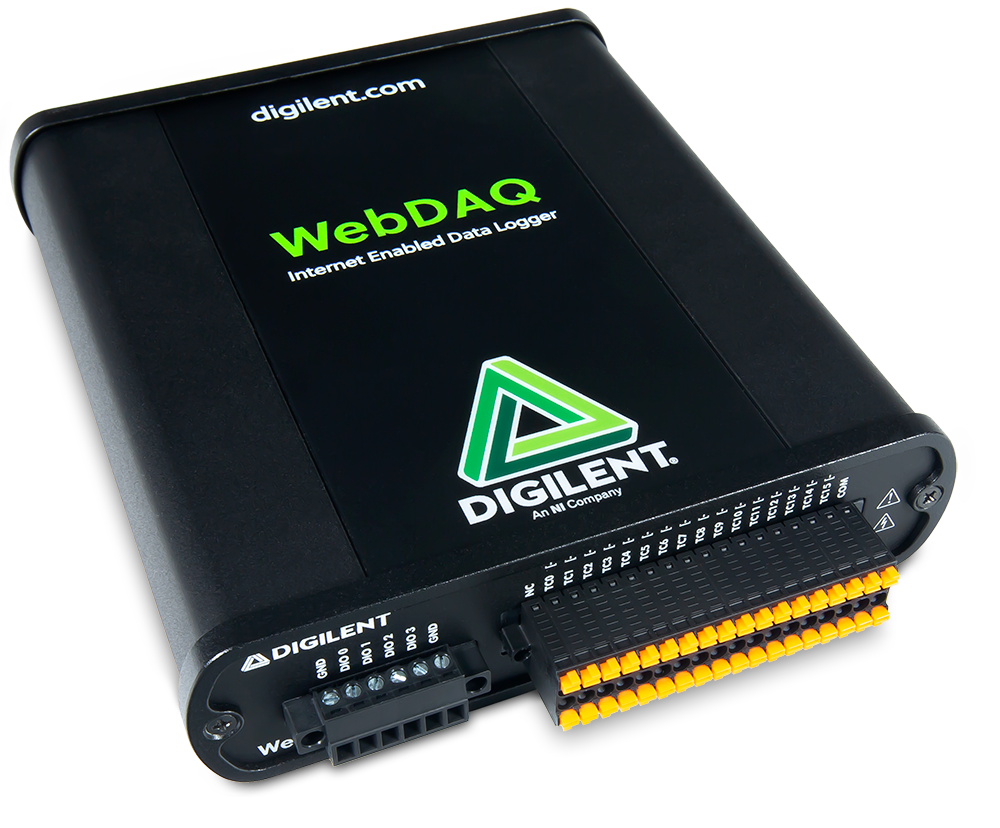

WebDAQ 316, Internet Enabled Thermocouple Data Logger

Description

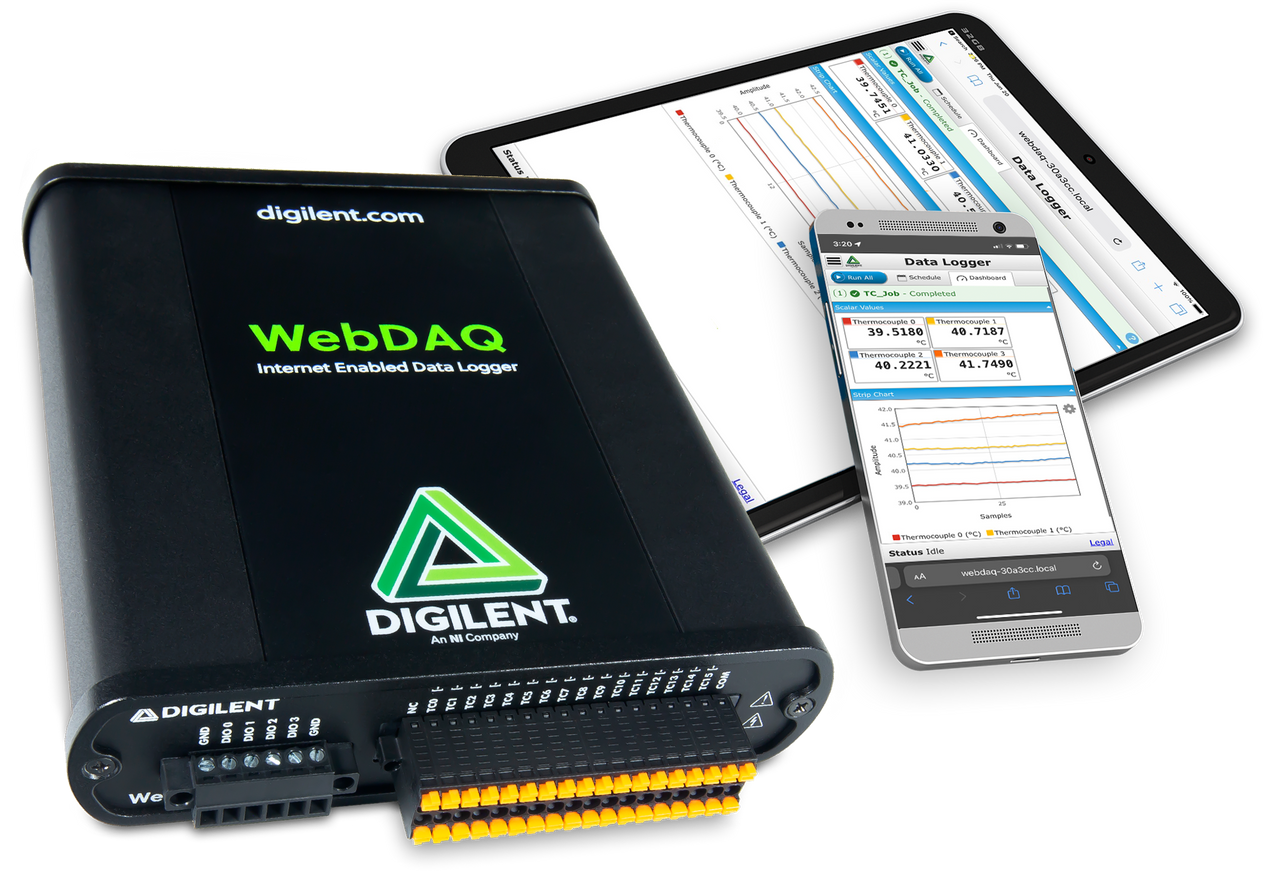

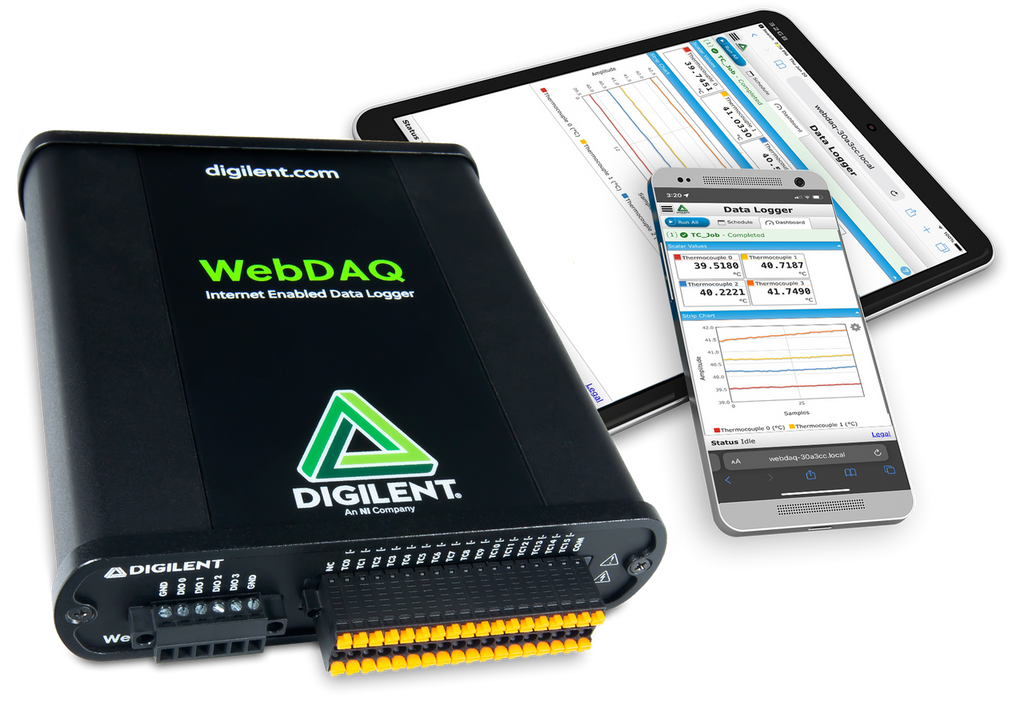

The WebDAQ 316 is a stand-alone temperature logger designed for remote monitoring and control. All intelligence is built into the device, eliminating the need for a PC or additional software. The embedded web server lets users configure applications, log temperature data, update digital outputs, send alarm notifications, and view real-time data from any browser-equipped device.

• 16 isolated thermocouple inputs (types J, K, T, E, N, B, R, S), 24-bit ADC, up to 75 S/s/ch
• Four isolated digital I/O for triggers and alarms
• Internal 3GB memory, plus optional SD card and USB storage
• RESTful API for custom integration with dashboards or cloud applications
• WiFi support (dongle not included) and Ethernet port; no driver software required

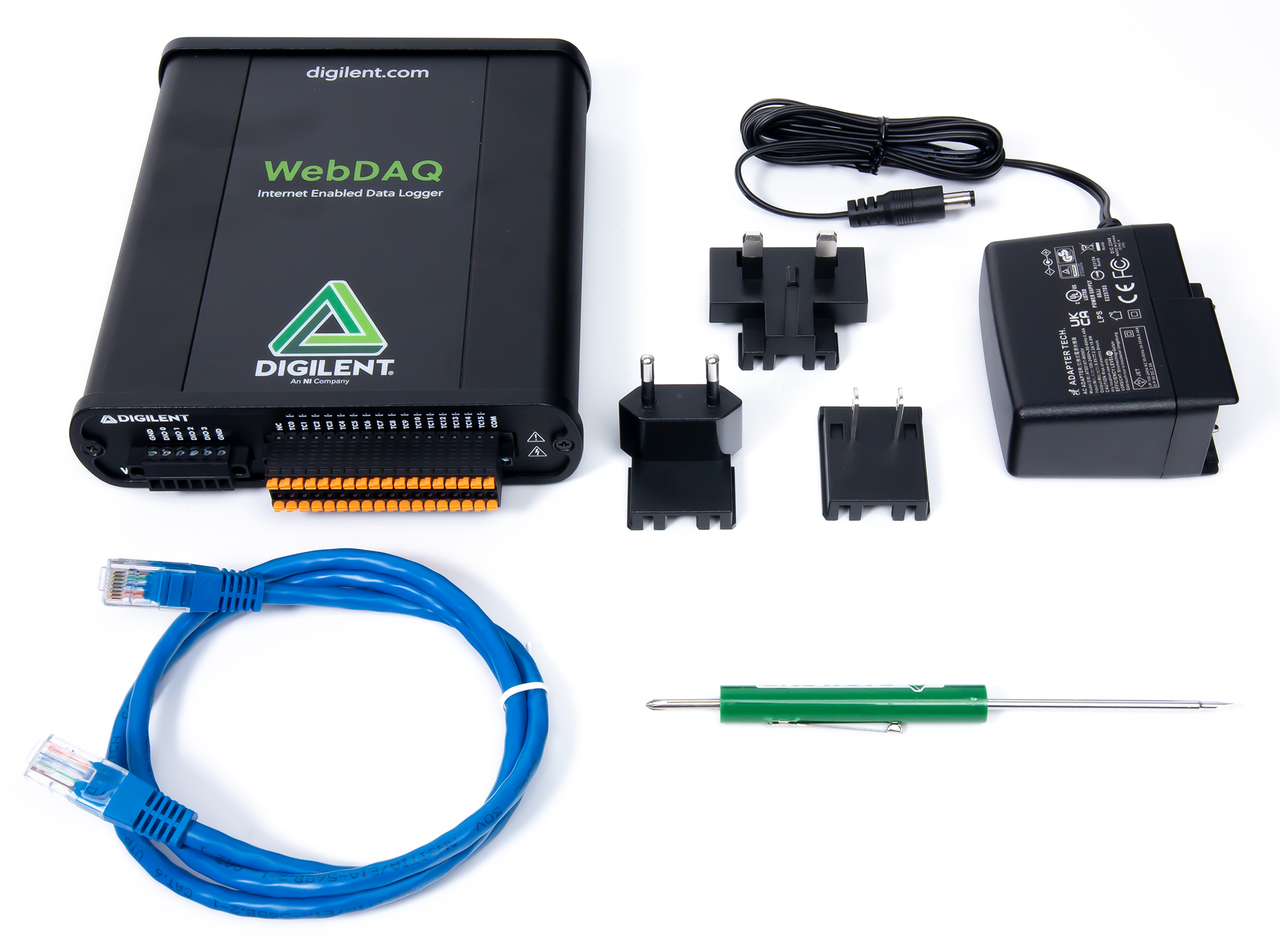

Includes the WebDAQ 316, 9 VDC power supply, Ethernet cable, and field-changeable US/EU/UK AC input plugs.

Shipping & Compliance Details

• Country of Origin: HU
• HTS Code: 8471809000
• RoHS Compliant: Yes
