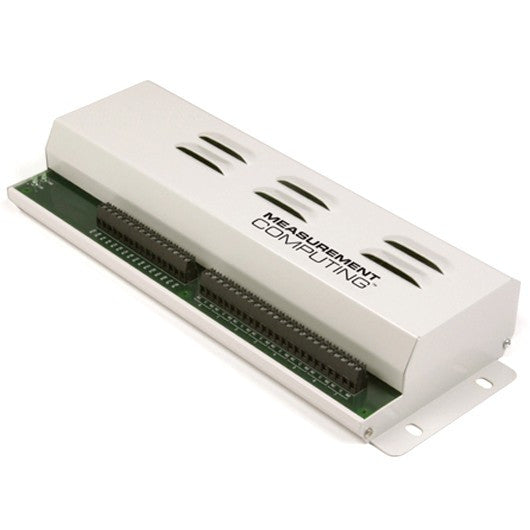

USB-PDISO8, Form C Relay, 8CH

Description

The USB-PDISO8 provides eight Form C SPDT relay outputs and eight functionally isolated digital inputs in a plug-and-play USB package for control and sensing applications where high voltages need to be sensed or switched.

• Eight Form C (SPDT) relay outputs, with screw-terminal field wiring (NO, C, NC per relay)
• Eight optically isolated (500 V) digital inputs, not polarity-sensitive, accepting AC (50–1000 Hz) or DC signals
• Software-selectable input filter (5 ms / 200 Hz time constant) per channel
• Powered via an external 9 V, 1.67 A regulated supply (included)
• Note: Digilent lists this device as not recommended for new designs; the USB-ERB Series is the suggested modern alternative

Shipping & Compliance Details

• Country of Origin: HU
• HTS Code: 8537109170
• RoHS Compliant: Yes
