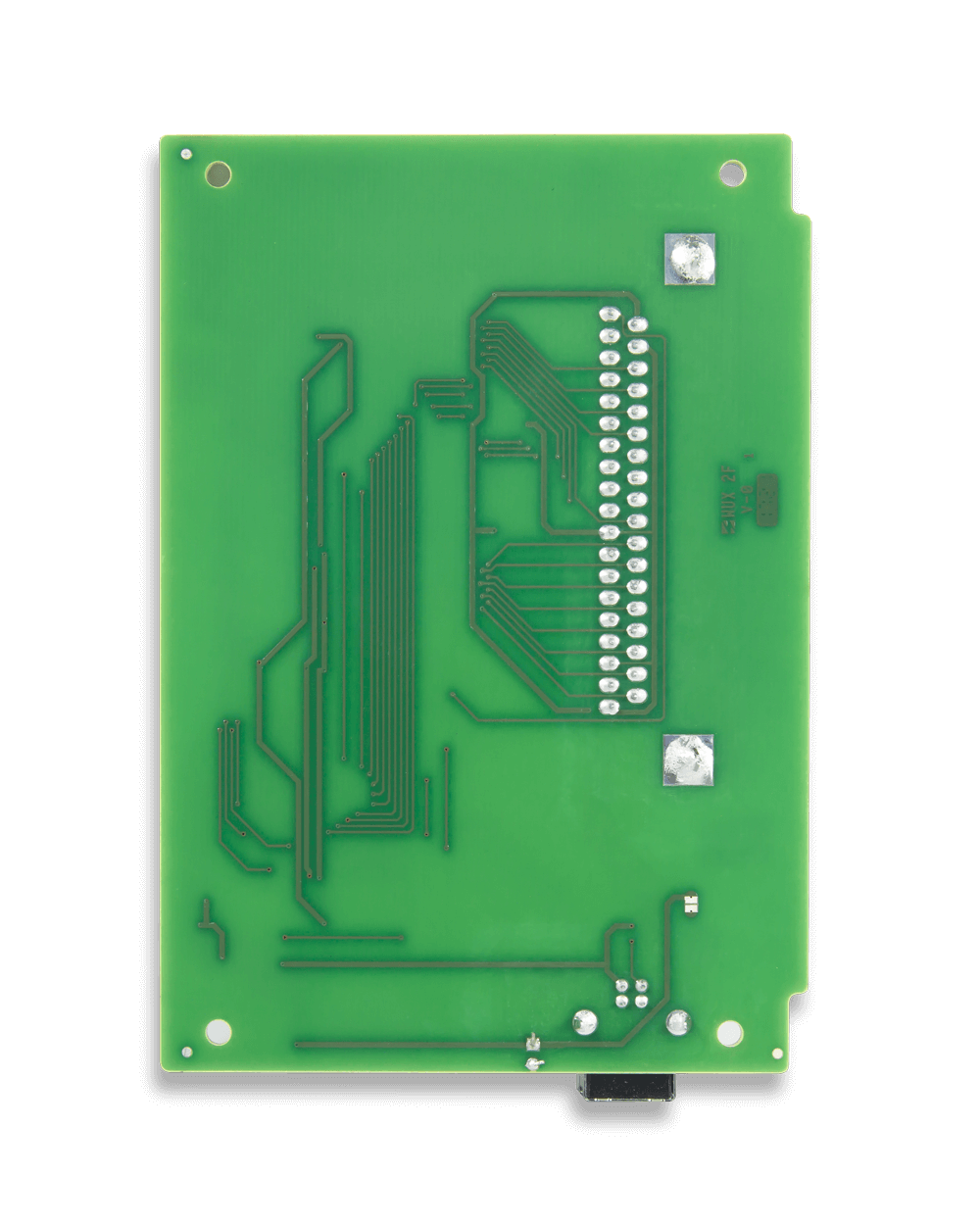

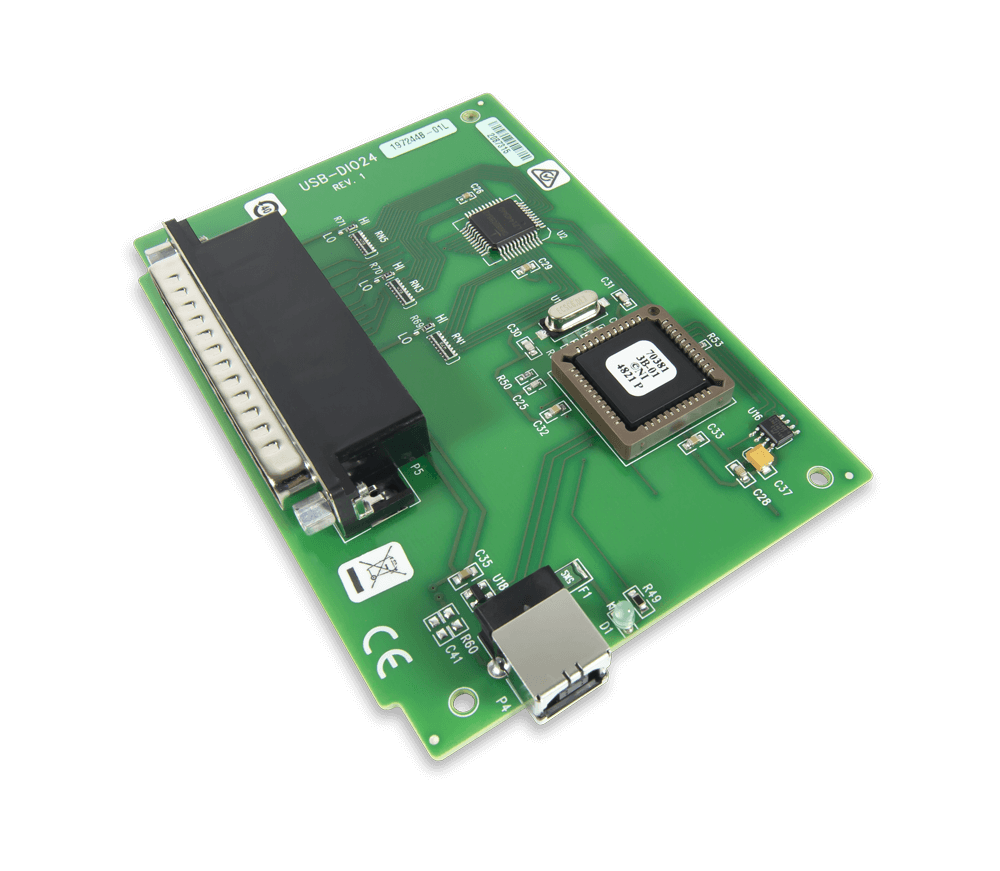

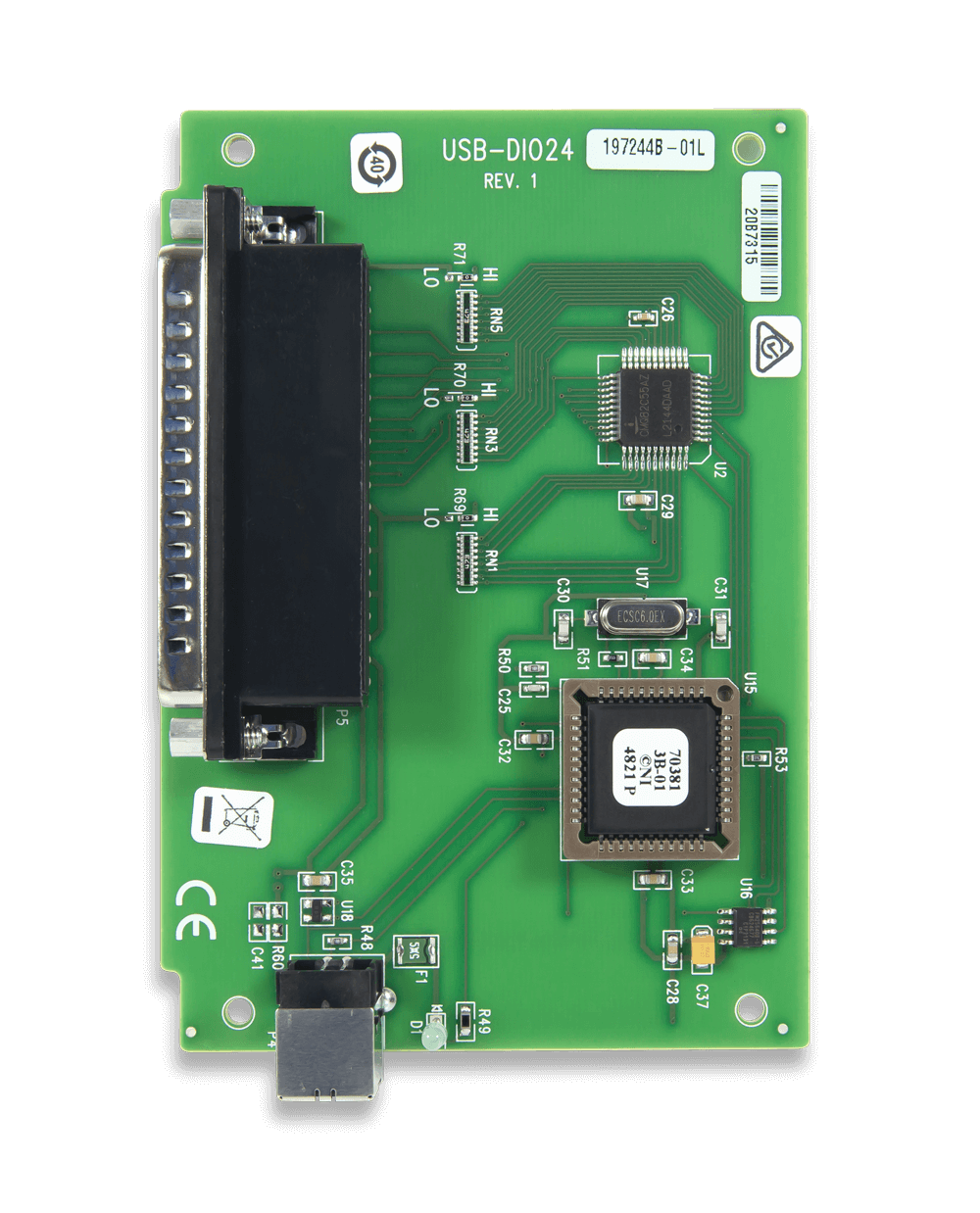

USB-DIO24/37, DIO24 w/ 37 Pin D-Sub Connector

Description

The USB-DIO24/37 provides 24 lines of logic-level, bidirectional digital I/O and a 32-bit external event counter, with all I/O connections made through a single 37-pin connector. It's USB-powered and requires no external power.

• 24 digital I/O lines, configured as two 8-bit and two 4-bit ports (82C55 mode 0 emulation)
• One 32-bit external event counter
• 2.5 mA sink/source; 5.5V max input voltage

Includes free DAQami software for data logging and signal generation, plus drivers for Visual C++, C#, VB.NET, DASYLab, LabVIEW, Linux, and Python.

Shipping & Compliance Details

• Country of Origin: HU
• HTS Code: 8471809000
• RoHS Compliant: Yes
