USB-3102, Analog Vout with 4HS and 8DI/O CH
₹ 47,436.00
Skip to product information
Out of stock
MCC
USB-3102, Analog Vout with 4HS and 8DI/O CH
DG-6069-410-030
₹ 47,436.00
Taxes included.
Shipping calculated at checkout.
Description

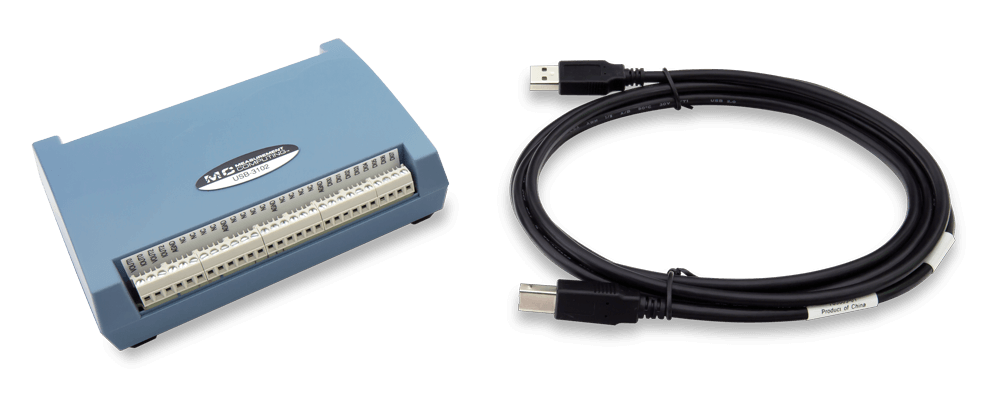

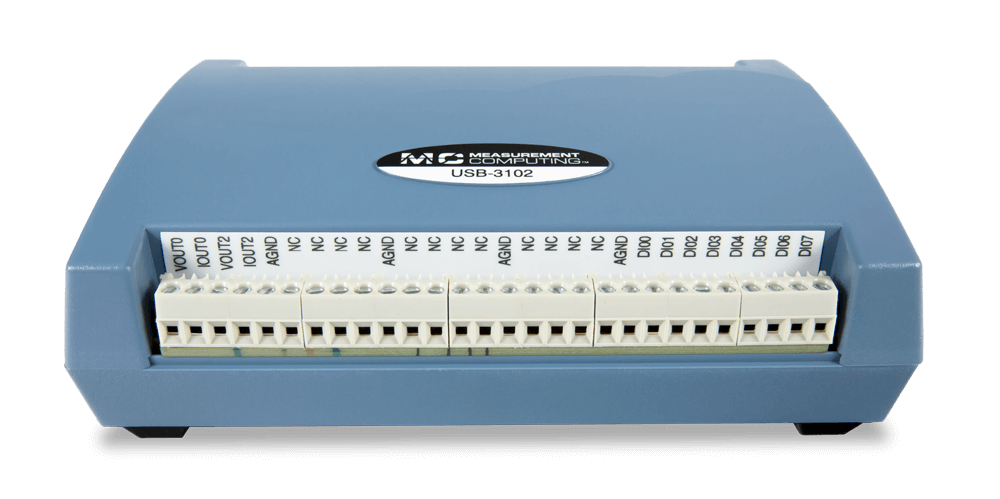

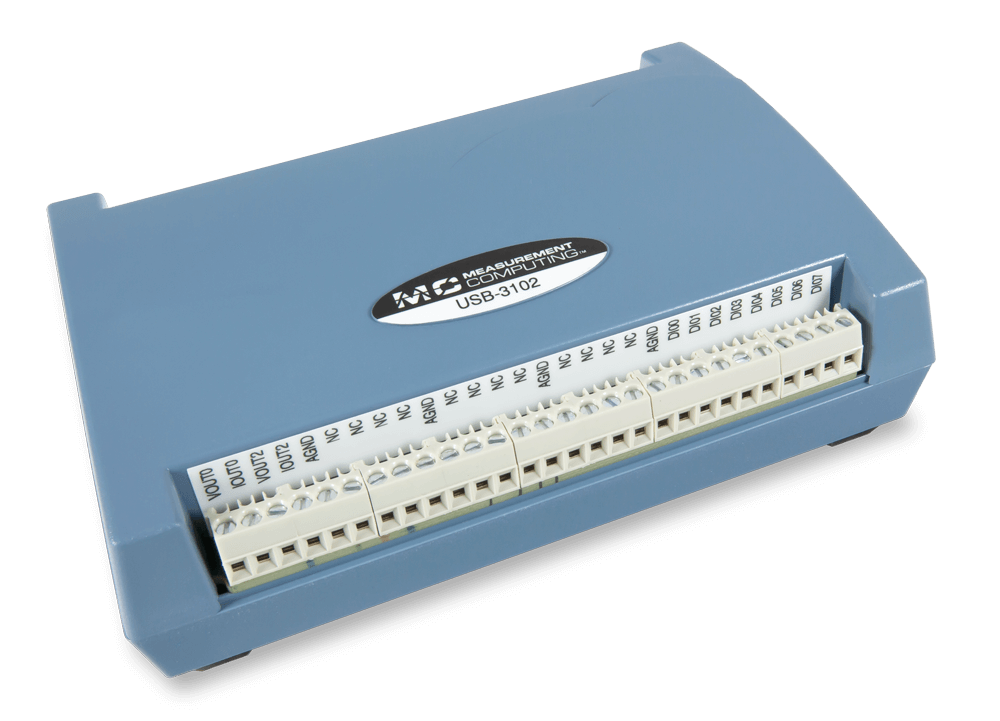

The USB-3102 is a 4-channel voltage/current output USB device, part of the USB-3100 Series. Each channel is software-selectable for a bipolar (±10V) or unipolar (0–10V) voltage output, plus 0–20 mA current output; each DAC controls a voltage/current channel pair.
- Four voltage/current output channels, 16-bit resolution, 100 S/s update rate
- Eight digital I/O and one 32-bit counter input
- USB bus-powered
Includes free DAQami software for data logging and signal generation, plus drivers for Visual C++, C#, VB.NET, DASYLab, LabVIEW, MATLAB, Linux, and Python.
Shipping & Compliance Details
- Country of Origin: HU
- HTS Code: 8471809000
- RoHS Compliant: Yes
