Description
The USB-2637 is a high-speed, high-channel USB DAQ device with 64 single-ended analog inputs, 16-bit resolution, and 1 MS/s sample rate. It's USB-powered and requires no external power.
- 64 SE analog inputs, 16-bit resolution, 1 MS/s sample rate, ±10V range
- Four 16-bit analog outputs, ±10V range
- 24 TTL-level digital I/O, software-selectable for input or output
- Four 32-bit counters and four 32-bit timers

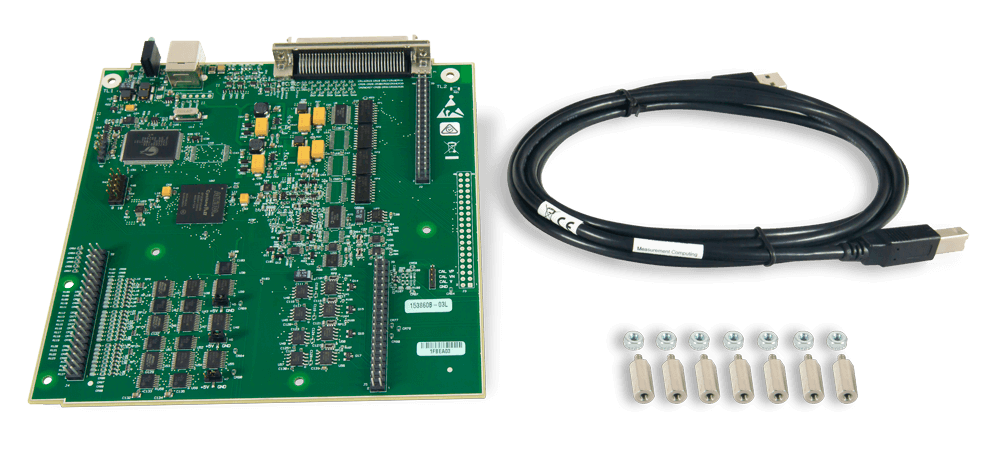

- Optional TB-103 screw terminal board for full signal I/O access
Includes free DAQami software for data logging and signal generation, plus drivers for Visual C++, C#, VB.NET, DASYLab, LabVIEW, MATLAB, Linux, and Python.
Shipping & Compliance Details
- Country of Origin: HU
- HTS Code: 8471801000
- RoHS Compliant: Yes
