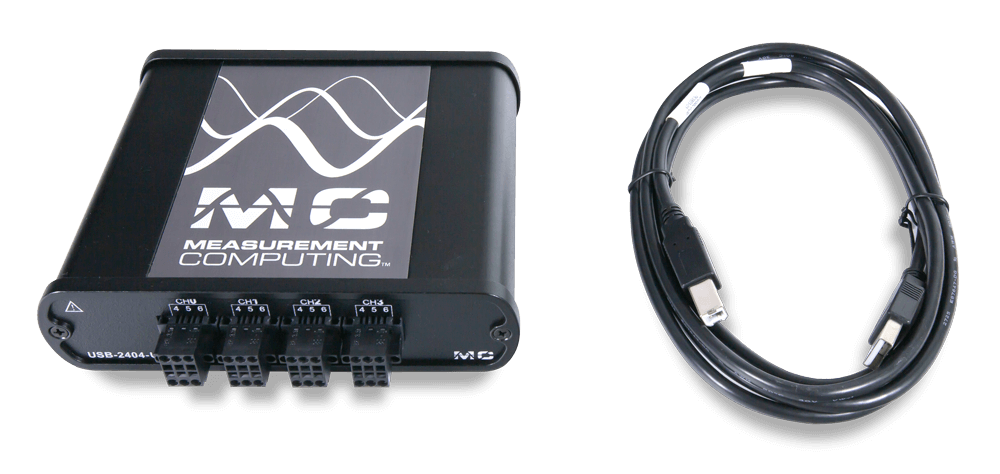

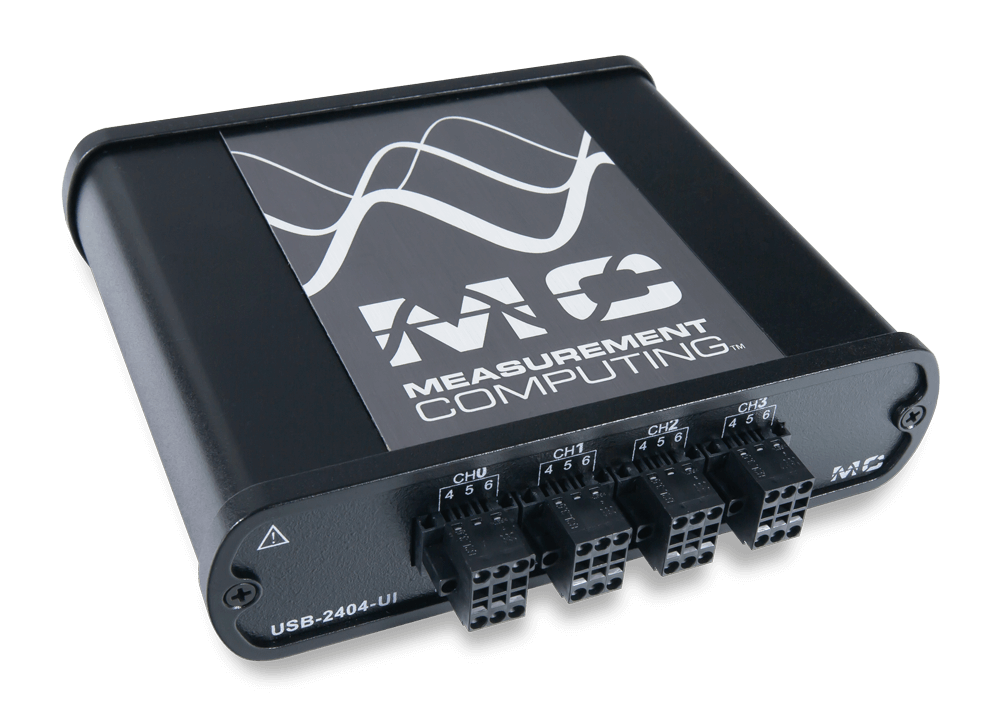

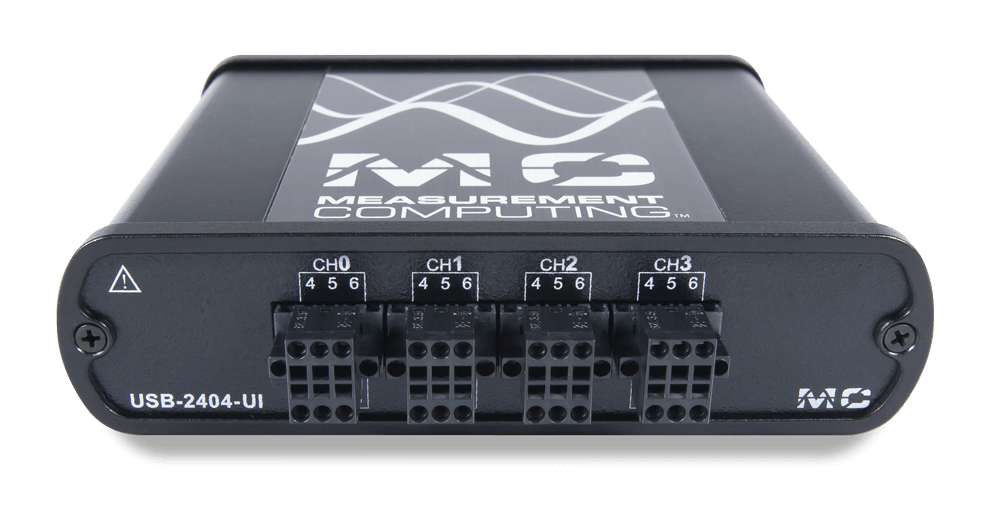

USB-2404-UI, DAQ, 4 Input, 24b, 50KS/s/ch
₹ 119,770.00
Skip to product information
Out of stock
MCC
USB-2404-UI, DAQ, 4 Input, 24b, 50KS/s/ch
DG-6069-410-035
₹ 119,770.00
Taxes included.
Shipping calculated at checkout.
Description
The USB-2404-UI is a universal-input USB DAQ device with four simultaneous 24-bit analog inputs, each with its own A/D converter and channel-to-channel functional isolation. It measures voltage, current, thermocouples, RTDs, resistance, and bridge-based sensors directly, with no external power required.
- 4 simultaneous analog inputs, 24-bit resolution, up to 100 S/s/ch
- Input ranges: ±60 V, ±15 V, ±10 V, ±4 V, ±1 V, ±125 mV
- Built-in current and voltage excitation with overcurrent/overvoltage protection
- Supports Class II TEDS smart sensors with built-in cold-junction compensation
Includes DAQami software for data logging and signal generation, plus drivers for Visual C++, C#, VB.NET, DASYLab, LabVIEW, and Python.
Shipping & Compliance Details
- Country of Origin: HU
- HTS Code: 8471809000
- RoHS Compliant: Yes
