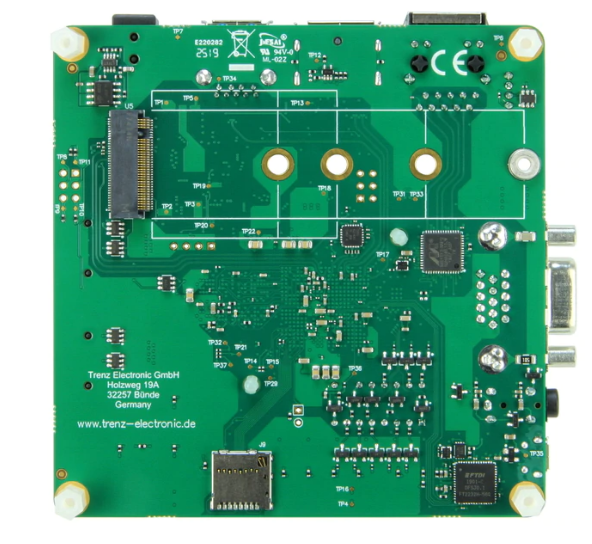

Trenz TE0802: Zynq UltraScale+ MPSoC Development Board

The Trenz TE0802 features the XCZU2CG, which is the introductory device to the Zynq UltraScale+ MPSoC family. That makes the Trenz TE0802 an excellent choice for getting started with Zynq UltraScale+. Package migration within the Zynq UltraScale+ portfolio provides future proofing for bringing that design to other devices, such as the Genesys ZU.

The board features multiple connectivity interfaces, including DisplayPort, VGA, USB 3.0, and Gigabit Ethernet RJ45. Embedded developers and users familiar with Arm Cortex-R and Arm Cortex-A53 processors can get started in applications such as industrial motor control, sensor fusion, IoT, Real-time I/O, and medical devices. The versatile onboard I/O, including push buttons, slide switches, a seven-segment LED display, and 12-pin Pmod connectors, provide everything you need in one convenient package.

The XCZU2CG MPSoC is supported by Vivado Design Suite, including the free WebPACK edition, so designs can be completed at no extra cost.

Features

MPSoC: XCZU2CG - Xilinx Zynq UltraScale+ MPSoC

• Package: 1SBVA484E
• Temperature Grade: Extended (0 to +100 °C)

RAM/Storage:

• SDRAM: LPDDR4 8Gb 256Mx16x 2
• SPI Flash 256Mb (32M x 8) 133 MHz
• EEPROMs 2Kb (256 x 8)

Interfaces:

• Two 12-pin Pmod Connectors
• USB JTAG/UART microUSB
• 1GB Ethernet RJ45
• USB 3.0 Host (Type A Connector)
• microSD Card
• M.2 SSD PCIe
• 3.5 mm Earphone Jack (PWM Output)
• DisplayPort
• VGA
• 4 Digit 7-Segment LED Display
• 8 LEDs
• 5 User Buttons
• 8 Bit Slide Switches
• Reset Button

Power

• 5 V +/- 10%
• ~3.5 W
• 3A recommended for board startup
• 2.1mm inner diameter/5.5mm outer diameter barrel jack plug
• Dimensions: 100mm x 100mm

Product Compliance:

• HTC: 8471500150
• ECCN: 5A002.a.4

Includes

• Trenz Electronic TE0802 MPSoC Development Board
