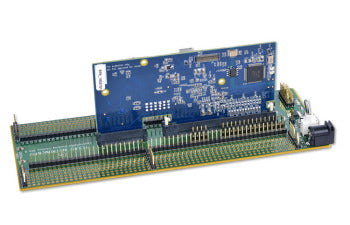

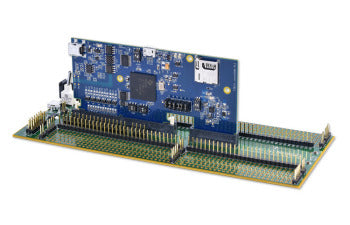

TMDSDOCK28379D Evaluation Board

Description

TMDSDOCK28379D is a HSEC180 controlCARD based evaluation and development tool for the C2000™ Delfino™ F2837x series of microcontroller products. The Docking Station provides power to the controlCARD and has a bread-board area for prototyping. Access to the key device signals are available using a series of header pins.

Features

Hardware Features

• TMDSCNCD28379D: TMS320F28379D HSEC180 based controlCARD
  • Isolated XDS100v2 USB-to-JTAG Debug Probe enables real-time in-system programming and debugging
• Bread-board like baseboard with HSEC180 controlCARD female connector
  • Header pin access to key MCU signals
  • Breadboard area for customizable routing/prototyping
  • Board power can be provided by the provided USB cable or a 5V barrel supply

Software Features

• Free download of Code Composer Studio IDE
• Free download of C2000Ware for device drivers and example projects
• DesignDRIVE and Position Manager capable
• MathWorks Embedded Target Support
• solidThinking Embed Support

Get Started

• Install controlSUITE
• Install Code Composer Studio IDE
• Open the Quick Start guide: Delfino TMS320F28379D controlCARD R1.3
• Ask questions on the TI C2000 e2e forum

What's Included

• Delfino F28379D controlCARD

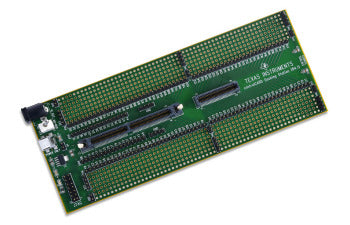

• HSEC180 Docking Station baseboard
• 2 x USB Cable - A Male to Mini B Male
• USB Cable - A Male to Micro B Male
