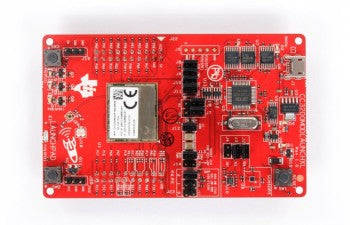

SimpleLink™ Wi-Fi® CC3200 Module LaunchPad

The CC3200MODLAUNCHXL is a low-cost evaluation platform which hosts the CC3200MOD. The SimpleLink™ CC3200MOD is a wireless microcontroller (MCU) module that integrates an ARM® Cortex™-M4 based MCU, allowing customers to develop an entire application using a single device. The module LaunchPad also features programmable user buttons, RGB LED for custom applications, temperature and accelerometer sensors, as well as onboard emulation for debugging. The LaunchPad stackable headers interface demonstrates how to expand the functionality of the CC3200MOD when interfacing with other peripherals on existing BoosterPack add-on boards, such as graphical displays, audio codec, antenna selection, environmental sensing, and more.

Features

• FCC, IC, CE, and Wi-Fi® CERTIFIED™ module, with ability to request certificate transfer for Wi-Fi Alliance members
• CC3200MOD, SimpleLink Wi-Fi, internet-on-a-chip™ module solution with integrated MCU
• 40-pin LaunchPad standard that leverages the BoosterPack ecosystem
• On-board accelerometer and temperature sensor for out-of-box demo
• Micro USB connector for power and debug connections
• On-board chip antenna with U.FL for conducted testing
• Can be powered externally, with 2xAA or 2xAAA alkaline batteries
• Enables the Internet of Things (IoT)
