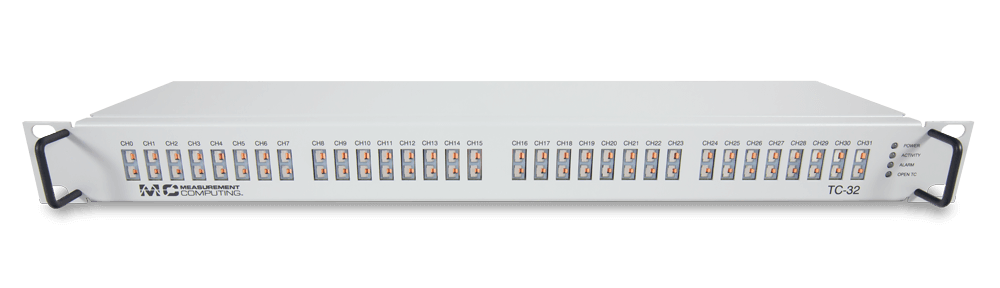

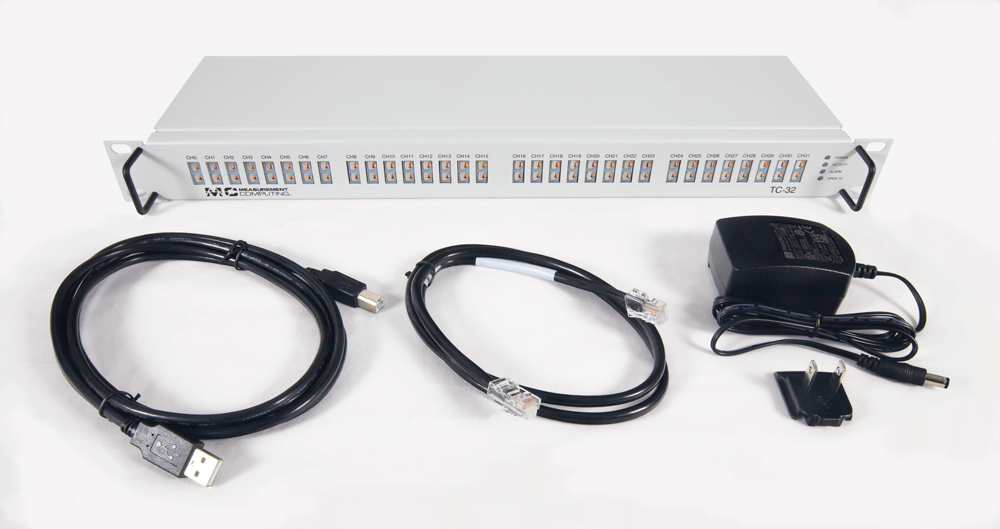

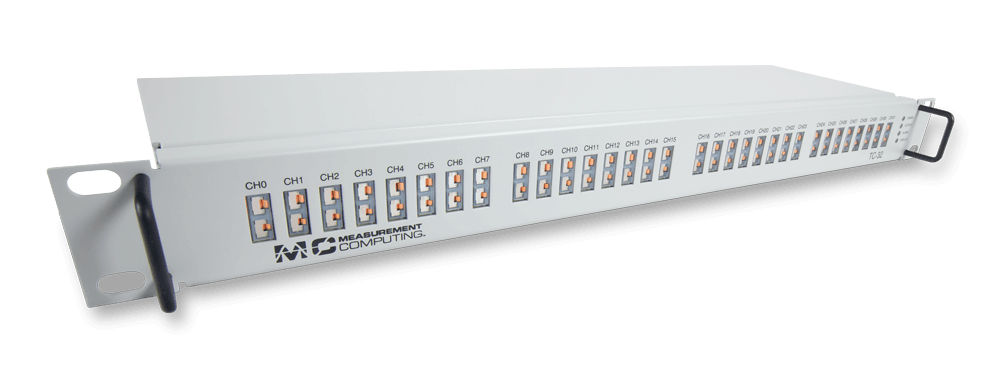

TC-32, Thermocouple Measurement, 32CH

Description

The TC-32 is a high-precision thermocouple measurement system with both USB and Ethernet interfaces, ideal for high-channel-count temperature applications. It's expandable to 64 channels using the TC-32-EXP module and can be rack-mounted.

• 32 thermocouple inputs and 40 digital I/O (64 inputs / 80 digital I/O with TC-32-EXP)
• 24-bit resolution, 3 S/s/ch sample rate
• Supports thermocouple types J, K, R, S, T, N, E, and B
• USB and Ethernet interfaces

Includes free DAQami software for data logging and signal generation, plus drivers for Visual C++, C#, VB.NET, DASYLab, LabVIEW, Linux, and Python.

Shipping & Compliance Details

• Country of Origin: HU
• HTS Code: 8471809000
• RoHS Compliant: Yes
