Sound Phidget
Sound Phidget
Share
Measure sound from 34 to 102 dB (SPL). Supports A and C weightings, and can split data into distinct frequency bands.

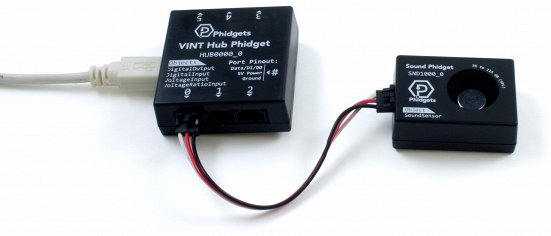

Measure sound pressure level of a room or an environment with this neat little Phidget that plugs into a VINT port (See the Connection & Compatibility tab for a list of VINT Hubs). You could also use it to detect the occurance of sudden noises. The sensor returns data in dB (SPL), which is decibels relative to the quietest noise a human can hear.
Pre-weighted Data
The Sound Phidget also reports data in dBA (SPL) and dBC (SPL). These are special standardized weightings of the frequency range created for specific purposes. For example, dBA puts less emphasis on lower frequencies that the human ear doesn't pick up, making it ideal for measuring loudness as heard by your ear.
Frequency Analysis
This Phidget is also capable of analyzing specific frequency bands of sound. Every time data is sent to your program, an array of 10 values will be sent, each one corresponding to a different frequency band ranging from 31.5 Hz to 16kHz cente
Specifications
Board Properties | |
---|---|
Controlled By | VINT |
Sensor Properties | |
Sound Level Min | * 34 dB |
Sound Level Max | 102 dB |
Sampling Interval Max | 1000 ms/sample |
Sampling Interval Min | 100 ms/sample |
Electrical Properties | |
Current Consumption Max | 26 mA |
Current Consumption Min | (unconfigured) 16 μA |
Physical Properties | |
Operating Temperature Min | -20 °C |
Operating Temperature Max | 70 °C |
Note: Below 34 dB, the sensor will be picking up white noise.
