SparkFun Thing Plus - RP2040

Description

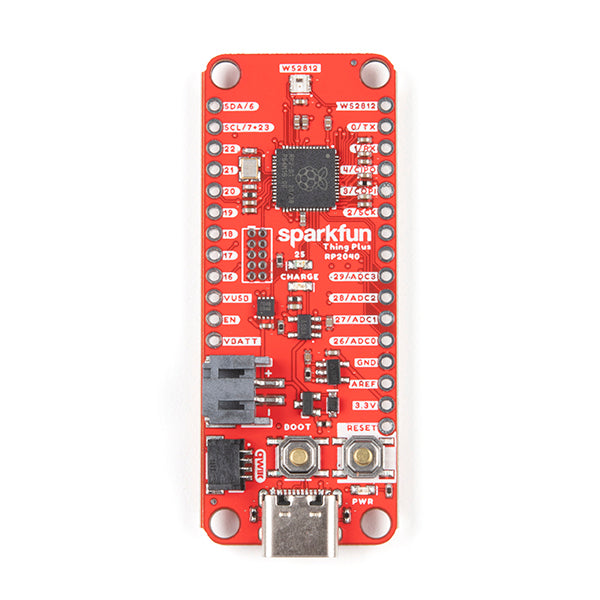

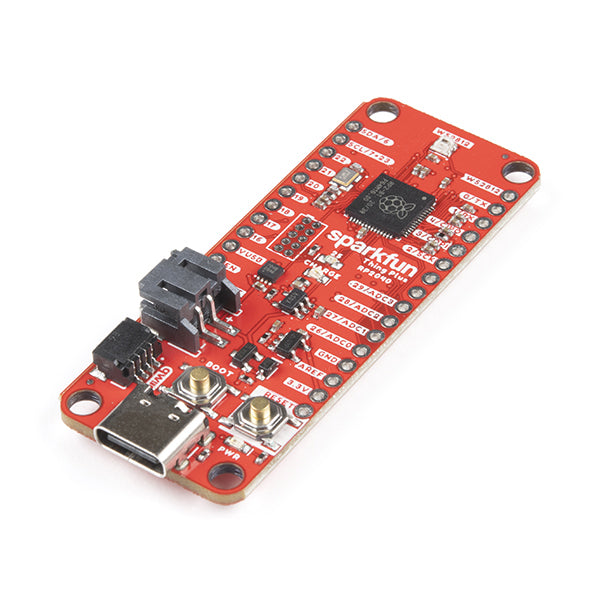

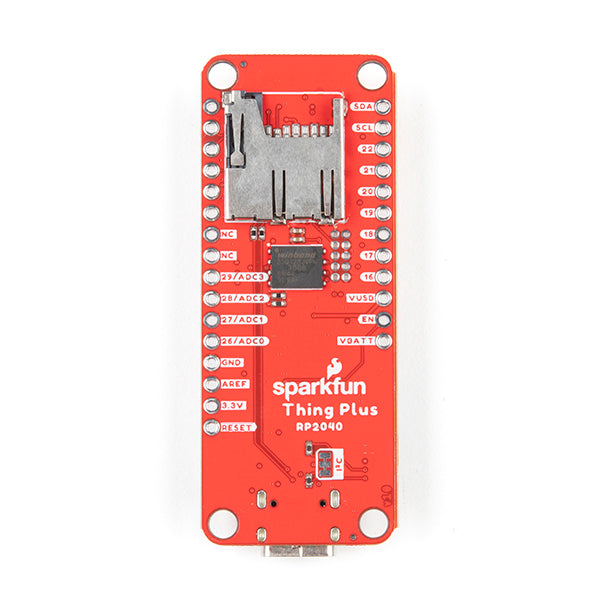

The SparkFun Thing Plus - RP2040 is a low-cost, high performance board with flexible digital interfaces featuring the Raspberry Pi Foundation's RP2040 microcontroller. Besides the Thing Plus or Feather footprint (with 18 GPIO pins), the board also includes an SD card slot, 16MB (128Mbit) flash memory, a JST single cell battery connector (with a charging circuit and fuel gauge sensor), an addressable WS2812 RGB LED, JTAG PTH pins, four (4-40 screw) mounting holes, and our signature Qwiic connector.

The RP2040 contains two ARM Cortex-M0+ processors (up to 133MHz) and features:

• 264kB of embedded SRAM in six banks
• 6 dedicated IO for SPI Flash (supporting XIP)
• 30 multifunction GPIO:
  • Dedicated hardware for commonly used peripherals
  • Programmable IO for extended peripheral support
  • Four 12-bit ADC channels with internal temperature sensor (up to 0.5 MSa/s)
• USB 1.1 Host/Device functionality

The RP2040 is supported with both C/C++ and MicroPython cross-platform development environments, including easy access to runtime debugging. It has UF2 boot and floating-point routines baked into the chip. While the chip has a large amount of internal RAM, the board includes an additional 16MB of external QSPI flash memory to store program code.

Features

SparkFun Thing Plus - RP2040 Features

• Raspberry Pi Foundation's RP2040 microcontroller
• 16MB QSPI Flash Memory
• JTAG PTH Pins
• Thing Plus (or Feather) Form-Factor:
  • 18[1]x Multifunctional GPIO Pins[2]
    • Four available 12-bit ADC channels with internal temperature sensor (500kSa/s)
    • Up to eight 2-channel PWM
    • Up to two UARTs
    • Up to two I2C buses
    • Up to two SPI buses
• USB-C Connector:
  • USB 1.1 Host/Device functionality
• 2-pin JST Connector for a LiPo Battery (not included):
  • 500mA charging circuit
• Qwiic Connector
• Buttons:
  • Boot
  • Reset
• LEDs:
  • PWR - Red 3.3V power indicator
  • CHG - Yellow battery charging indicator
  • 25 - Blue status/test LED (GPIO 25)
  • WS2812 - Addressable RGB LED (GPIO 08)
• Four Mounting Holes:
  • 4-40 screw compatible

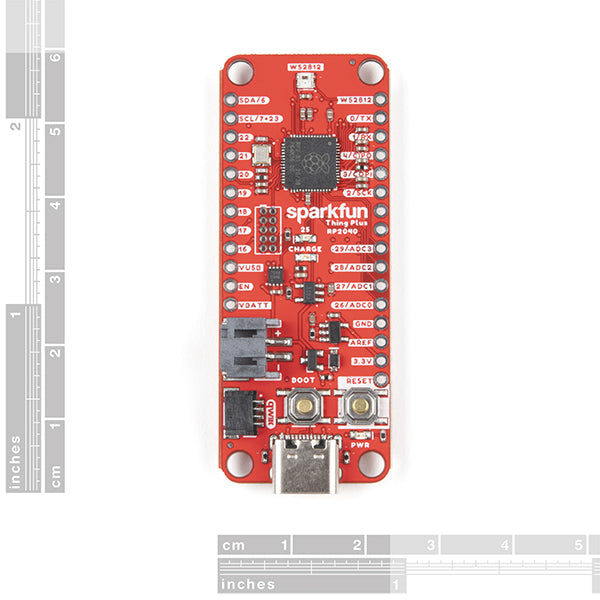

• Dimensions: 2.3" x 0.9"

RP2040 General Features:

• Dual Cortex M0+ processors, up to 133 MHz
• 264 kB of embedded SRAM in 6 banks
• 6 dedicated IO for QSPI flash, supporting execute in place (XIP)
• 30 programmable IO for extended peripheral support
• SWD interface
• Timer with 4 alarms
• Real time counter (RTC)
• USB 1.1 Host/Device functionality
• Supported programming languages
  • MicroPython
  • C/C++
