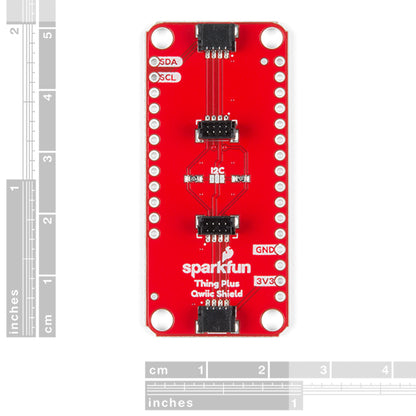

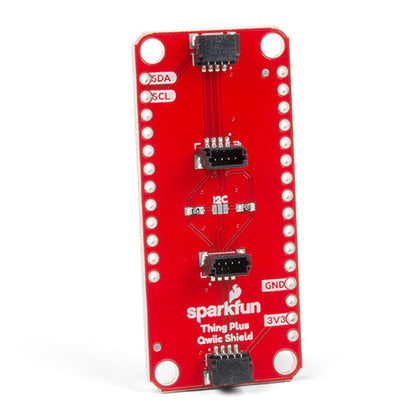

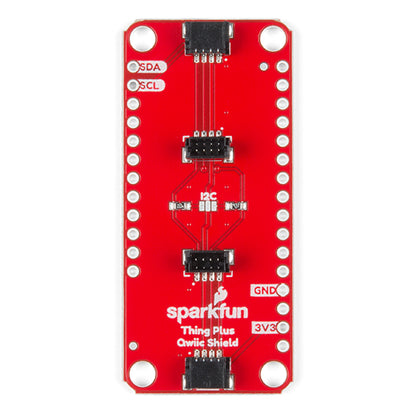

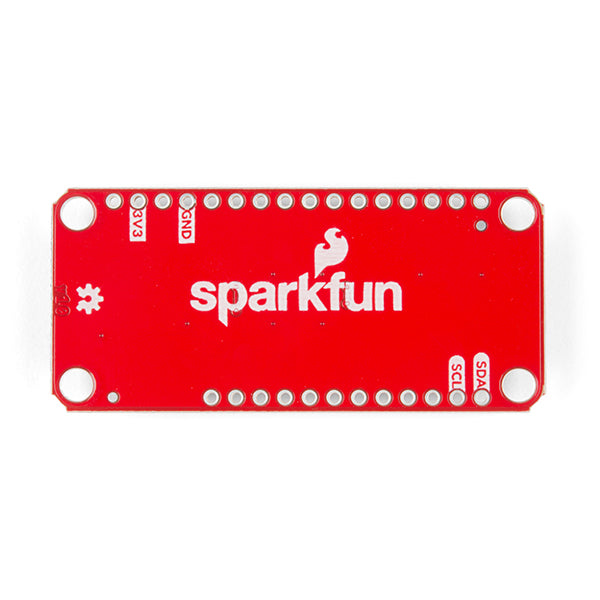

SparkFun Qwiic Shield for Thing Plus

The SparkFun Qwiic Shield for Thing Plus provides you with a quick and easy way to enter into SparkFun's Qwiic ecosystem with your Thing Plus or Feather boards. Since the Thing Plus and Feather footprints are interchangable, you can use this shield with any Arduino development board that uses the two! This shield connects the I2C bus (GND, 3.3V, SDA, and SCL) on your Thing Plus to four SparkFun Qwiic connectors (two horizontally and two vertically mounted). The Qwiic ecosystem allows for easy daisy chaining so, as long as your devices are on different addresses, you can connect as many Qwiic devices as you'd like.

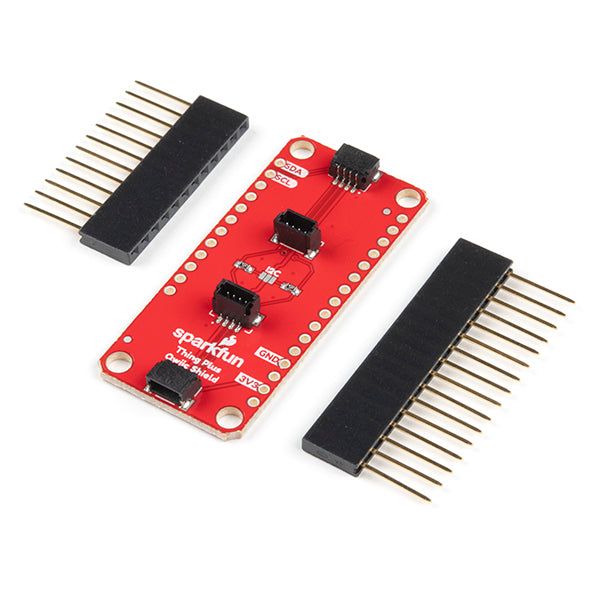

The Qwiic Shield for Thing Plus comes with one 12-pin and one 16-pin headers. You will need to solder the headers to the shield and, if necessary, to your Thing Plus or Feather board. Take care to match the markings on the Qwiic Shield to the appropriate pins on your Thing to avoid possibly damaging your boards.

Feature

• Thing Plus and Feather Footprint Compatible
• 4x Qwiic Connection Ports
• I2C Jumper
• 3.3V and GND Buses
