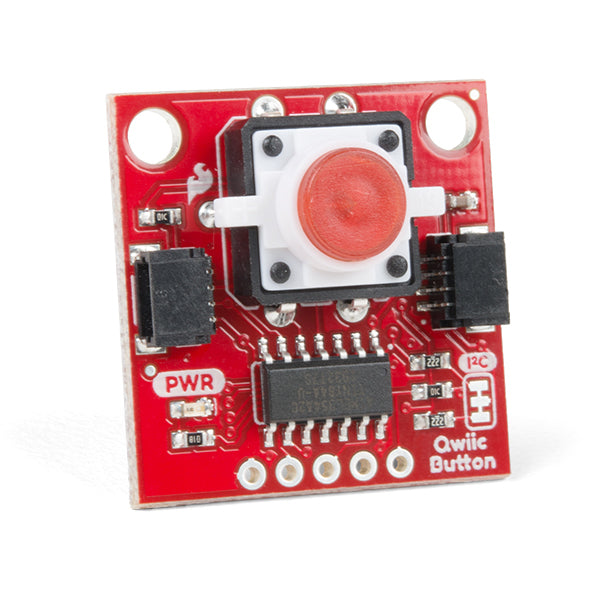

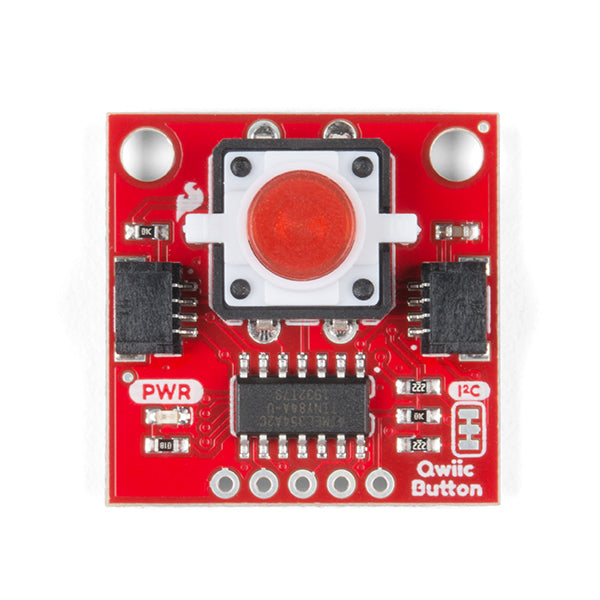

SparkFun Qwiic Button - Red LED

SparkFun Qwiic Button - Red LED

SKU:SFES-BOB-15932

Regular price Rs. 439.00
Regular price Sale price Rs. 439.00
Sale Sold out
Tax included.

Out of stock

Buttons are an easy and tactile way to interface with your project, but why would you want to deal with debouncing, polling, and wiring up pull-up resistors? The Qwiic Button with built-in red LED simplifies all of those nasty worries away into an easy to use I2C device! Utilizing our Qwiic Connect System, using the button is as simple as connecting a cable and loading up some pre-written code!

If you need multiple buttons for your project, fear not! Each button has a configurable I2C address, so you can daisy-chain multiple buttons over Qwiic and still address each one individually. We've got an example in our Arduino library that provides a super-easy way to configure your Qwiic Button to whatever I2C address you desire. You can download the library through the Arduino library manager by searching 'SparkFun Qwiic Button' or you can get the GitHub repo as a .zip file and install the library from there.

In addition to handling blinking and debouncing, the Qwiic Button has configurable interrupts that can be configured to activate upon a button press or click. We've also taken the liberty of implementing a FIFO queue onboard the Qwiic Button where it keeps an internal record of when the button was pressed. This means that code on your microcontroller need not waste valuable processing time checking the status of the button but instead can run a small function whenever the button is pressed or clicked!

Features

  • 12mm Red LED Button rated for 50mA
  • Built in LED can be configured for your desired level of blinkiness!

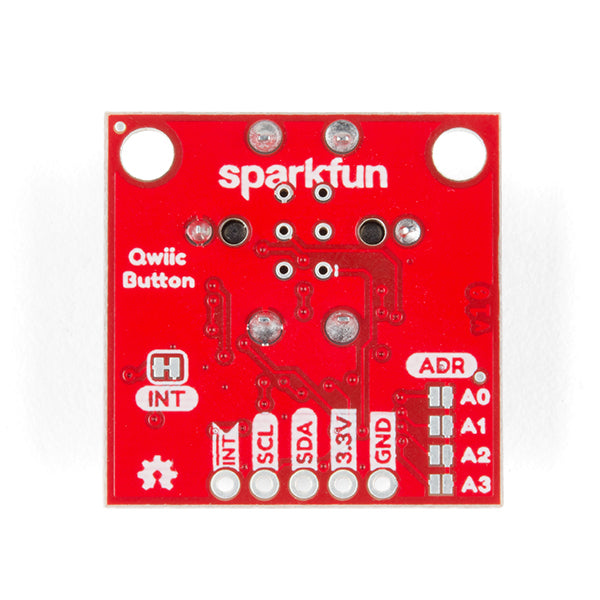

  • Each button has a configurable I2C address
  • Configurable interrupts
  • FIFO queue
  • Don't like the color red?
    • Red LED Tactile Button
    • Blue LED Tactile Button
    • Green LED Tactile Button
    • White LED Tactile Button
