SparkFun Electronics

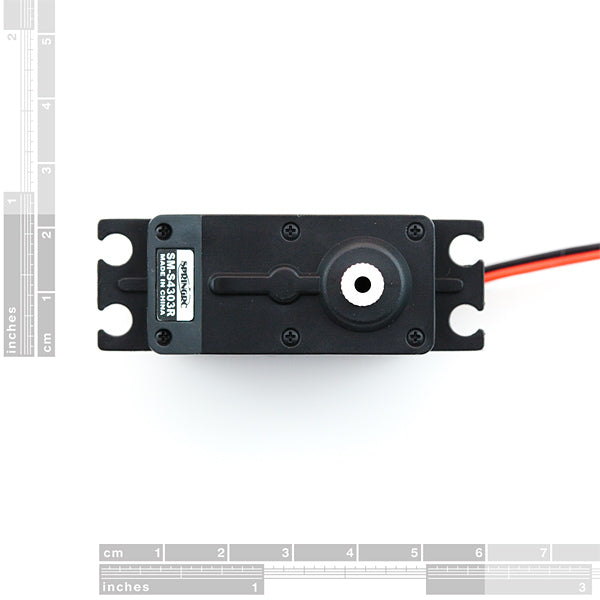

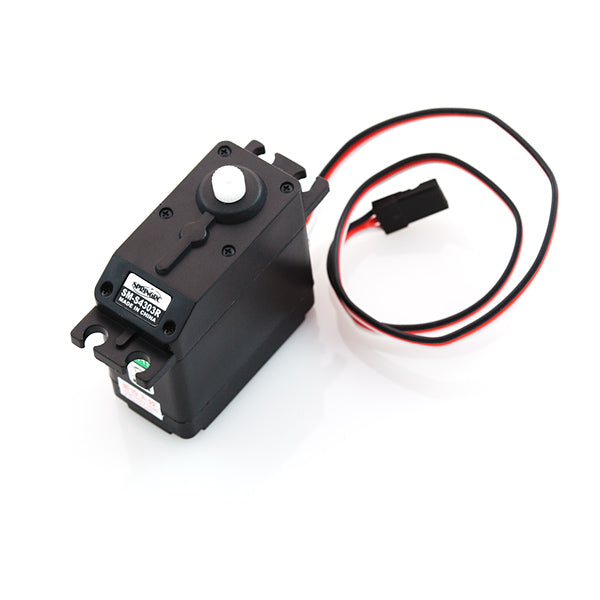

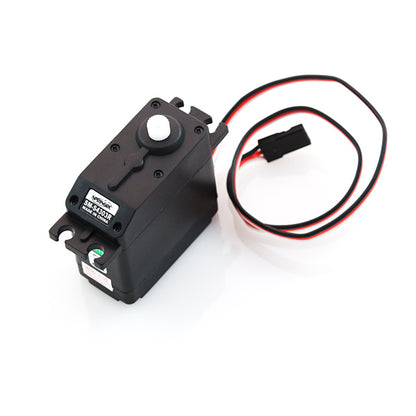

Servo - Generic High Torque Continuous Rotation (Standard Size)

Servo - Generic High Torque Continuous Rotation (Standard Size)

SKU:SFE-ROB-09347

Regular price Rs. 1,389.00
Regular price Sale price Rs. 1,389.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Here, for all your mechatronic needs, is a simple, high quality continuous rotation servo motor. This servo is able to take in 6 volts and deliver 66.7 oz-in. of maximum torque at 70 r/min.

A standard 3-pin power and control cable is attached and all hardware listed below is included.

Features:

  • Voltage: 4.8-6.0 Volts
  • Torque: 45.8/66.7 oz-in. (4.8/6.0V)
  • Speed: 60/70 r/min (4.8/6.0V)
  • Rotation: 360°
  • Dual Ball Bearing
  • 4 Plastic Gears + 1 Metal Gear
  • 25T Spline

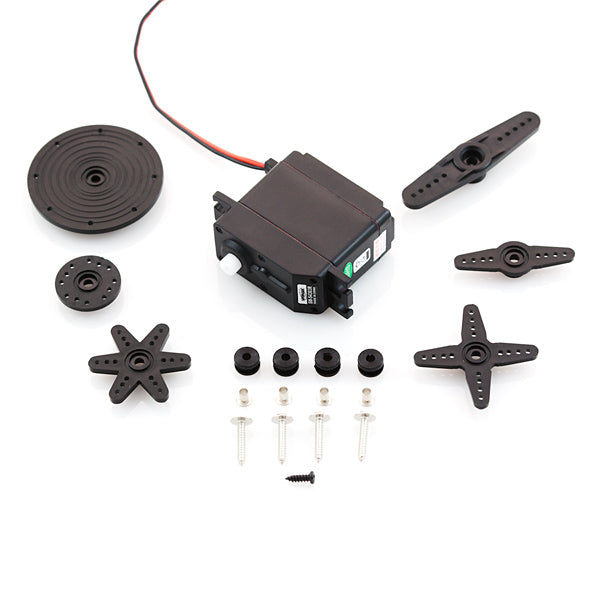

Includes:

  • 1x SM-S4303R High Torque Continuous Rotation Servo
  • 1x Mounting Screw
  • 1x Four Point Horn
  • 1x Six Point Horn
  • 2x Double Arm Horn (1x Large, 1x Medium)
  • 2x Circle Horn (1x Large, 1x Medium)
  • 4x Rubber Grommets
  • 4x 2x15mm Phillips Screw
  • 4x Brass Eyelets

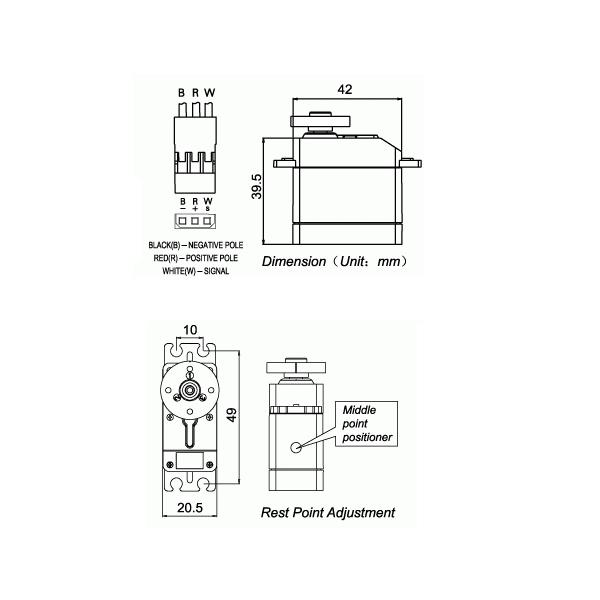

Dimensions:

  • Rest point adjustment* 42 x 39.5 x 22.5mm
  • Wire length: 300mm
