SparkFun Electronics

Helium Ethernet Starter Kit (Arduino)

Helium Ethernet Starter Kit (Arduino)


Regular price Rs. 19,209.00
Regular price Sale price Rs. 19,209.00
Sale Sold out
Tax included.

1 in stock

The Helium Ethernet Starter Kit for Arduino includes everything needed to easily give your embedded devices secure, long-range connectivity. This kit was built specifically for Arduino and mbed development boards to get them set up and ready for wireless and IoT applications!

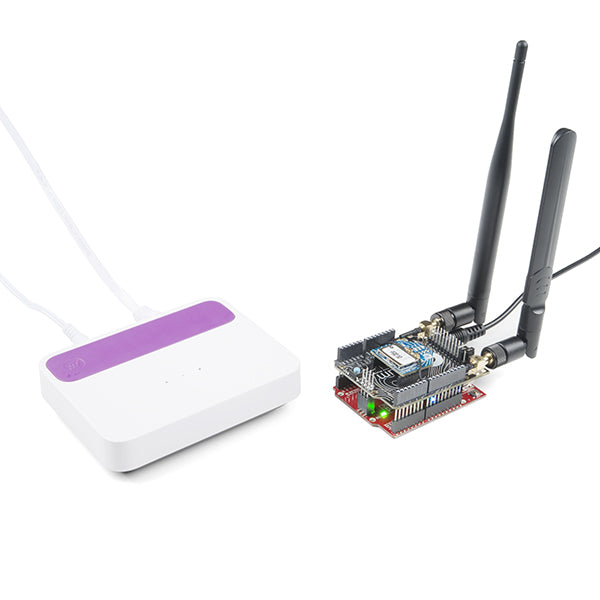

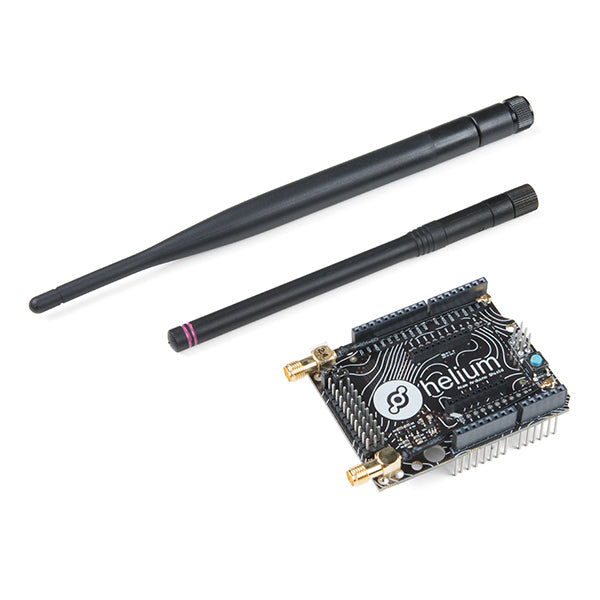

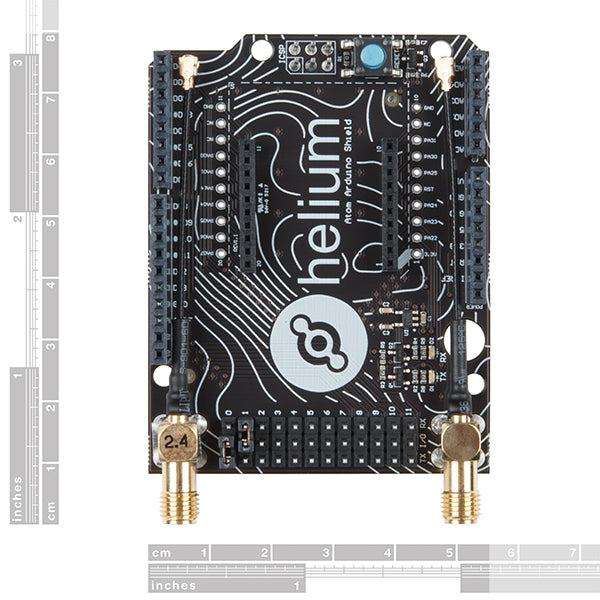

Included in this version of the Helium Ethernet Starter Kit is a Helium Arduino/mbed Adapter, a shield with two SMA connectors and an Atom socket — all in an R3 layout. You also receive one 2.4GHz and one Sub-GHz antenna, a Helium Atom Prototyping Module and a Helium Element Access Point for Ethernet connectivity with an Ethernet cable and power adapter. The only thing you need to supply yourself is an Arduino development board (like SparkFun RedBoard or an Arduino Uno R3) and a way to power it!

Since Helium is a complete toolkit for building IoT applications that can connect to public clouds, a pre-built, secure connection from Atom modules interacts with what are called Helium Channels. Channels are a convenience layer between sensors and your organization’s cloud of choice that can connect to public clouds like Amazon Web Services, Azure, Google Cloud IoT Core or a private offering. Channels can also be used to send device data to applications and services via generic protocols like HTTP and MQTT.

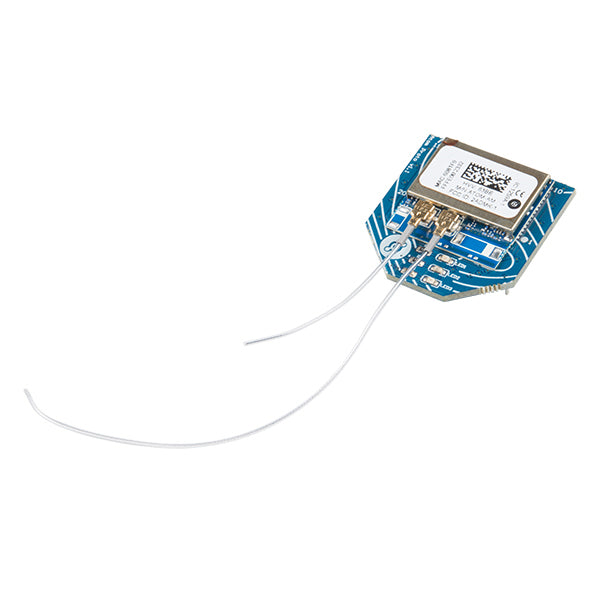

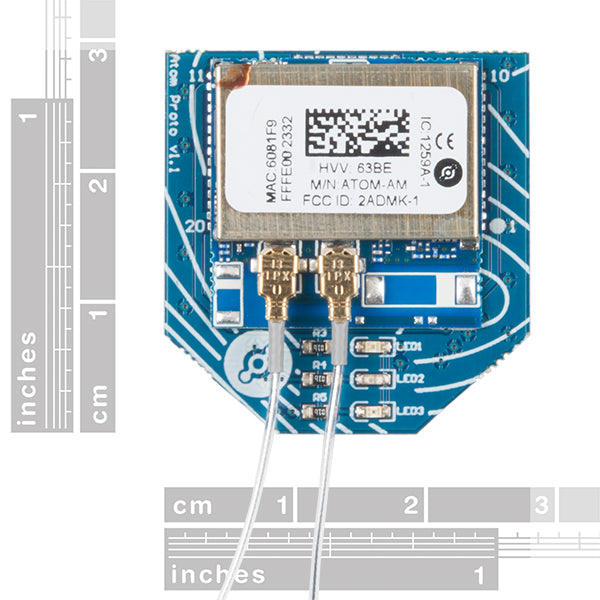

The Helium Atom Prototyping Module is a low-power, dual-band wireless module perfect for developers. The pin layout is compatible with many existing embedded devices. Atom devices connect to the nearest Element Access Point using Helium’s wireless technology, which allows those boards to communicate long distances with little interference and requiring no device-level configuration. Don’t worry; each Element Access Point can support multiple Atoms.


  • 1x Helium Arduino/mbed Adapter Shield
  • 1x Helium Atom Prototyping Module
  • 1x Helium Element Access Point (Ethernet)
  • 1x 2.4 GHz SMA Antenna
  • 1x Sub-GHz SMA Antenna
  • 1x CAT6 Ethernet Cable — 3ft
  • 1x Element Access Point Power Adapter


  • Helium Atom:
    • Networking Standards: IEEE 802.15.4
    • Wireless Connectivity: 802.15.4 IEEE Standard on dual-band radios
      • 915 MHz & 2.4GHz (U.S.)
      • 868 MHz & 2.4GHz (E.U.)
    • Security: Hardware-based encryption, authentication and authorization
    • Operating Temperature: -40° to 185°F (-40° to 85°C)
    • Certifications: FCC ID: 2ADMK-1 & IC ID: 12590A-1
    • Voltage Range: 2.0V to 3.6V (3.3V typical; 2.4V recommended minimum for full TX power at 915MHz)
    • Dimensions: 1.06" (27mm) x 1.1" (28mm)
  • Element Access Point:
    • Networking Standards: IEEE 802.15.4
    • Typical operating range: 4500 square feet or several miles within line of sight
    • Wireless Connectivity: 802.15.4 IEEE Standard on dual-band radios
      • 915MHz & 2.4GHz (U.S.)
      • 868MHz & 2.4GHz (E.U.)
    • Security: Hardware-based encryption, authentication and authorization
    • Power Options: Line powered with included AC adapter or power over Ethernet
    • Operating Temperature: -40° to 185°F (-40° to 85°C)
    • Dimensions: 4.7" (119.4mm) x 3.5" (88.9mm) x 1.1" (27.9mm)
