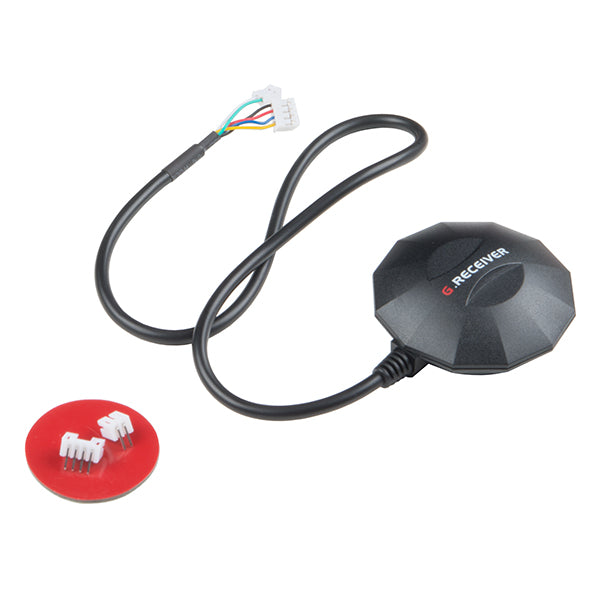

GPS Mouse - GP-808G (72 Channel)

The GPS Mouse is a self contained module perfect for UAV and autonomous vehicle enthusiasts. The The GP-808G inside the Mouse is a highly sensitive GPS module that can accurately provide position, velocity, and time readings. This module is highly accurate and easy to use, requires almost no set-up time, and is very easy to embed into your projects!

This 72-channel GPS receiver, that supports a standard NMEA-0183 and uBlox 8 protocol, has low power consumption of 40mA@3.3V-5.0V, GPS/QZSS/GLONASS support, and -167dBm tracking sensitivity. The GP-808G has been terminated with two two JST connectors (one 4-pin and one 2-pin) and includes their mating counterparts. The Mouse-type receiver has been a popular go-to GPS option for many of the entrants in our annual Autonomous Vehicle Competition (AVC) with great results!

Note: Though the GPS Mouse does contain an enclosed compass module, we do not currently possess any software or information on how to calibrate it for use at this time.

Includes

• 1x GPS Mouse
• 1x Mounting Pad
• 1x JST Connector Pair

Features

• Multi-satellite positioning systems support: GPS/QZSS/GLONASS
• NMEA-0183 / uBlox 8 Protocol
• Sensitivity
  • Acquisition: -148dBm
  • Tracking: -167dBm
• Low power: 40mA at continuous tracking
• SBAS (WAAS, EGNOS, MSAS) support
• Higher update rate option (default 1Hz)
• RTCM 2.3 support
• A-GPS support, OMA SUPL/3GPP TS25.171 (GSM/UMTS) compliant
• Easy to use: built-in patch antenna & 6-pin wire to board connector w/ pitch of 1.0mm
• Backup battery support for faster position fix
• Fully EMI shielded
