Triple Output LED RGB - SMD

Description

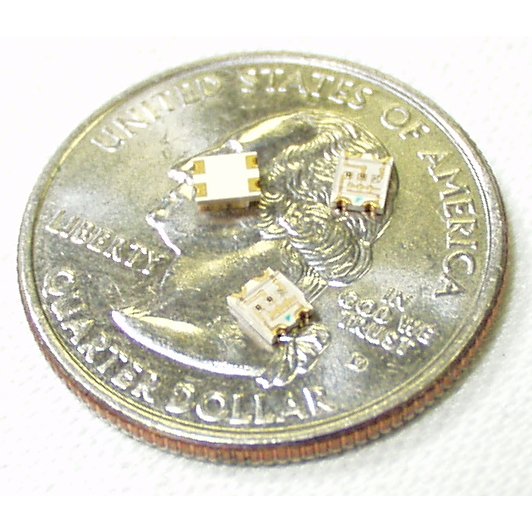

This is the very popular RGB combo but in SMD form. These units have four pads with a common anode configuration. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors! Simple breakout board available below.

Iv (Typical):

• Red: 81mcd
• Green: 130mcd
• Blue: 54mcd

Vf (Typical):

• Red: 2.0V
• Green: 3.5V
• Blue: 3.5V

Wavelength (λD - nm):

• Red: 615nm
• Green: 530nm
• Blue: 470nm
