E-Paper Breakout Board

Description

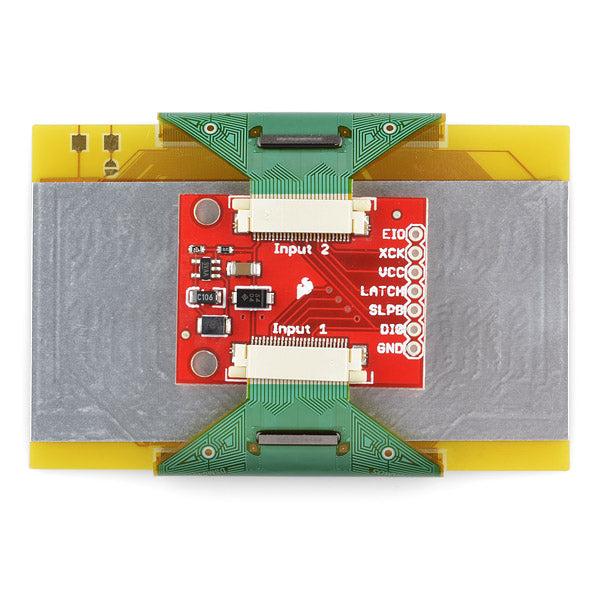

E-paper displays are rad. But those 26-pin SMD connectors can be a real pain to solder, so we put together a breakout board to help you integrate this very cool technology into your next project. This board breaks out all of the major pins from the e-paper ribbon connector to a 0.1" pitch header. Because the e-paper display requires a 35V supply, the breakout also includes a voltage step-up so that you can power the display using either 3.3V or 5V.

Note: The tab on the SMD connectors may be a different color than pictured.
