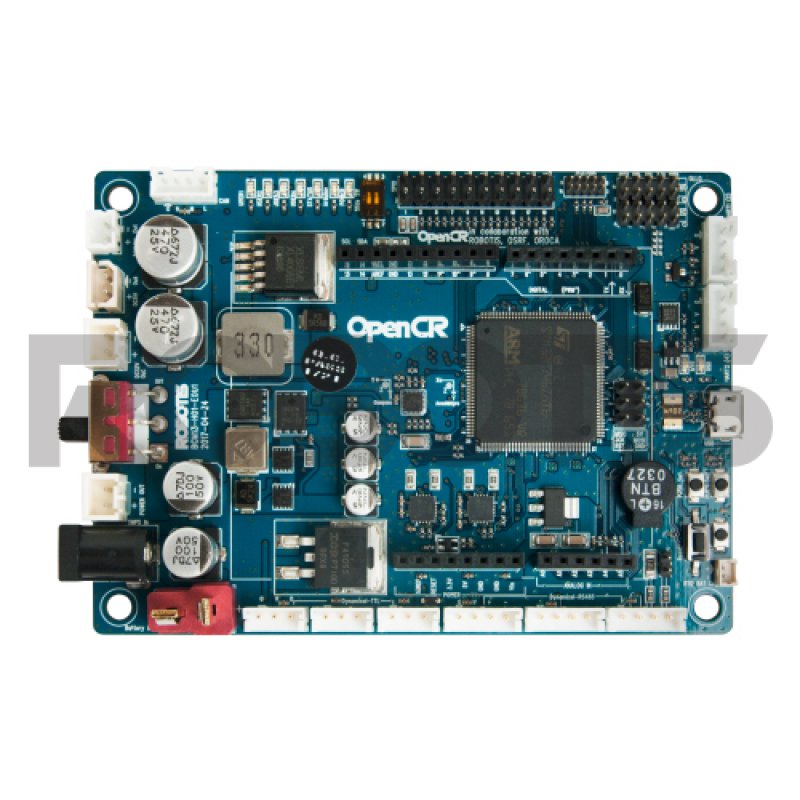

OpenCR1.0

OpenCR1.0

ROBT-903-0257-000

Rs. 24,109.00
Rs. 0.00 Rs. 24,109.00
Sale Sold out
Taxes included.

Out of stock

Features

  • OpenCR1.0 (Open-source Control module for ROS) is an open source robot controller embedded with a powerful MCU from the ARM Cortex-M7 line-up.
  • The hardware, software, schematics, PCB Gerber, BOM, and firmware source codes of the OpenCR1.0, the main controller used in the official ROS education platform TurtleBot3, are accessible and open to the public.
  • Supports RS-485 and TTL to control the Dynamixels, and offers UART, CAN and a variety of other communication environment, development tools such as Arduino IDE are available as well.
  • It has the advantage of being able to operate more powerfully when used with a host controller such as SBC (Single Board Computer).
  • It provides various exclusive sources based on ROS, so that you can maximize the functions of OpenCR1.0 when using ROS.

Package Components

OpenCR1.0 1
USB Micro B Cable 1

H/W Specifications

Microcontroller STM32F746ZGT6 / 32-bit ARM Cortex®-M7 with FPU (216MHz, 462DMIPS)
Sensors Gyroscope 3Axis, Accelerometer 3Axis, Magnetometer 3Axis (MPU9250)
Programmer ARM Cortex 10pin JTAG/SWD connector
USB Device Firmware Upgrade (DFU)
Serial
Extension pins 32 pins (L 14, R 18) *Arduino connectivity
Sensor module x 4 pins
Extension connector x 18 pins
Communication circuits USB (Micro-B USB connector/USB 2.0/Host/Peripheral/OTG)
TTL (B3B-EH-A / Dynamixel)
RS485 (B4B-EH-A / Dynamixel)
UART x 2 (20010WS-04)
CAN (20010WS-04)
LEDs and buttons LD2 (red/green) : USB communication
User LED x 4 : LD3 (red), LD4 (green), LD5 (blue)
User button x 2
Powers External input source
5 V (USB VBUS), 7-24 V (Battery or SMPS)
Default battery : LI-PO 11.1V 1,800mAh 19.98Wh
Default SMPS : 12V 5A
External output source
12V@1A(SMW250-02), 5V@4A(5267-02A), 3.3V@800mA(20010WS-02)
External battery Port for RTC (Real Time Clock) (Molex 53047-0210)
Power LED: LD1 (red, 3.3 V power on)
Reset button x 1 (for power reset of board)
Power on/off switch x 1
Dimensions 105(W) X 75(D) mm
Mass 60g

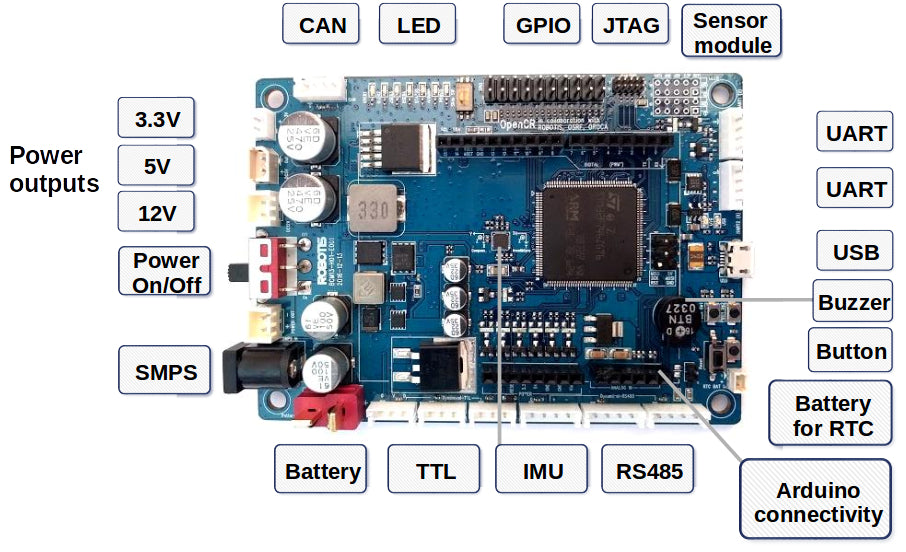

Diagram

Compatible Products

  • DYNAMIXEL X-Series
  • DYNAMIXEL AX/MX Series (Requires Molex-JST convertible cable)
  • DYNAMIXEL P-Series (Requires Molex-JST convertible cable)
  • Robotis Sensor Products
View full details
