Robotis

XD430-T210-R

XD430-T210-R

SKU:ROBT-902-0179-000

Regular price Rs. 61,859.00
Regular price Rs. 0.00 Sale price Rs. 61,859.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Features:

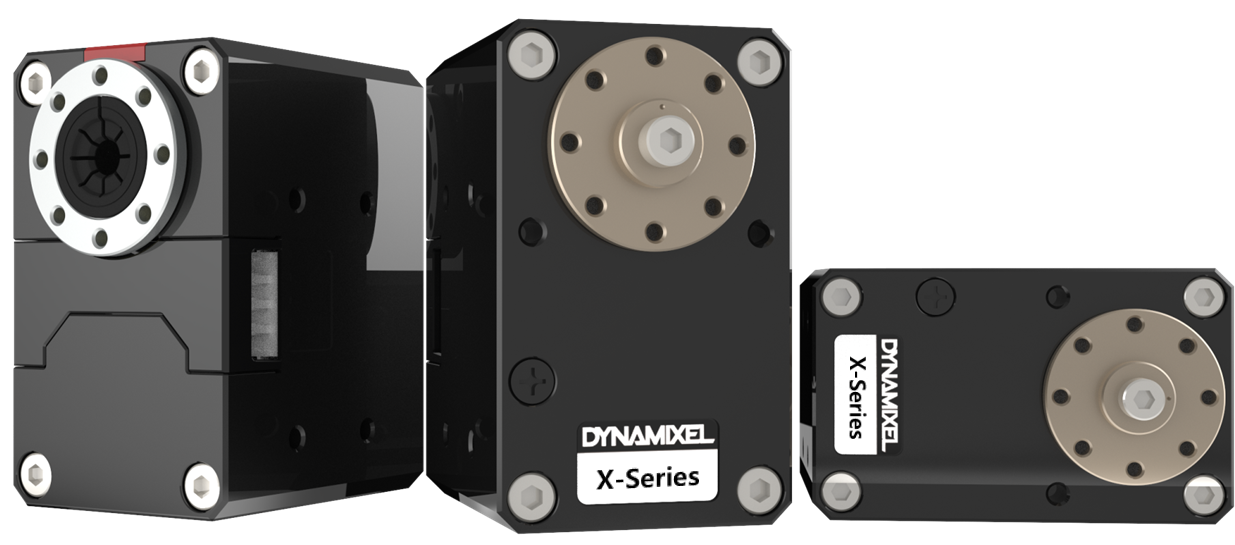

DYNAMIXEL-XD series is a high-performance lineup specially designed for industrial applications. The XD series shares an identical form factor with the XH/XM series and has long lifetime with a robust metal gear. The aluminum housing and the hollow cable assembly technique are adopted to maximize user convenience. 1. 6 Operating Modes (Torque Control, Velocity Control, Position Control, Extended Position Control, Current based Position Control, PWM Control) 2. Profile Control for Smooth Motion Planning 3. Improved Heat Dissipation with Aluminum Housing 4. Hollow Back Housing Minimizes Cable Stress (3-way-routing) 5. Easy and Simple Assembly Structure 6. Energy Efficient (Reduced Standby Current from 100mA to 40mA)

Package Components:

Item Quantity      Description
XD430-T210-R 1 DYNAMIXEL
HN12-N101 1 XD430 standard horn
Thrust Washer (for Horn Assembly) 1 Preventing friction between horn and case
Robot Cable-X4P 180mm 1                    RS485 4p Cable (JST-JST)
Robot Cable-X4P (Convertible) 180mm 1 RS485 4p Cable (MOLEX-JST)
Wrench Bolt WB M2x3 10 Cable for Dual Joints

Wrench Bolt WB M2.5x4

16                                   For frame assembly (Side hole)
Wrench Bolt WB M2.5x6 1 For horn assembly (compatible with XH430 standard horn)
Wrench Bolt WB M3x6 1 For XD430 horn assembly
Spacer Ring 8 For frame assembly

Various Cabling Methods:

Performance Comparison:

Caution:

Controller Model Controller Connector Cable

DynamixelX

Connector

Dynamixel

Communication

OpenCM+485 Expansion Board Molex (3P, 4P) Robot Cable-X3P 180mm (Convertible) JST-3P TTL
USB2Dynamixel Molex (3P, 4P) Robot Cable-X3P 180mm (Convertible) JST-3P TTL
OpenCR1.0 JST (3P, 4P) Robot Cable-X3P (by length) JST-3P TTL
U2D2 JST (3P, 4P) Robot Cable-X3P (by length) JST-3P TTL
OpenCM+485 Expansion Board Molex (3P, 4P) Robot Cable-X4P 180mm (Convertible) JST-4P RS-485
USB2Dynamixel Molex (3P, 4P) Robot Cable-X4P 180mm (Convertible) JST-4P RS-485
OpenCR1.0 JST (3P, 4P) Robot Cable-X4P (by length) JST-4P RS-485
U2D2 JST (3P, 4P) Robot Cable-X4P (by length) JST-4P RS-485





Specification:

Model Name XD430-T210-R
MCU Cortex-M3 (72 [Mhz], 32 [bit])
Input Voltage Min. [V] 10.0
Recommended [V] 12.0
Max. [V] 14.8
Performance Characteristics Voltage [V] 12.0
Stall Torque [N·m] 2.50
Stall Current [A] 1.3
No Load Speed [rpm] 50.0
No Load Current [A] 0.07
Continuous Operation Voltage [V] -
Torque [N·m] -
Speed [rpm] -
Current [A] -
Resolution Resolution [deg/pulse] 0.0879
Step [pulse/rev] 4,096
Angle [degree] 360
Position Sensor Contactless absolute encoder (12 [bit], 360 [deg])
Maker : ams(www.ams.com), Part No : AS5045
Operating Temperature Min. [°C] -5
Max. [°C] 80
Motor Coreless (Maxon)
Baud Rate Min. [bps] 9,600
Max. [bps] 4,500,000
Control Algorithm PID
Gear Type Spur
Gear Material Metal
Case Material Metal(Front, Middle)
Engineering Plastic(Back)
Dimensions (WⅹHⅹD) [mm] 28.5 X 46.5 X 34.0
Dimensions (WⅹHⅹD) [inch] 1.12 X 1.83 X 1.34
Weight [g] 85.00
Weight [oz] 2.99
Gear Ratio 212.6 : 1
Command Signal Digital Packet
Protocol Type Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity)
Link (Physical) RS485 Multi Drop Bus
ID 0 ~ 252
Feedback Position, Velocity, Current, Realtime tick, Trajectory, Temperature, Voltage, etc.
Protocol Type Protocol 1.0 Protocol 2.0(Default)
Operating Mode / Angle Current Control mode:Endless turn
Velocity Control mode:Endless turn
Position Control Mode:360 [deg]
Extended Position Control Mode:±256 [rev]
Current-based Position Control Mode:±256 [rev]
PWM Control Mode:Endless turn
Output [W] -
Standby Current [mA] 40
