XH430-W350-T

Features

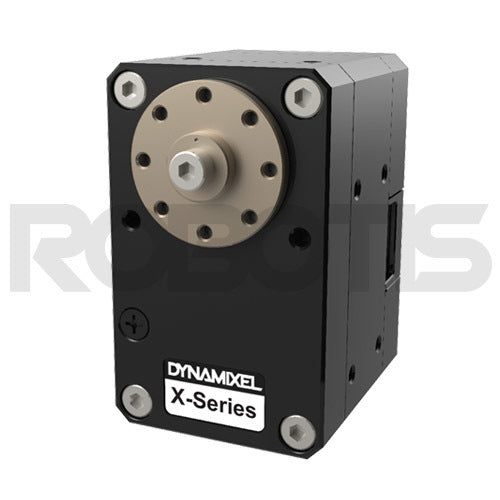

DYNAMIXEL is a robot exclusive smart actuator with fully integrated DC Motor + Reduction Gearhead + Controller + Driver + Network in one DC servo module.
The DYNAMIXEL XH / XM-Series offers a variety of control techniques based on high-performance current sensing algorithms.
It adopts the aluminum case and adopts the new technology such as the hollow cable fastening structure for users’ convenience.

1. 6 Operating Modes

Torque Control, Velocity Control, Position Control, Extended Position Control, Current based Position Control, PWM Control

2. Profile Control for Smooth Motion Planning

3. Improved Heat Sink Featuring an Aluminum Case

4. Hollow Back Case Minimizes Cable Stress (3-way-routing)

5. Direct Screw Assembly to the Case (without Nut Insert)

6. Energy Saving (Reduced Current from 100mA to 40mA)

7. 31% reduced volume compared to the previous model

Package Components

XH430-W350-T	1
HN12-N101	1
Teflon Washer (for Horn Assembly)	1
Robot Cable-X3P 180mm	1
Robot Cable-X3P (Convertible) 180mm	1
Wrench Bolt (WB M2.5*4)	16
Wrench Bolt (WB M2.5*6)	1
Wrench Bolt (WB M2*3)	10
Spacer Ring	8

Compatible Products

Controller : OpenCM 485 Expansion Board, OpenCR1.0

Interface : USB2Dynamixel, U2D2

Factory Default Settings

ID : 1

Baud Rate : 57600bps

(User can change various settings including ID and baud rate according to environment)

Various Cabling Methods

Caution

DYNAMIXEL X-Series cable assembly through hollow case

Organize the entangled cable before assembling the back case.

Do not assemble the back case with entangled cable. The entangled cable can be squashed by the case and cause communication error.

If you use two cables through the hollow case, the cables will be damaged.

Use only one cable through the hollow case.

The DYNAMIXEL X-Series adopted a new gold-plated JST connector for secure and reliable communication.

The connector used for previous Dynamixel is Molex.

To control DYNAMIXEL X-Series actuators via OpenCM or USB2Dynamixel, please use the JST-Molex Convertible Cable enclosed in the package.

However, the Molex-JST convertible cable is NOT included in the XL430 model.

Please purchase a convertible cable when using a controller and interface that supports the JST connector.

Controller Model	Controller Connector	Cable	DynamixelX Connector	Dynamixel Communication
OpenCM+485 Expansion Board	Molex (3P, 4P)	Robot Cable-X3P 180mm (Convertible)	JST-3P	TTL
USB2Dynamixel	Molex (3P, 4P)	Robot Cable-X3P 180mm (Convertible)	JST-3P	TTL
OpenCR1.0	JST (3P, 4P)	Robot Cable-X3P (by length)	JST-3P	TTL
U2D2	JST (3P, 4P)	Robot Cable-X3P (by length)	JST-3P	TTL
OpenCM+485 Expansion Board	Molex (3P, 4P)	Robot Cable-X4P 180mm (Convertible)	JST-4P	RS-485
USB2Dynamixel	Molex (3P, 4P)	Robot Cable-X4P 180mm (Convertible)	JST-4P	RS-485
OpenCR1.0	JST (3P, 4P)	Robot Cable-X4P (by length)	JST-4P	RS-485
U2D2	JST (3P, 4P)	Robot Cable-X4P (by length)	JST-4P	RS-485

Specification

Model Name		XH430-W350-T
MCU		Cortex-M3 (72 [Mhz], 32 [bit])
Input Voltage	Min. [V]	10.0
	Recommended [V]	12.0
	Max. [V]	14.8
Performance Characteristics	Voltage [V]	12.0
	Stall Torque [N·m]	3.40
	Stall Current [A]	1.3
	No Load Speed [rpm]	30.0
	No Load Current [A]	0.07
Continuous Operation	Voltage [V]	-
	Torque [N·m]	-
	Speed [rpm]	-
	Current [A]	-
Resolution	Resolution [deg/pulse]	0.0879
	Step [pulse]	4,096
	Angle [degree]	360
Position Sensor		Contactless absolute encoder (12 [bit], 360 [deg]) Maker : ams(www.ams.com), Part No : AS5045
Operating Temperature	Min. [°C]	-5
Operating Temperature	Max. [°C]	80
Motor		Coreless (Maxon)
Baud Rate	Min. [bps]	9,600
Baud Rate	Max. [bps]	4,500,000
Control Algorithm		PID
Gear Type		Spur
Gear Material		Precious Metal
Case Material		Precious Metal(Front, Middle) Engineering Plastic(Back)
Dimensions (WⅹHⅹD) [mm]		28.5 X 46.5 X 34.0
Dimensions (WⅹHⅹD) [inch]		1.12 X 1.83 X 1.34
Weight [g]		82.00
Weight [oz]		2.89
Gear Ratio		353.5 : 1
Command Signal		Digital Packet
Protocol Type		Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity)
Link (Physical)		TTL Level Multi Drop Bus
ID		0 ~ 252
Feedback		Position, Velocity, Current, Realtime tick, Trajectory, Temperature, Voltage, etc.
Protocol version		1.0 2.0(Default)
Operating Mode / Angle		Current Control mode：Endless turn Velocity Control mode：Endless turn Position Control Mode：360 [deg] Extended Position Control Mode：±256 [rev] Current-based Position Control Mode：±256 [rev] PWM Control Mode：Endless turn
Output [W]		-
Standby Current [mA]		40
