Phidgets

PT1000 4-Wire RTD 20cm

PT1000 4-Wire RTD 20cm

Phidgets-TMP4110_0

Rs. 4,609.00
Rs. 4,609.00
Sale Sold out
Taxes included.

Out of stock

Measure -50 to 500°C with this stainless steel class B PT1000 RTD probe. As an RTD this probe offers excellent accuracy and very low drift in comparison to what a thermocouple can offer.

If you need to fix it to a panel or mount it inside an enclosure, have a look at the HDW4100 - 1/8" Mounting Nut or the HDW4101 - M12 Mounting Nut.

Functional

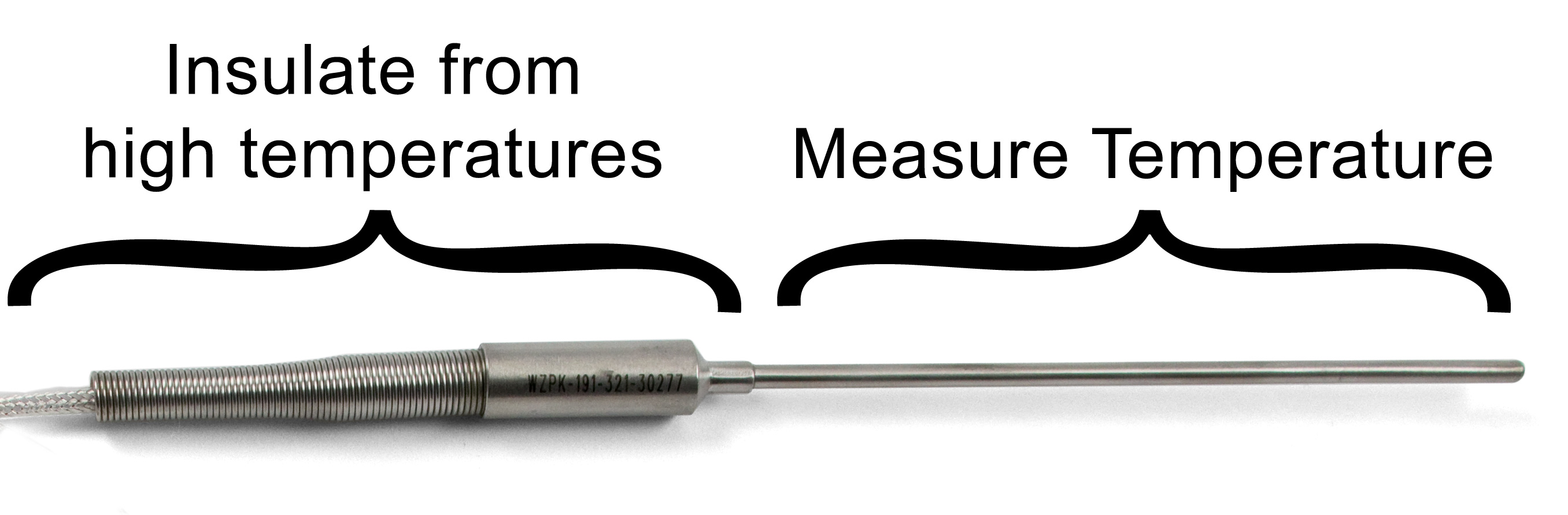

Note: While the 20cm tip of the probe can withstand up to 500°C, the wire and sheath cannot. When mounting this probe, ensure that everything beyond the tip of the probe is insulated from high temperatures in order to avoid inaccuracies or damage to the probe. Also, this RTD is not waterproof beyond the 20cm tip.

Product Specifications

Sensor Properties
Sensor Type RTD
Temperature Sensor
Ambient Temperature Min -50 °C
Ambient Temperature Max 500 °C
Class B RTD Temperature Error Max ±(0.30 + 0.005* t) °C†
Physical Properties
Cable Length 1 m
Probe Diameter 3.2 mm
Cable Diameter 3 mm
Probe Material Stainless Steel

†Where t is the measured temperature (without respect to sign).
