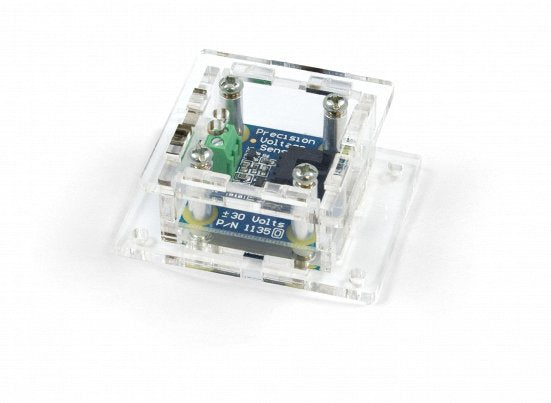

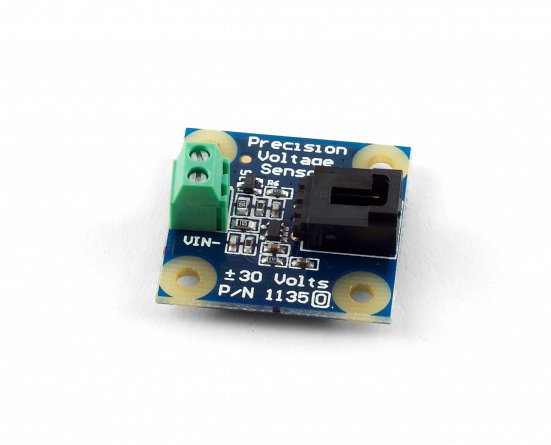

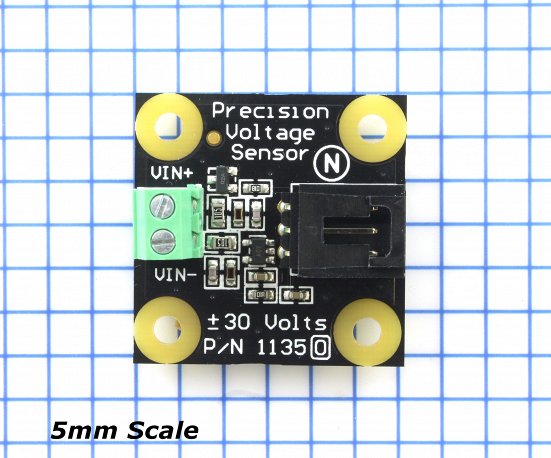

Precision Voltage Sensor
Precision Voltage Sensor
SKU:Phidgets-1135_0B
Regular price
Rs. 1,959.00
Regular price
Sale price
Rs. 1,959.00
Unit price
per
Taxes included.
2 in stock
Couldn't load pickup availability

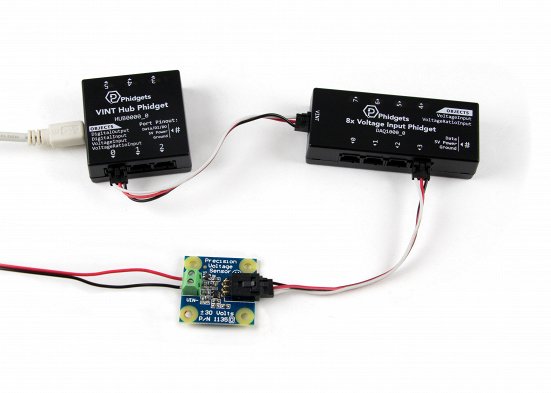

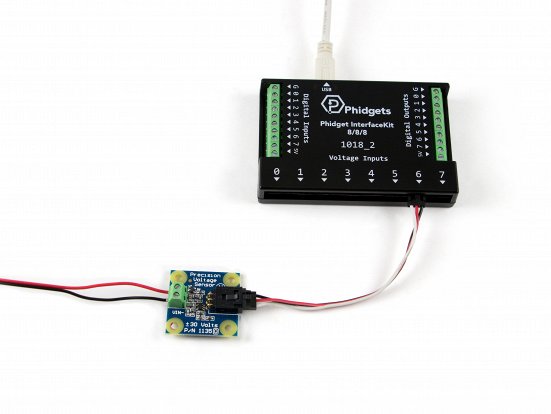

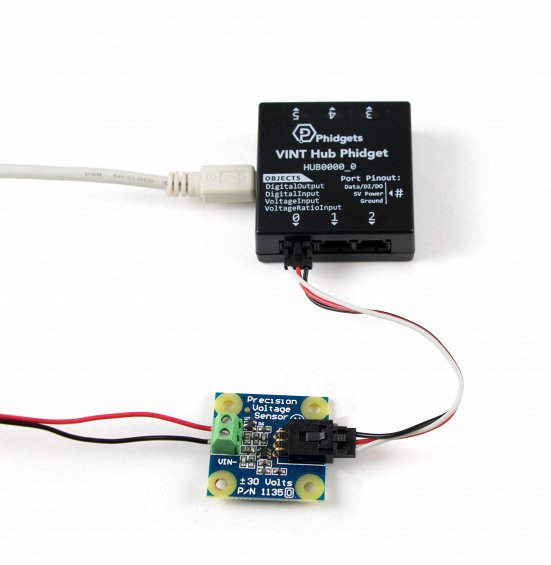

This voltage sensor measures ±30V DC and connects to an Analog Input or VINT Hub port.
The Voltage Sensor measures the differential voltage between the input terminals and outputs the difference proportionally. The maximum differential voltage that can be measured accurately is ±30V.
Product Specifications
| Sensor Properties | |
|---|---|
| Sensor Type | Voltage (DC) |
| Controlled By | Voltage Input (0-5V) |
| Sensor Output Type | Non-Ratiometric |
| Voltage Sensor | |
| Voltage Difference Max | ± 30 V DC |
| Relative Input Voltage Max | ± 40 V DC |
| Measurement Error Max | 0.5 % |
| Sensor Response Time Max | 10 ms |
| Voltage Offset Max | ± 100 mV DC |
| Electrical Properties | |
| Supply Voltage | 5 V DC |
| Current Consumption Max | 3.6 mA |
| Sensor Input Impedance | 1 MΩ |
| Output Voltage Min | 0 V DC |
| Output Voltage Max | 5 V DC |
| Physical Properties | |
| Recommended Wire Size | 16 - 26 AWG |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
-
