Wires with Pre-Crimped Terminals 10-Pack M-M 1" Blue

These premium wires are stranded 26 AWG wires with male terminals on both ends. Together with our 0.1″ crimp connector housings, these wires can be used to make custom cables with 0.1″ (2.54mm) connectors. These 1″ (2.5 cm) wires have blue insulation and ship in packs of 10.

These wires with pre-crimped terminals are equivalent to our premium jumper wires without the 1×1 crimp connector housings on the ends. By combining these wires with our crimp connector housings, you can quickly and easily create custom cables with 0.1″ (2.54 mm) connectors that mate with various 0.1″-spaced connectors, including male and female headers and solderless breadboards. Just pick the housing for the correct number of pins, pick the colors and genders for your wires, and snap them into the housings (note: it’s not easy to get the wires back out, so plan carefully!). No soldering is required!

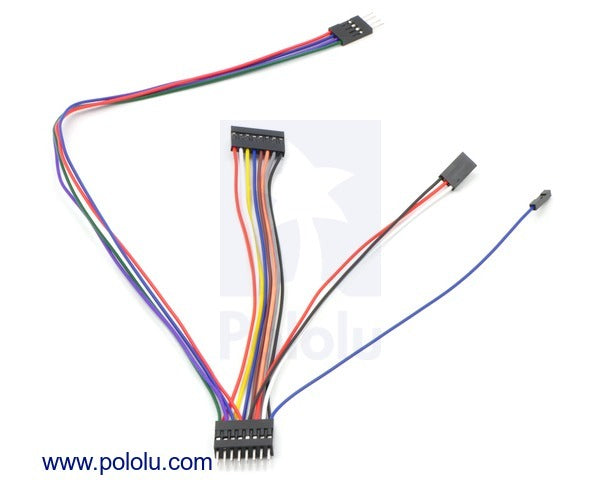

You can easily make cable harnesses or assemblies that branch from one connector on one side to multiple connectors on the other (an example of this is shown in the picture to the right); you can also cut off one pre-crimped end and solder the wires directly to components to make swapping connections easy, as shown in the motor picture below.

The wires are available in eight lengths—1″ (2.5 cm), 2″ (5 cm), 3″ (7.5 cm), 6″ (15 cm), 12″ (30 cm), 24″ (60 cm), 36″ (90 cm), and 60″ (150 cm)—and up to ten colors:

0.1" connector custom motor cable.

• black
• brown
• red
• orange
• yellow
• green
• blue
• purple
• gray
• white

These are the same colors as those used on resistor color codes and rainbow ribbon cable. The available color options and pack sizes depend on the wire length, as does the wire gauge:

Note that the single-color packs of the 1″, 2″, and 3″ wires are only available in six colors (black, red, yellow, green, blue, and white) while the single-color packs for the 6″, 12″, and 24″ wire lengths are available in all ten colors. The single-color packs for the 36″ and 60″ lengths were originally available in all ten colors, but we are transitioning to just offering them in six colors (black, red, yellow, green, blue, and white) once the remaining stock of the brown, orange, purple, and gray packs is gone. The multi-color packs of the 1″ and 2″ wires have ten each of six colors (black, red, yellow, green, blue, and white); the multi-color packs for all of the other wire lengths, including 3″, 36″, and 60″, have various quantities of all ten colors.

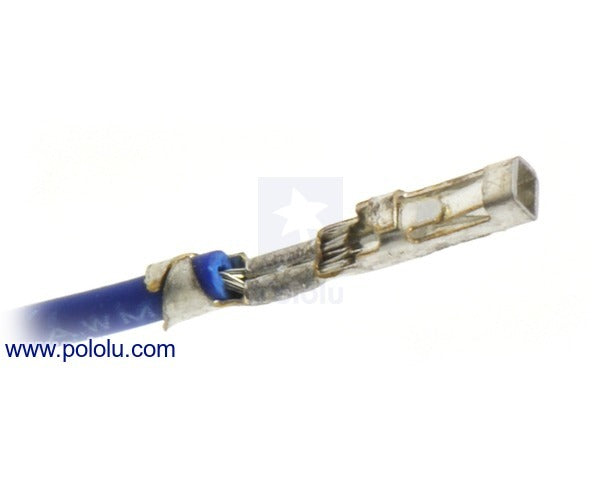

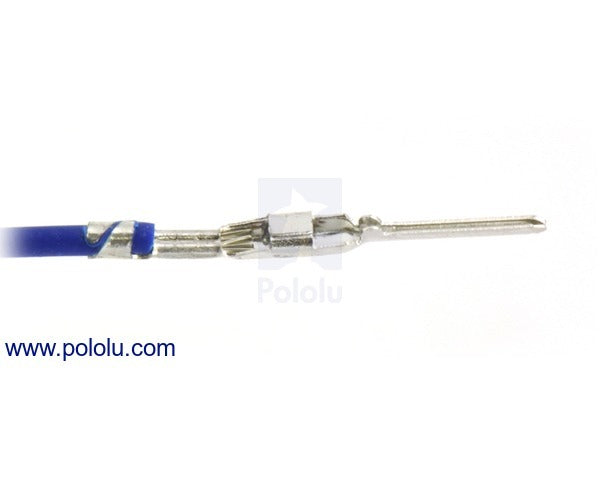

These wires can be purchased with male terminals on both ends, female terminals on both ends, or one male and one female terminals. These crimped terminals are designed for use with 0.1″ (2.54 mm) male headers and female headers, solderless breadboards, and prototyping PCBs. Note that we also sell the male and female crimp pins by themselves if you want to crimp your own wires. Close-up pictures of the male and female terminations are shown below:

Dimensions

General specifications
