298:1 Micro Metal Gearmotor HPCB 6V

These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V and 12 V HPCB motors offer the same performance at their respective nominal voltages, just with the 12 V motor drawing half the current of the 6 V motor. The 6 V HPCB and 6 V HP motors are identical except for their brushes, which only affect the lifetime of the motor.

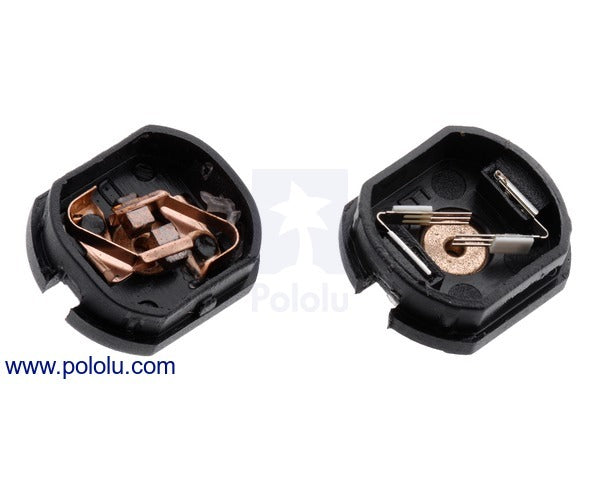

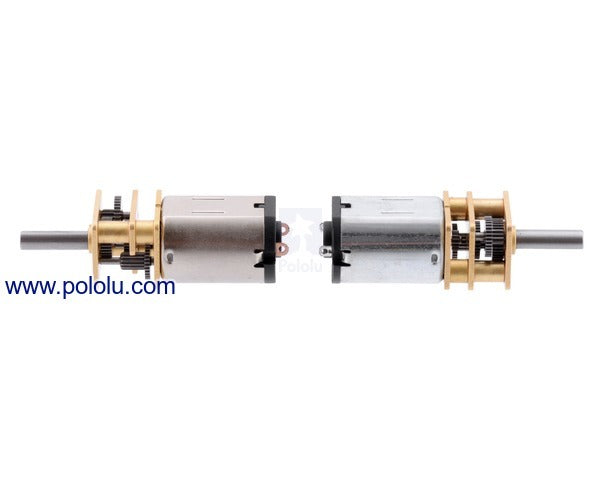

The HPCB versions (shown on the left in the picture below) can be differentiated from versions with precious metal brushes (shown on the right) by their copper-colored terminals. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).

Details for item #3069

Exact gear ratio: 25×34×37×35×3812×9×10×13×10≈297.92:125×34×37×35×3812×9×10×13×10≈297.92:1

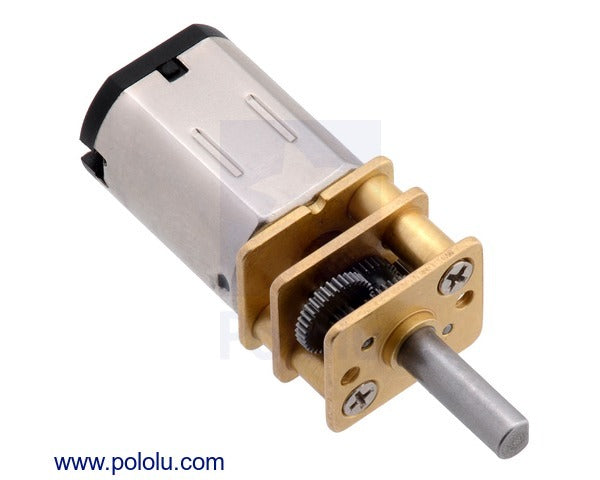

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 297.92:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.

Key specifications:

Dimensions

General specifications

Performance at maximum efficiency

Notes

1. Output shaft adds 9 mm to the 26 mm length.

2. D Shaft.
