POLOLU

A4988 Stepper Motor Driver Carrier, Black Edition (Bulk, Header Pins Soldered)

A4988 Stepper Motor Driver Carrier, Black Edition (Bulk, Header Pins Soldered)

SKU:Pololu-2986

Regular price Rs. 1,799.00
Regular price Sale price Rs. 1,799.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

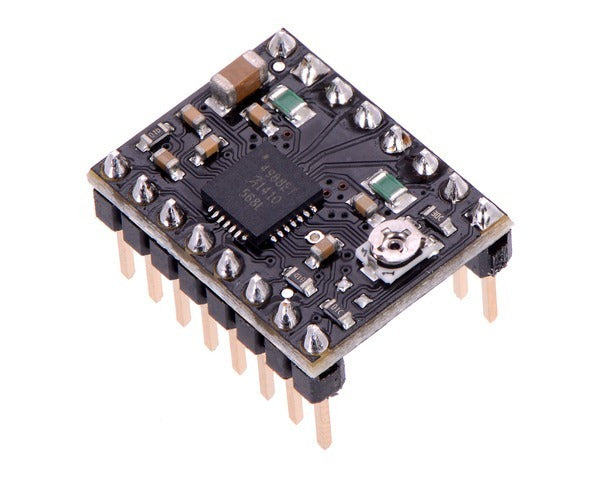

This is a bulk-packaged version of our Black Edition A4988 Stepper Motor Driver Carrier that ships with 0.1″-pitch male header pins installed as shown in the main product picture, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. Please see the Black Edition A4988 Stepper Motor Driver Carrier product page for more information about the driver.

Dimensions

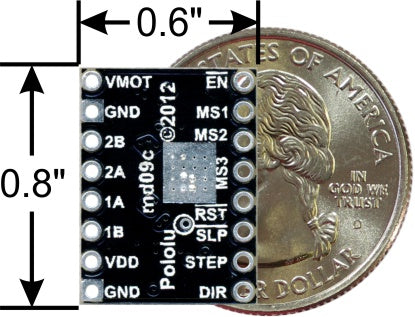

Size: 0.6″ × 0.8″

General specifications

Minimum operating voltage: 8 V
Maximum operating voltage: 35 V
Continuous current per phase: 1.2 A1
Maximum current per phase: 2 A2
Minimum logic voltage: 3 V
Maximum logic voltage: 5.5 V
Microstep resolutions: full, 1/2, 1/4, 1/8, and 1/16
Reverse voltage protection?: N
Bulk packaged?: Y
Header pins soldered?: Y

Notes:

1. Without a heat sink or forced air flow.

2. With sufficient additional cooling.
