Screw Terminal Block: 3-Pin, 3.5 mm Pitch, Side Entry (4-Pack)
Screw Terminal Block: 3-Pin, 3.5 mm Pitch, Side Entry (4-Pack)
Share
These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin and 3-pin units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 3.5 mm or 5 mm. Each terminal block is available in two orientations: side-entry and top-entry.
The following short video gives a quick overview of how to install these terminal blocks onto our boards:
Details for item #2445

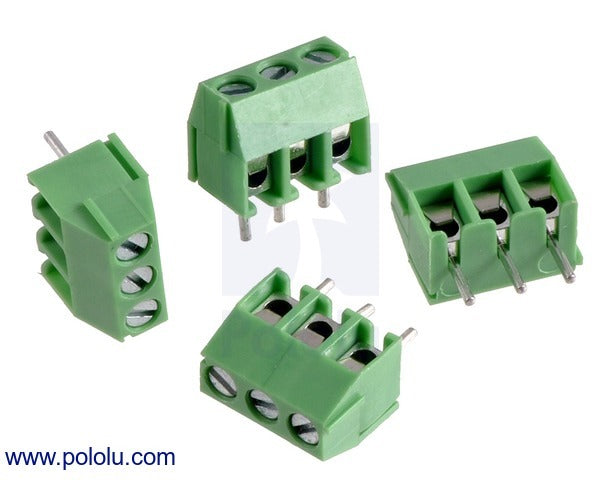

This product is a four-pack of 3.5mm-pitch, three-pin, side-entry terminal blocks. The more general dimension diagram for an XX-pin version of this screw terminal block is shown below.
Screw terminal block: 3.5 mm pitch, side entry. |
---|
- Voltage rating (UL/IEC): 125/130 V
- Current rating (UL/IEC): 10/10 A
- Contact resistance: 20 mΩ
- Wire gauge: 24-18 AWG
- Wire strip length: 5 mm
Other terminal block options
We carry several different sizes and styles of terminal blocks in addition to these stackable screw terminal blocks; the picture below shows a side-by-side comparison:

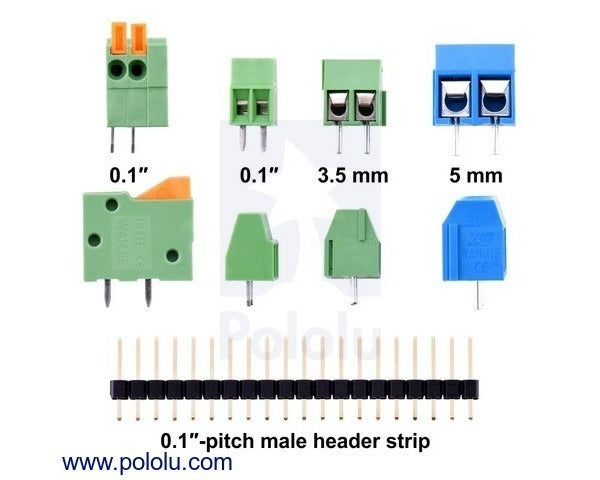

Side-by-side comparison of our different terminal blocks with a 0.1″ male header strip for size reference. From left to right: 0.1″ screwless, 0.1″ screw, 3.5 mm screw, and 5 mm screw. |
---|
Dimensions
Pins: | 3 |
---|---|
Spacing: | 3.5 mm |
General specifications
Wire gauge: | 24-18 AWG |
---|---|
Current rating: | 10 A1 |
Voltage rating: | 125 V1 |
Contact resistance: | 20 mΩ |
Wire strip length: | 5 mm |
Terminal type: | screw |
Orientation: | side entry |
Notes:
- UL rating
