POLOLU

Screw Terminal Block: 3-Pin, 5 mm Pitch, Side Entry (4-Pack)

Screw Terminal Block: 3-Pin, 5 mm Pitch, Side Entry (4-Pack)

SKU:Pololu-2441

Regular price Rs. 199.00
Regular price Sale price Rs. 199.00
Sale Sold out
Tax included.

1 in stock

These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin and 3-pin units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 3.5 mm or 5 mm. Each terminal block is available in two orientations: side-entry and top-entry.

The following short video gives a quick overview of how to install these terminal blocks onto our boards:

Details for item #2441

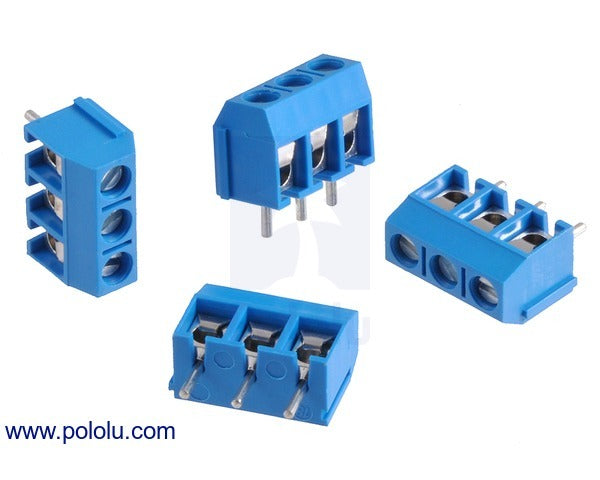

This product is a four-pack of 5mm-pitch, three-pin, side-entry terminal blocks. The more general dimension diagram for an XX-pin version of this screw terminal block is shown below.

Screw terminal block: 5 mm pitch, side entry.

  • Voltage rating (UL/IEC): 250/250 V
  • Current rating (UL/IEC): 16/24 A
  • Contact resistance: 20 mΩ
  • Wire gauge: 22-14 AWG
  • Wire strip length: 5 mm

Other terminal block options

We carry several different sizes and styles of terminal blocks in addition to these stackable screw terminal blocks; the picture below shows a side-by-side comparison:

Side-by-side comparison of our different terminal blocks with a 0.1″ male header strip for size reference. From left to right: 0.1″ screwless, 0.1″ screw, 3.5 mm screw, and 5 mm screw.

Dimensions

Pins: 3
Spacing: 5 mm

General specifications

Wire gauge: 22-14 AWG
Current rating: 16 A1
Voltage rating: 250 V1
Contact resistance: 20 mΩ
Wire strip length: 5 mm
Terminal type: screw
Orientation: side entry

Notes:

  1. UL rating
