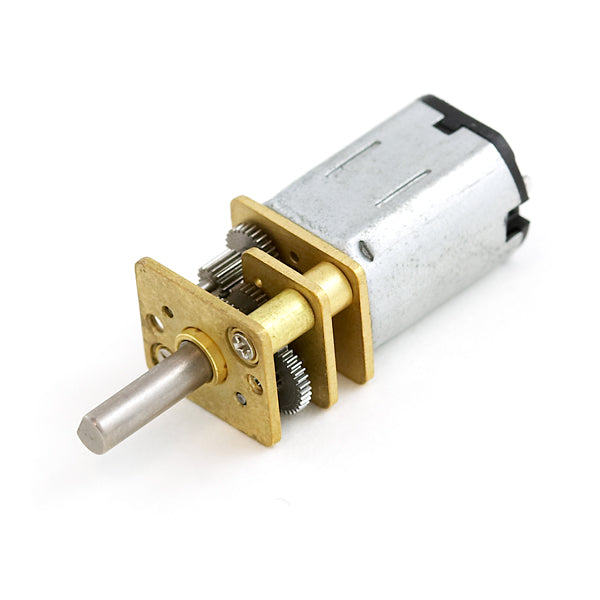

75:1 Micro Metal Gearmotor HP 6V

These tiny brushed DC gearmotors are intended for use at 6 V, though in general, these kinds of motors can run at voltages above and below this nominal voltage, so they should comfortably operate in the 3 – 9 V range (rotation can start at voltages as low as 0.5 V). Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor. The micro metal gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and offer a choice between three different motors: high-power (HP), medium-power (MP), and standard. With the exception of the 1000:1 gear ratio versions, all of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.

Gearmotor Dimensions

Micro metal gearmotor dimensions (units in mm).

The gearbox has a long (0.365" or 9.27 mm), 3 mm-diameter D-shaped metal output shaft, and the brass faceplate has two mounting holes threaded for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch). The gearmotor weighs approximately 0.35 oz (10 g). Versions with the extended motor shaft have a 1mm diameter round shaft that protrudes 4.5 mm from the rear of the motor, between the two motor terminals; this is not pictured in the above dimension diagram.

The gearbox on the 1000:1 and 1000:1 HP micro metal gearmotors is 12.5 mm long. All of the other micro metal gearmotors have 9mm-long gearboxes, as shown in the above dimension diagram.

Motor Accessories

• Wheels and Hubs: The micro metal gearmotor’s output shaft matches our assortment of Pololu wheels and theSolarbotics RW2 rubber wheel. You can also use the Pololu universal mounting hub to mount custom wheels and mechanism to the micro metal gearmotor’s output shaft.

Pololu wheel 32×7mm on a micro metal gearmotor.

Pololu wheel 42×19mm with micro metal gearmotor.

A pair of Pololu universal aluminum mounting hubs for 3 mm shaft.

Black Pololu 70×8mm wheel on a Pololu micro metal gearmotor.

Black Pololu 90×10mm wheel on a Pololu micro metal gearmotor.

Pololu 30T track set with drive sprocket mounted on a micro metal gearmotor to the left; idler sprocket is on the right.
