Female Crimp Pins for 0.1" Housings 100-Pack

These pins can be crimped on wires and snapped into our crimp connector housings to create custom cables that are compatible with standard 0.1"-pitch male and female headers and solderless breadboards. They work with 22 to 28AWG wires, though 22AWG wires with thick insulation might be difficult to fit into the pins.

Male crimp pin for 0.1" housings crimped onto a wire.

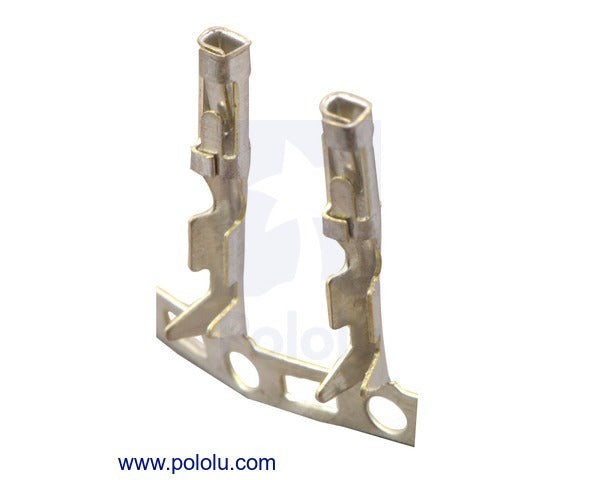

Female crimp pin for 0.1" housings crimped onto a wire.

Dimensions (in mm) of male crimp pins for 0.1" housings.

Dimensions (in mm) of female crimp pins for 0.1" housings.

These crimp pins are sold in packs of 100 and are available in male and female versions:

Male crimp pins for 0.1" housings 100-pack.

Female crimp pins for 0.1" housings 100-pack.

Note that crimping these pins on wires can be a difficult and time-consuming process without a good crimping tool (and sometimes even with a good crimping tool). Please consider our wires with pre-crimped terminals, which use these same pins, or our premium jumper wires as simpler alternatives.

Crimping tool: 0.08-0.5 mm² capacity, 20-28 AWG.

Wires with pre-crimped terminals 20-piece rainbow assortment M-F 36".

General specifications
