Pololu Universal Aluminum Mounting Hub for 5mm Shaft, #4-40 Holes (2-Pack)
Pololu Universal Aluminum Mounting Hub for 5mm Shaft, #4-40 Holes (2-Pack)
Share

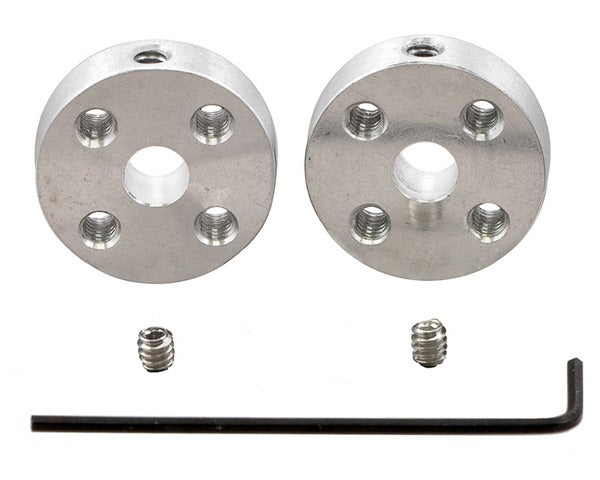

These universal aluminum mounting hubs allow you to mount custom wheels and mechanisms to 5 mm diameter motor shafts. The set includes two hubs, two #4-40 set screws for securing the hubs to motor shafts, and one 0.05″ Allen wrench for use with the set screws. Each hub has four threaded mounting holes for #4-40 screws (not included).
We have an assortment of universal mounting hubs available, spanning several shaft sizes and featuring mounting holes threaded for metric or imperial screws:
hese universal mounting hubs are designed to work with most 5 mm diameter shafts, including round shafts and “D” shafts, such as those on our stepper motors. Each of the two included hubs has four mounting holes for #4-40 screws (not included), letting you mount custom wheels or mechanisms to your motors. The two included #4-40 hex set screws (one for each hub) allow secure coupling of shaft to hub, and a 0.05″ hex wrench (often the smallest size in SAE Allen wrench sets) is included for use with the set screws. A dimension diagram of the hub is available under the resources tab.

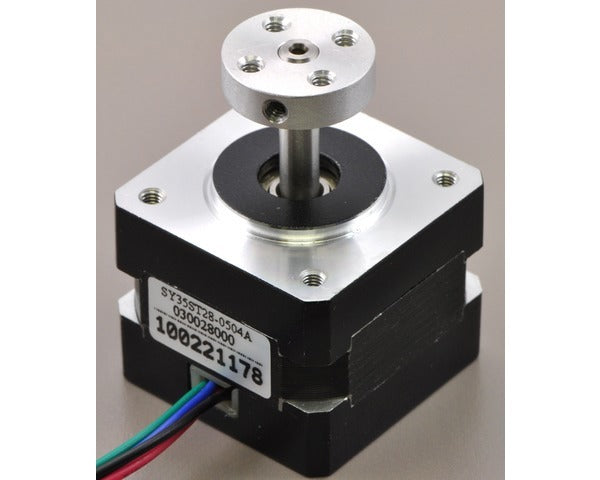

These hubs will work with most of our stepper motors (the ones with 5 mm shafts), and they also work with 60 mm, 70 mm, 80 mm, and 90 mm Pololu wheels.
Pololu wheels with 90, 80, 70, and 60mm diameters in three colors: blue, red, and yellow. |
---|
Dimensions
Size: | 19 mm diameter × 5 mm thick |
---|---|
Shaft diameter: | 5 mm |
Mounting hole size: | #4-40 |
Notes:
For a single hub only (without set screw).
