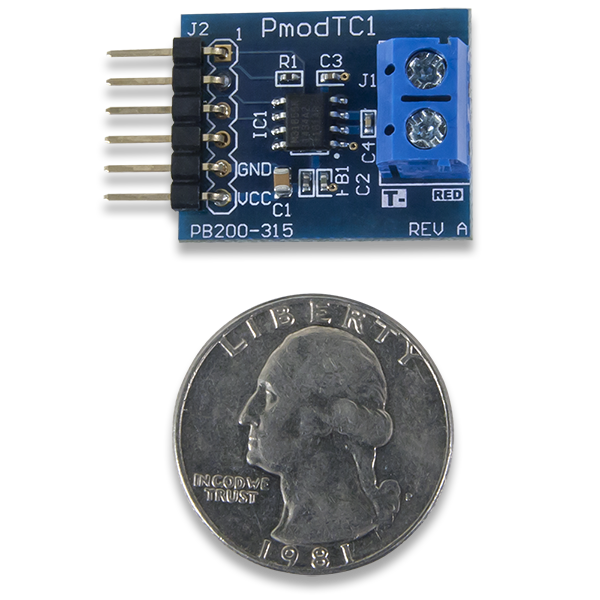

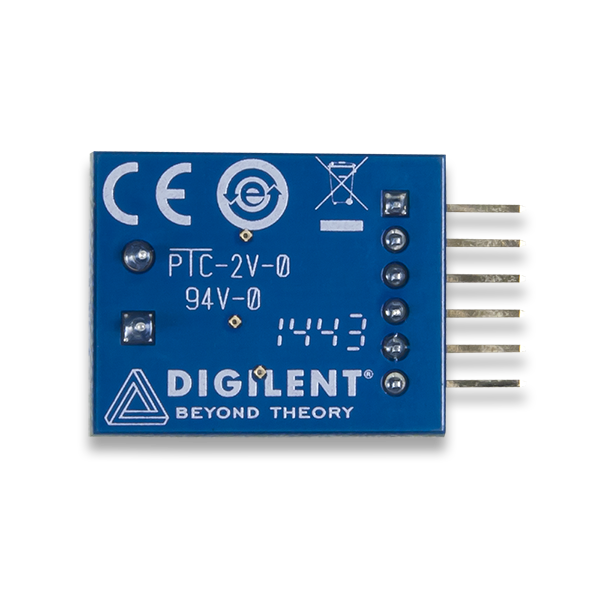

Pmod TC1: K-Type Thermocouple Module with Wire

The Digilent Pmod TC1 is a cold-junction thermocouple-to-digital converter module designed for a classic K-Type thermocouple wire. With Maxim Integrated's MAX31855, this module reports the measured temperature in 14-bits with 0.25°C resolution.

Features:

• K-type thermocouple-to-digital converter

• Wide temperature range of -73°C to 482°C with provided wire

• ±2°C accuracy from -200°C to 700°C

• 14-bit with 0.25°C resolution

• Cold-junction temperature compensation

• Small PCB size for flexible designs 1.0 in × 0.8 in (2.5 cm × 2.0 cm)

• 6-pin Pmod connector with SPI interface

• Follows Digilent Pmod Interface Specification Type 2

• Library and example code available in resource center

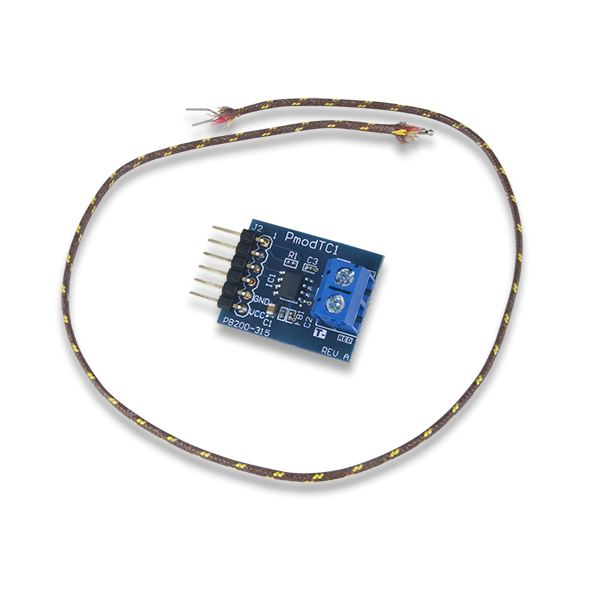

What's Included:

• Pmod TC1
• Custom antistatic Pmod packaging
• 30cm of K-type thermocouple wire with 482 °C rated insulation
