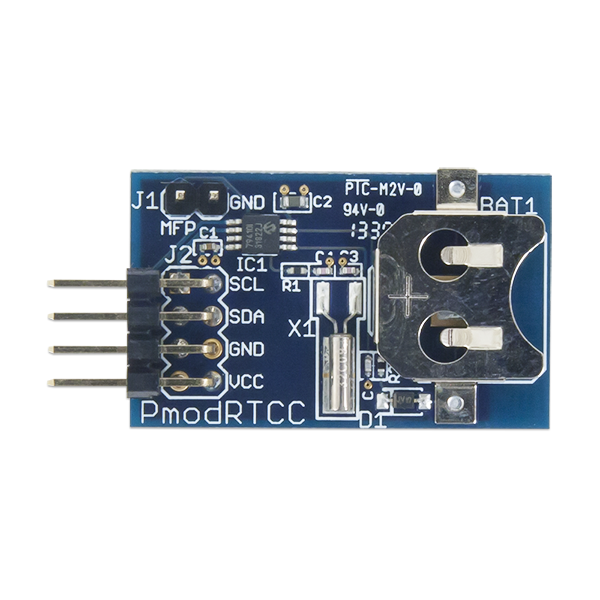

Pmod RTCC: Real-time Clock / Calendar

The Pmod RTCC is a real-time clock/calendar powered by the Microchip^® MCP79410. Through the I²C interface, users may configure up to two alarms that can be triggered at a wide variety of possible times.

Note:

The Pmod RTCC is also featured in a fantastic product bundle, the Zybo Pmod Pack! This bundle was designed to expand project possibilities by utilizing a variety of peripheral modules perfectly suited for the Zybo Zynq-7000 FPGA.

Features:

• Real-time clock/calendar with lithium coin cell back-up

• Multi-function pin output that can generate a square wave

• Two available alarms

• 128 bytes EEPROM

• 64 bytes SRAM

• Small PCB size for flexible designs 1.3“ × 0.8” (3.3 cm × 2.0 cm)

• 2×4-pin connector with I2C interface

• Follows Digilent Pmod Interface Specification

• Library and example code available in resource center

What's Included:

• Pmod RTCC
• Custom antistatic Pmod packaging
