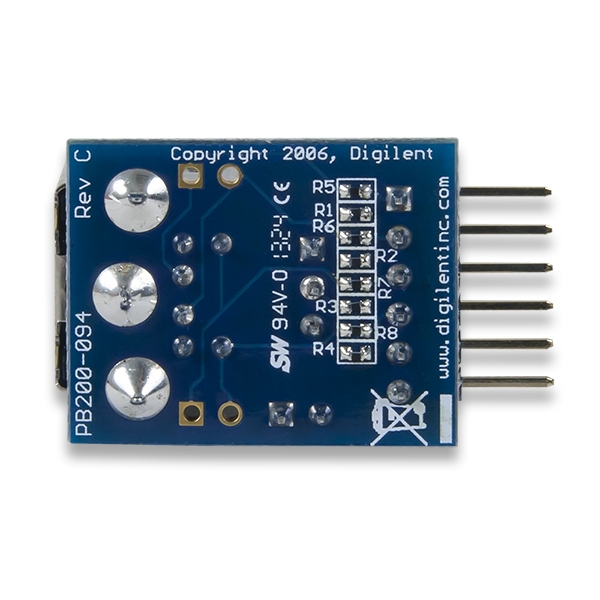

Pmod PS2: Keyboard / Mouse Connector

Description

The Pmod PS/2 is a module that allows users to interface PS/2 style mice or keyboards with their system. By supplying a clock signal to the Pmod, users can then receive the standard 11-bit words that are sent from the attached peripheral.

Features:

• Standard PS/2 port

• Jumper to allow for an external power source

• Small PCB size for flexible designs 1.0“ × 0.8” (2.5 cm × 2.0 cm)

• 6-pin Pmod connector with GPIO interface

• Follows Digilent Pmod Interface Specification Type 1

• Example code available in resource center

What's Included:

• Pmod PS/2

• Custom antistatic Pmod packaging
